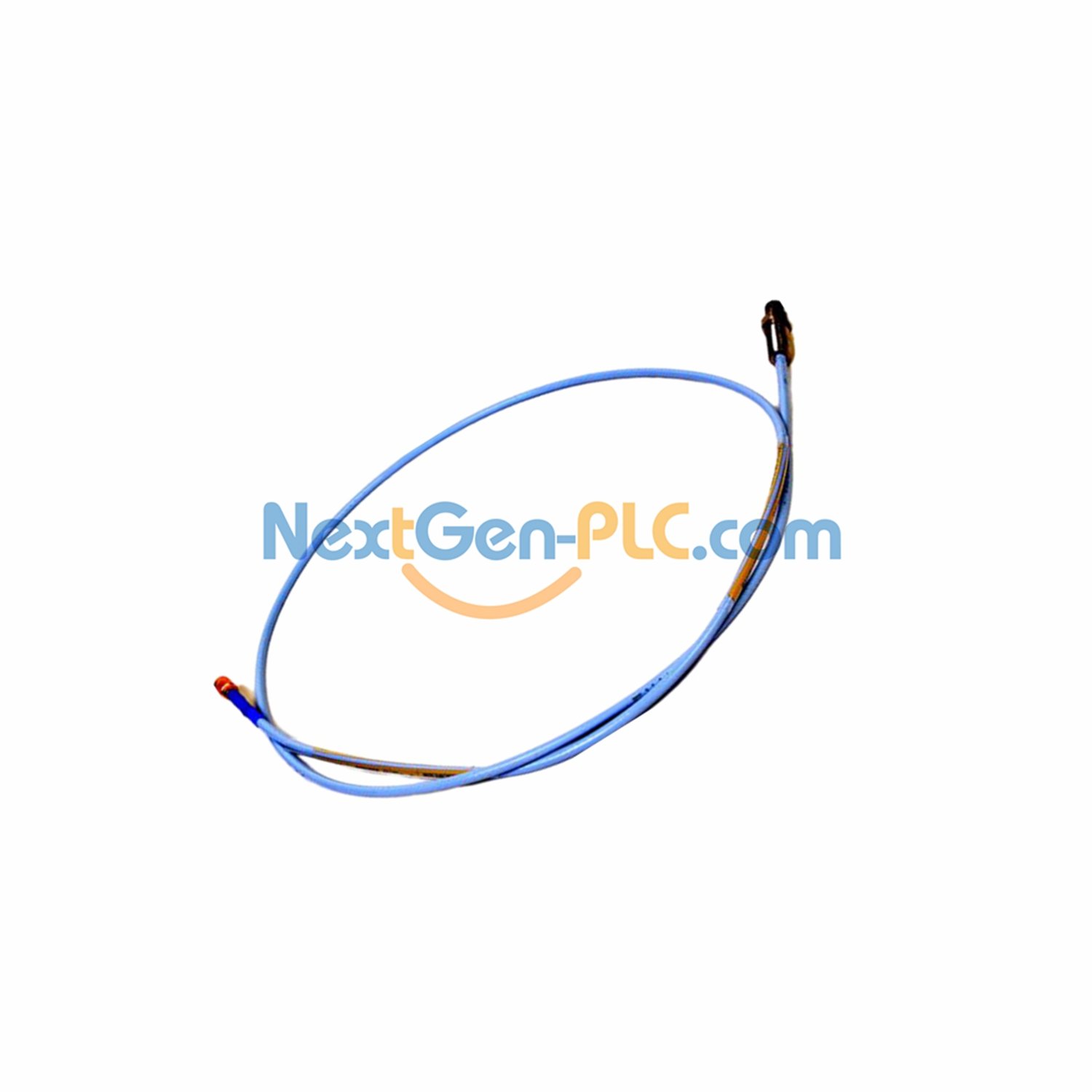

Bently Nevada 3300 XL 8mm Proximity Probe – Model 330103-00-03-05-02-05

Premium quality vibration monitoring probe designed for industrial machinery. 8mm tip, M10x1 thread, and intrinsically safe approvals. Ideal for rotating equipment like turbines, compressors, and pumps.

Description

The Bently Nevada 3300 XL proximity probe measures shaft vibration and position with high accuracy. Features a stainless steel case, PPS tip material, and Viton O-ring seal. Compatible with 3300 XL monitoring systems.

Technical Data

• Brand: Bently Nevada
• Model: 3300 XL 8mm Proximity Probe
• Full Suffix: 330103-00-03-05-02-05

Model Suffix Decoder

Key Specifications

• Range: 2mm (80 mils)
• Output: -1 to -17 Vdc
• Resistance: 7.45Ω ±0.50
• Temperature: -52°C to +177°C (standard)
• Thread: M10x1 (15mm max engagement)
• Weight: 323 g/m (11.4 oz)

Installation Guide

Use with 3-conductor shielded cable (0.2-1.5mm²). Max wiring length: 305m (1000 ft). Recommended gap: 1.27mm (50 mils) for radial vibration.

Compatibility

Works with 3300 XL monitoring systems. Intrinsically safe when used with zener barriers (drawing 141092).

Certifications

• AEx/Ex ia IIC T5-T1 Ga
• Class I, Zone 0/1/2
• ATEX, IECEx, CSA

What’s Included

• 1x 3300 XL 8mm Probe
• Miniature ClickLoc connector
• 0.5m standard cable

Applications

Perfect for power generation, oil & gas, and heavy industry. Monitors turbines, compressors, and pumps.

Shipping

Available via FedEx, UPS, or DHL. Worldwide delivery options.

Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
