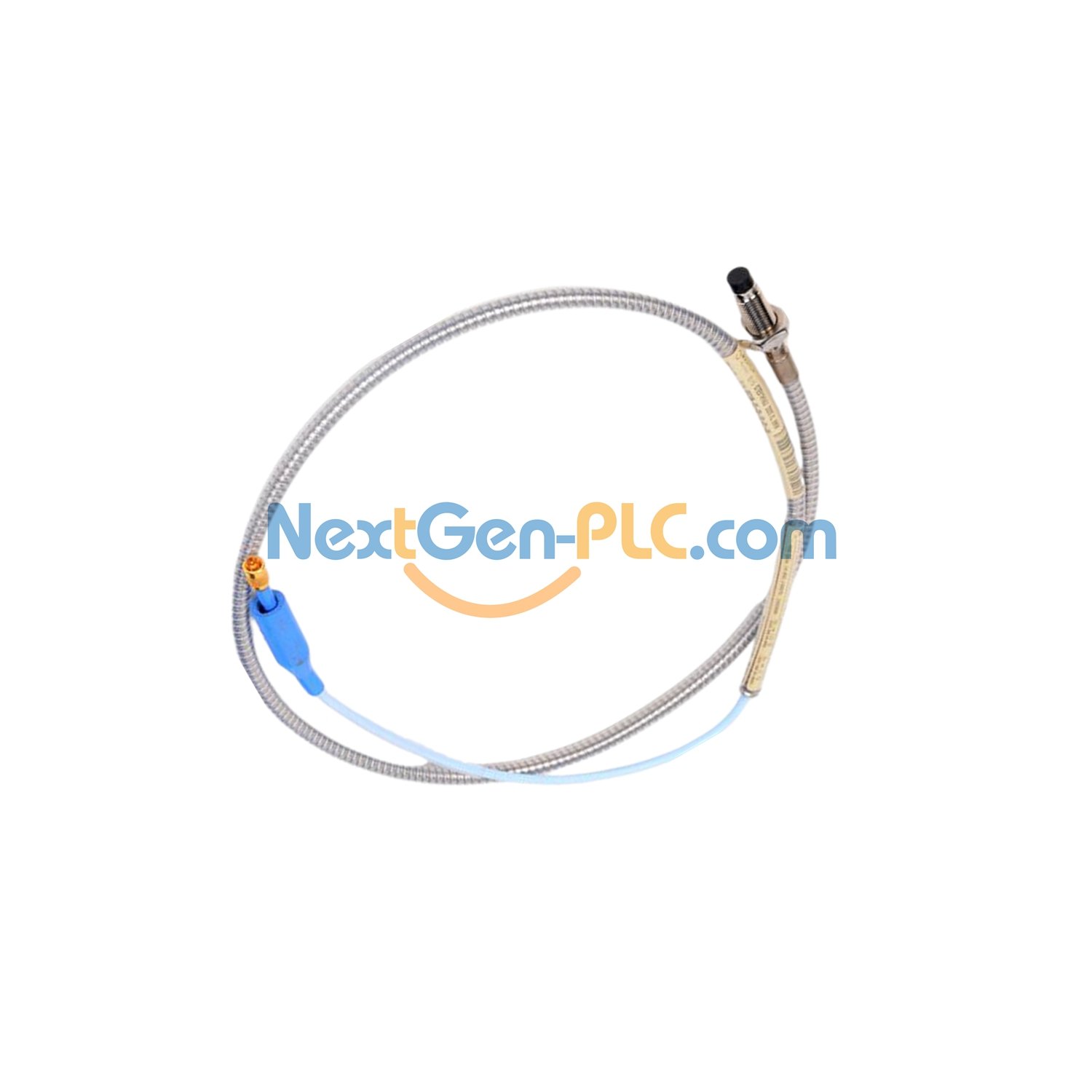

Bently Nevada 3300 XL 8mm Proximity Probe
Model: 330102-00-32-10-01-CN
Key Features
- 8mm sensing diameter
- 3.2″ stainless steel case
- 1m cable with protected ClickLoc connector
- Country-specific approvals (CN)
- Wide temperature range (-52°C to +177°C)
- Viton® O-ring pressure seal
Physical Specs
• 3/8-24 UNF thread
• 3.2″ case length
• 323 g/m weight
Electrical Specs
• 7.59Ω ±0.50 resistance
• -1 to -17 Vdc output
• 1.0m standard cable
Performance
• 0.25-2.3mm range
• Optimal gap: 1.27mm
• PPS tip material
Model Number Breakdown
| Segment | Option | Description |
|---|---|---|
| 330102 | Base Model | 8mm armored probe |
| 00 | Unthreaded Length | 0 inches |
| 32 | Case Length | 3.2 inches |
| 10 | Cable Length | 1.0 meter |
| 01 | Connector | Protected ClickLoc |
| CN | Approvals | Country-specific |
Installation Notes
- Recommended gap setting: 1.27mm (50 mils) at -9 Vdc
- Maximum thread engagement: 0.563 inches
- Use shielded triad cable (16-24 AWG)
- Minimum operating temperature: -34°C (-30°F)
Package Includes
- 1 × 3300 XL 8mm Proximity Probe
- 1 × 1.0m cable with protected ClickLoc connector
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
