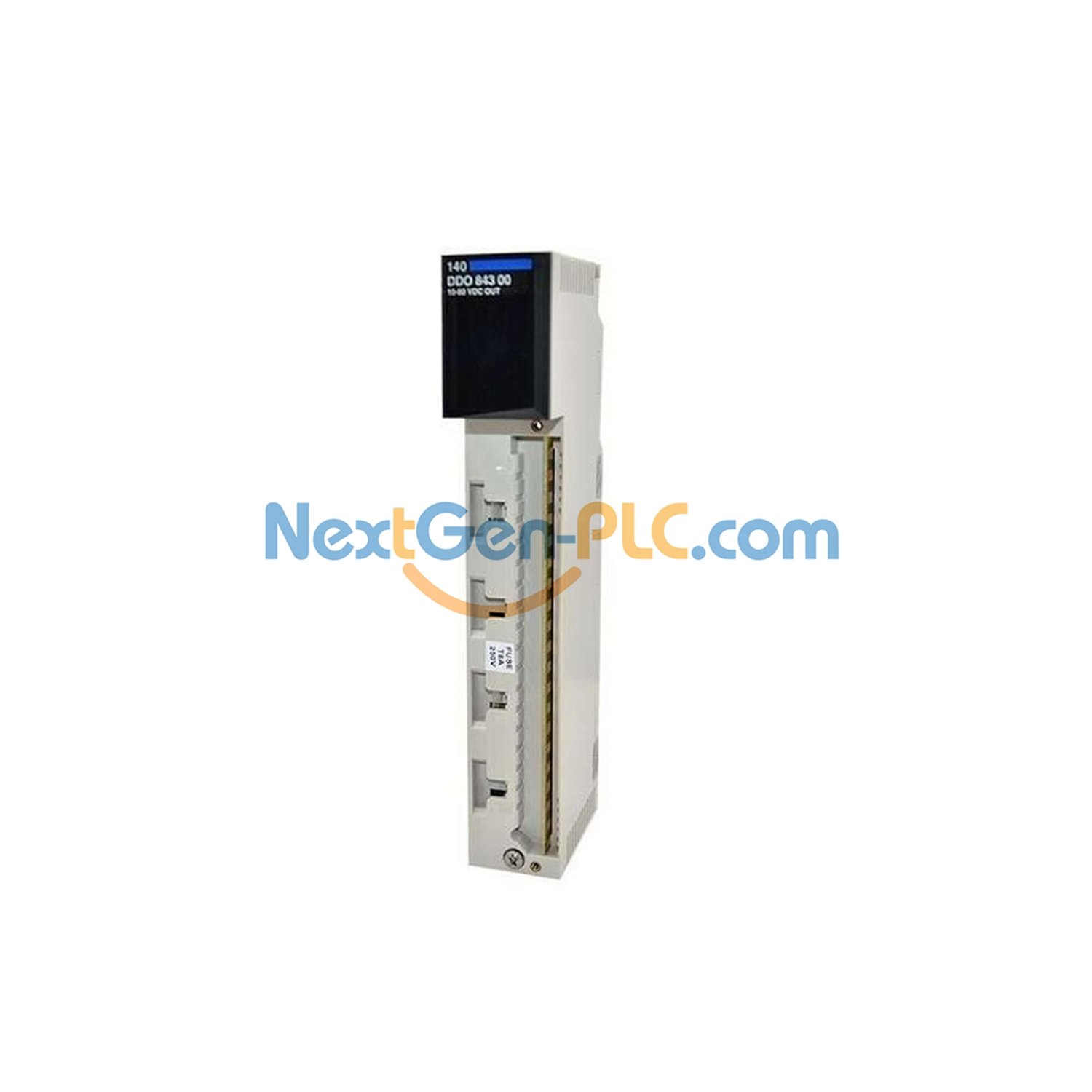

140DDO84300 Schneider Electric Quantum 16 Output Module 10-60V

140DDO84300 Schneider Electric Modicon Quantum Wide Voltage Output Module

Main Technical Specifications

• Brand & Series: Schneider Electric manufactures this module for the Modicon Quantum series. It integrates seamlessly with existing systems.
• Wide Voltage Range: The 140DDO84300 operates on 10-60 V DC (10.2 to 72 V limits). It accepts up to 72 V permanently for demanding applications.
• Output Configuration: It provides 16 outputs in 2 groups of 8. It uses positive logic (source) for standard industrial control.
• Power Ratings: Maximum current is 12 A per module and 6 A per group. It handles surge current up to 7.5 A for 50 seconds.
• Speed: This module switches in ≤ 1 ms both on and off. Voltage drop stays below 1 V at 2 A load.
• Protection Features: Each group includes an 8 A fuse for safety. Each point has a 2 A fuse rating for reliable protection.
• High Isolation: It provides 2500 Vrms isolation between channels and the bus. Group isolation is 700 Vrms for 1 minute.
• LED Indicators: The front panel shows 16 green LEDs for output status. One green LED indicates bus activity, and one red LED shows faults.
• Environmental Resistance: It withstands 4 kV contact discharge and 8 kV air discharge. It operates from 0 to 60 °C.
• Power Consumption: The 140DDO84300 draws 160 mA from the bus. Total dissipation is 1 W plus 1 V x total load current.
