140DDI85300 Schneider Electric Discrete Input Module

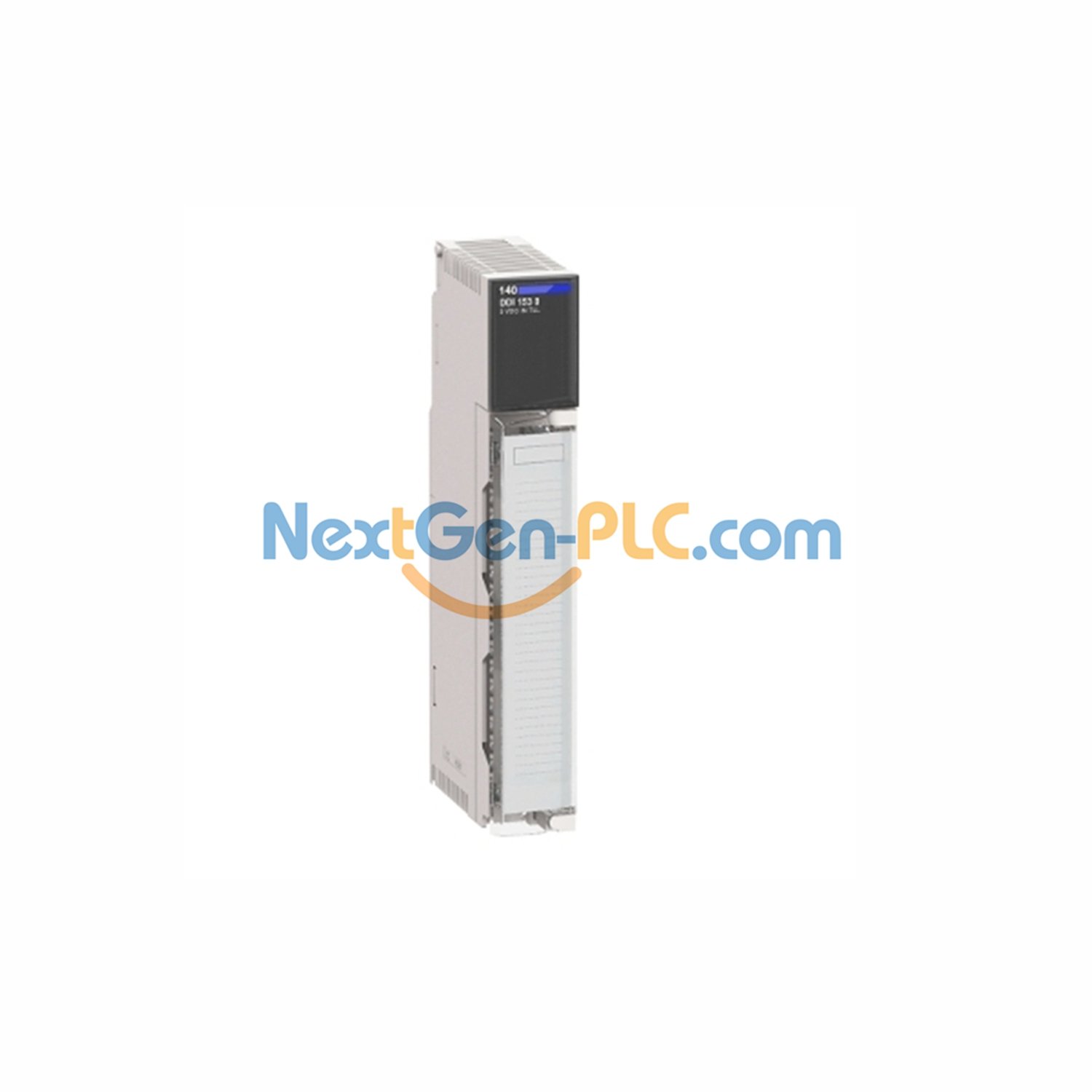

140DDI85300 Schneider Electric Modicon Quantum 32-Point Input Module

Technical Specifications of 140DDI85300

• Brand & Series: Schneider Electric Modicon Quantum | Model: 140DDI85300 provides 32 discrete inputs arranged in 4 isolated groups of 8 channels each.
• Input Voltage & Current: The module supports 10…60 V DC with specific draws: 12 V (5‑10 mA), 24 V (6‑30 mA), 48 V (2‑15 mA), and 60 V (1‑5 mA).
• Guaranteed ON Voltage: It ensures ON state at 9‑12 V for 12 V nominal, 11‑24 V for 24 V nominal, 34‑48 V for 48 V nominal, and 45‑60 V for 60 V nominal.
• Guaranteed OFF Voltage: It guarantees OFF state at 0‑1.8 V (12 V), 0‑5 V (24 V), 0‑10 V (48 V), and 0‑12.5 V (60 V).
• Response Time & Frequency: Transition time is 4 ms for both 0→1 and 1→0 states. Maximum switching frequency is ≤100 Hz.
• Isolation Ratings: The 140DDI85300 provides 2500 Vrms isolation between group and bus, plus 700 Vrms between groups for 1 minute.
• Environmental Resistance: It operates at 0…60 °C, stores at -40…85 °C, and withstands 95% humidity. Maximum altitude reaches 5000 m. It also meets IEC 801‑2/3 for ESD and electromagnetic field resistance.
• Power Requirements: The module draws 300 mA from the backplane bus. Power dissipation equals 1 W + (0.25 × number of active points).
• Diagnostic LEDs: Thirty-two green LEDs indicate individual input status. One green LED signals active bus communication.
