140DA084210 Schneider Output Module | 16 AC Out

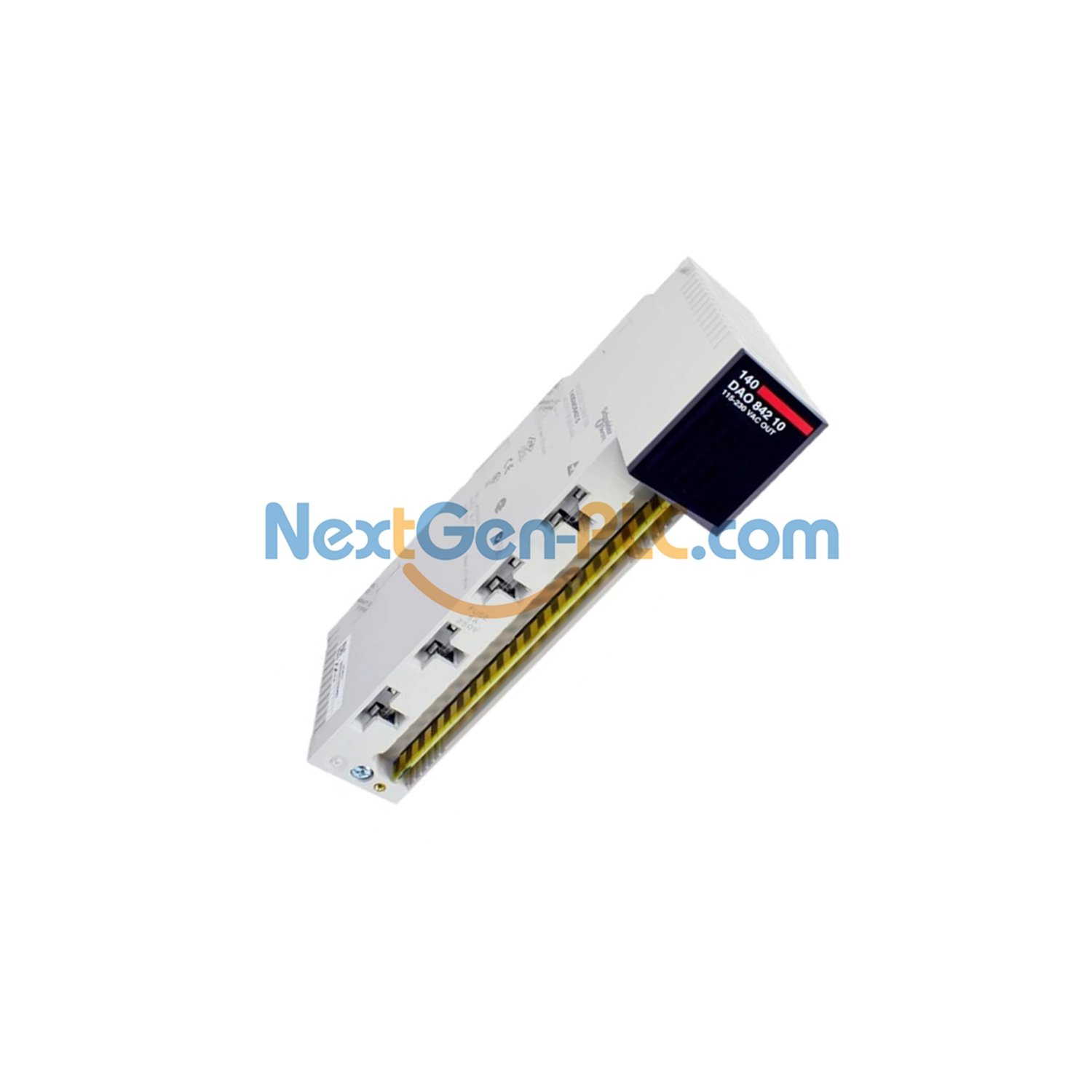

Schneider Electric 140DA084210 AC Discrete Output Module

Main Specifications

• Product range: Modicon Quantum automation platform
• Product type: AC discrete output module
• Output count: 16 discrete outputs
• GTIN: 3595861126985
• Category: US1PC2118155
• Discount schedule: PC21
• Country of origin: CN
• Return policy: Yes, this item is returnable

Output Specifications

• Output voltage: 83 to 253 V AC
• Supply frequency: 47 to 63 Hz
• Maximum voltage drop: 1.5 V
• Output grouping: 4 groups with 4 channels each
• Addressing: Requires 1 output word
• Response time: ≤ 0.5 ms on/off
• DV/dt rating: 400 V/ms

Current Ratings

• Per output: 3 A at 170-253 V, 4 A at 85-132 V
• Per group: 4 A maximum
• Per module: 16 A maximum
• Off-state leakage: 2 mA at 115 V, 2.5 mA at 230 V
• Absolute max output: 300 V for 10 s, 400 V for 1 cycle

Surge Current Capability

• Per point: 10 A for 3 cycles, 20 A for 2 cycles, 30 A for 1 cycle
• Per group: 25 A for 3 cycles, 30 A for 2 cycles, 45 A for 1 cycle
• Handles high inrush currents from motors and coils
• Built for demanding AC load applications

Protection and Diagnostics

• Internal protection: RC filter and 5 A fuse per output
• Fault indication: Blown fuse and loss of field power alerts
• LED indicators: 16 green for output status
• 1 green LED for bus communication active
• 1 red LED for external fault detection
• CE marking for European compliance

Power and Weight

• Power dissipation: 1.85 W + (1.1 V x total load current)
• Bus current: 350 mA
• Net weight: 0.99 lb (0.45 kg)
• Module format: Standard Quantum size

Environmental Ratings

• Working temperature: 32 to 140 °F (0 to 60 °C)
• Storage temperature: -40 to 185 °F (-40 to 85 °C)
• Humidity: 95% with no condensation
• Max altitude: 16404 feet (5000 meters)
• Static protection: 4 kV contact, 8 kV air
• Field protection: 10 V/m at 80-1000 MHz

Certifications

• UL 508 certified
• CSA C22.2 No 142 compliant
• cUL certified for Canada
• FM Class 1 Division 2 for hazardous areas
• Meets IEC 801-2 and 801-3 standards

Frequently Asked Questions

• What is the 140DA084210 used for? It controls AC devices like motors, contactors, valves, and lights from a Quantum PLC.
• How many outputs does it have? It has 16 AC discrete outputs in 4 groups of 4 channels.
• What voltage range does it support? It supports 83 to 253 V AC at 47 to 63 Hz.
• What is the maximum current per output? 3 A for 170-253 V, and 4 A for 85-132 V.
• Does it have fuse protection? Yes, each output has a 5 A internal fuse for protection.
• How do I know if an output is on? Each output has a green LED that lights up when active.
• What is the response time? It switches on or off in 0.5 ms or less.
• Can it handle motor starting current? Yes, it handles surge current up to 30 A for 1 cycle.
• What temperature range works? It works from 0 to 60°C (32 to 140°F).
• Is it safe for hazardous areas? Yes, it has FM Class 1 Division 2 certification.
• Do you ship to my country? Yes, we ship worldwide with FedEx, UPS, and DHL.
