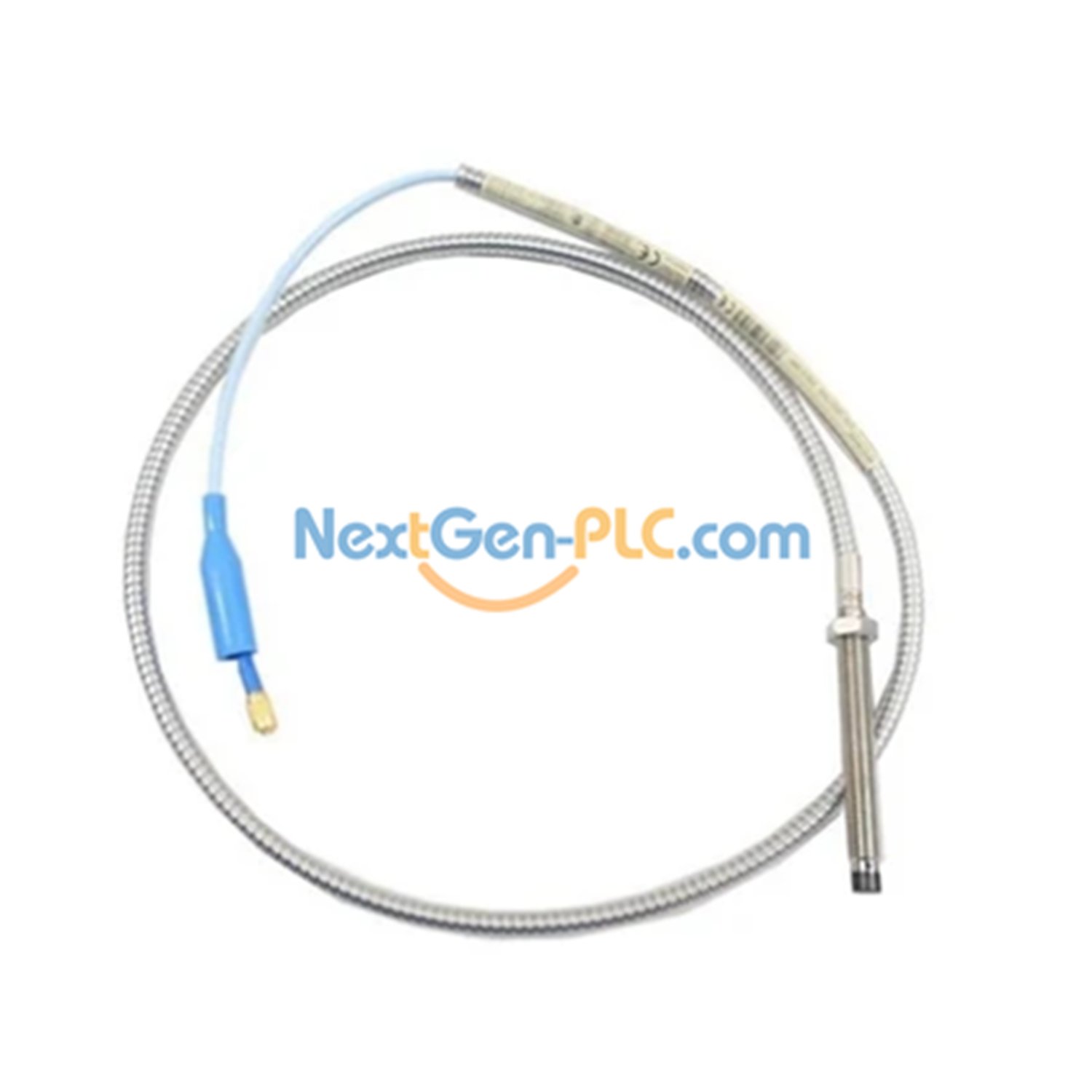

Bently Nevada 330702-00-24-90-01-00
9m Extended Length Proximity Probe
Key Features
- 📏 11mm measurement range
- 🔌 9 meter standard cable
- ❄️🔥 -51°C to +177°C operating range
- 🛡️ Stainless steel armored case
- 🇺🇸 Made in USA
Technical Specifications
| Thread Type: | 1/2-20 UNF |
| Case Length: | 2.4 inches |
| Connector: | ClickLoc with protector |
| Cable Type: | Standard triaxial (75Ω) |
| DC Resistance: | 8.5 ± 1.1 Ω |
| Weight: | 0.17kg |
Installation Guide
- For use with 9m Proximitor systems only
- Maximum torque: 15.2 N•m
- Minimum cable bend radius: 25.4mm
- Hand-tighten connectors only
- Avoid installation below -34°C
Model Number Breakdown
| 330702 | Base Model |
| 00 | 0″ unthreaded length |
| 24 | 2.4″ case length |
| 90 | 9m cable length |
| 01 | Standard cable type |
| 00 | No agency approvals |
Shipping: Worldwide via FedEx/UPS/DHL | Certificate of Origin available
Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
