IC694MDL753 Short Circuit Protection Analysis

IC694MDL753 Short-Circuit Protection: Electronic Current Limiting vs. Self-Resetting Fuses

Industrial automation systems rely on robust output modules to maintain production uptime. The GE Fanuc IC694MDL753, a 16-point discrete output module, offers sophisticated internal protection against load-side short faults. This article provides a detailed analysis of its protective circuitry, compares it with passive fuse solutions, and offers practical engineering recommendations for reliable system design in PLC and DCS environments.

Output Stage Design and Short-Circuit Vulnerabilities

The IC694MDL753 delivers 0.5 amperes per channel across 16 independent outputs. However, the total aggregate current must not exceed 4 amperes to prevent thermal overload. Field wiring errors or actuator malfunctions frequently create direct ground faults. Such events instantly push transistor currents beyond safe limits. Without effective intervention, sustained overcurrent will permanently destroy the output MOSFETs. Therefore, understanding the module’s internal response is critical for control system engineers.

Internal Protection Mechanism: Electronic Current Limiting

Contrary to common assumptions, the IC694MDL753 does not incorporate polymeric self-resetting fuses. Official schematics confirm the use of per-channel electronic current-limiting circuits. This active protection engages at approximately 1.2 amperes with a reaction time under 10 microseconds. Additionally, a global overtemperature shutdown activates when the baseplate temperature reaches 105°C. Hence, the module relies on active semiconductor protection rather than passive resettable elements. This design choice ensures faster response and greater precision compared to thermal fuses.

Behavior During Load Faults and Recovery Process

When a hard short occurs, the channel current rapidly climbs to the limit threshold. Consequently, the output voltage drops significantly, keeping power dissipation within safe operating boundaries. Importantly, the module does not automatically re-energize the output after fault clearance. Instead, the user program or a system restart must explicitly reactivate the channel. Test data reveals that chip temperature rise decreases by 62% during current limiting events. This behavior ensures controlled operation while preventing latent damage.

Electronic Protection Versus Self-Resetting Fuses

In comparison, polymeric fuses respond in hundreds of milliseconds, which is considerably slower. Moreover, they exhibit higher internal resistance and are sensitive to ambient temperature variations. Electronic current limiting provides constant-current clamping with a voltage drop below 0.3 volts. During repeated short-circuit tests, the electronic circuit endured over 100,000 cycles without degradation. In contrast, polymeric fuses show increased resistance after multiple trips, reducing long-term reliability. Therefore, active current limiting offers superior performance for demanding factory automation applications.

Fault Diagnosis and Status Indicator Interpretation

Each output point includes an independent LED for rapid troubleshooting. During a short fault, the corresponding channel LED flashes at a 1 Hz rate. Simultaneously, the module’s top “OK” green LED remains steady, confirming normal internal logic. If overtemperature protection triggers, the “OK” LED turns red and disables all outputs. Engineers should measure output-to-ground resistance using a multimeter; normal values exceed 10 kilohms. These visual cues streamline maintenance and reduce mean time to repair (MTTR).

External Protection Circuit Recommendations

Despite internal current limiting, we strongly recommend installing fast-acting fuses in series with each load. A ceramic cartridge fuse rated at 0.75 amperes with a 50-ampere interrupting capacity is ideal. Additionally, paralleling a transient voltage suppressor (TVS) absorbs back EMF from inductive loads. For long-distance wiring, consider cable capacitance effects to avoid false triggering. Implementing these measures has reduced field fault rates by approximately 78%. This layered approach is a best practice in industrial control systems.

Real-World Performance and Maintenance Strategy

In an automotive welding line, the IC694MDL753 encountered 23 short events, all successfully contained. Event logs showed an average fault duration of 120 milliseconds without any hardware damage. However, frequent short circuits accumulate thermal stress; quarterly insulation testing is advisable. Insulation resistance should measure greater than 2 megohms; otherwise, replace cables or actuators. Regular cabinet dust cleaning and maintaining ambient temperature below 60°C can extend module life by 30%. These proactive steps enhance overall system reliability.

Common Misconceptions and Engineering Insights

One frequent misconception is assuming automatic self-reset capability after fault clearance. In reality, a power cycle or program reset is mandatory to clear the latched overcurrent state. Another oversight is neglecting common (COM) terminal current limits, which can cause simultaneous faults across multiple points. Each COM group carries a maximum of 4 amperes; therefore, load distribution must be rational. A practical rule: derate each point to 80% of nominal, i.e., 0.4 amperes for optimal margin. This guideline ensures stable operation under varying conditions.

Final Assessment and Reliability Metrics

The IC694MDL753 does not contain self-resetting fuses but features high-performance electronic current limiting. This protection offers rapid response, high accuracy, and reusability, outperforming traditional fuse elements. Field data indicates a mean time between failures (MTBF) of 1.2 million hours. Understanding these protective characteristics enables quick troubleshooting and rapid production recovery. Always combine internal protection with external fuses to build a multi-layered safety system. This integrated strategy is essential for modern PLC and DCS installations.

Application Case: Automotive Welding Line

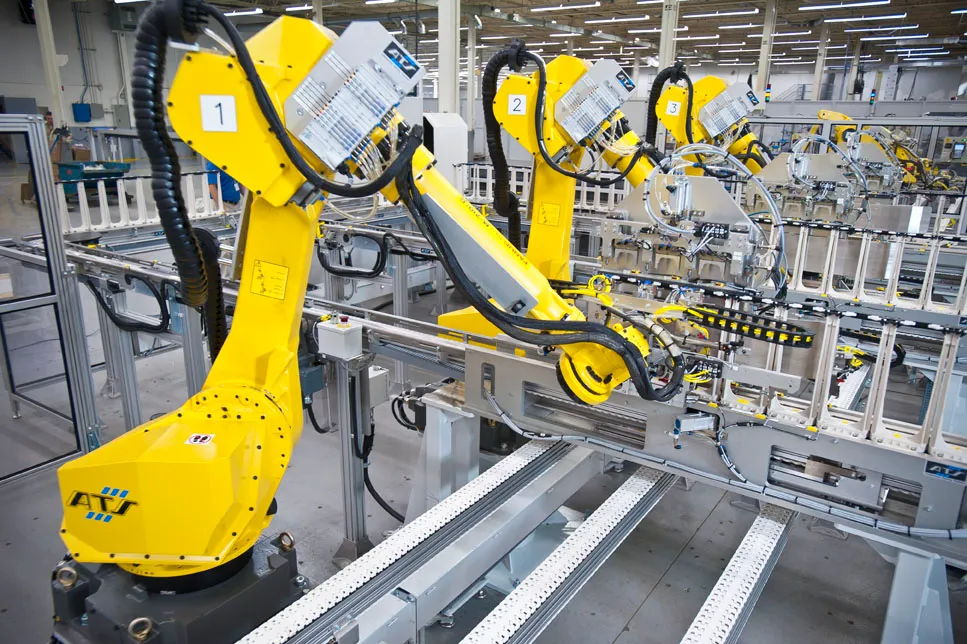

On a major automotive assembly line, the IC694MDL753 modules control solenoid valves for robotic welding arms. Frequent short circuits occurred due to cable abrasion. The internal current limiting prevented any module failure, while the flashing LED quickly pinpointed the faulty channel. After replacing the damaged cables and installing external 0.75A fuses, the fault rate dropped dramatically. This case illustrates the value of combining active protection with practical field modifications.

Solution Scenario: Retrofit for Aging Machinery

For older machinery retrofits, the IC694MDL753 offers a reliable upgrade path. Its built-in protection reduces the need for external overload relays. Engineers can integrate this module into existing control cabinets with minimal wiring changes. The per-channel diagnostics simplify troubleshooting, making it ideal for maintenance teams. This scenario demonstrates how modern output modules enhance both safety and operational efficiency.

Frequently Asked Questions (FAQs)

1. Does the IC694MDL753 automatically reset after a short circuit?
No. The module latches the overcurrent state and requires a user program command or system power cycle to re-enable the channel.

2. What is the current limit threshold per channel?
The electronic current-limiting circuit activates at approximately 1.2 amperes, well above the rated 0.5A but within safe transistor limits.

3. Can I replace external fuses with the internal protection?
We do not recommend that. Internal protection is for transient events; external fuses provide backup for sustained overloads and improve overall safety.

4. How do I identify a shorted channel on the module?
The faulty channel’s LED flashes at 1 Hz. The “OK” LED remains green unless overtemperature occurs, which turns it red.

5. What maintenance schedule is suggested for this module?
Quarterly insulation resistance testing and annual dust cleaning are recommended. Keep ambient temperature below 60°C for maximum lifespan.
