VFAS3-4007PC Toshiba AS3 Drive | Ethernet RS-485 UL Type 1 1HP

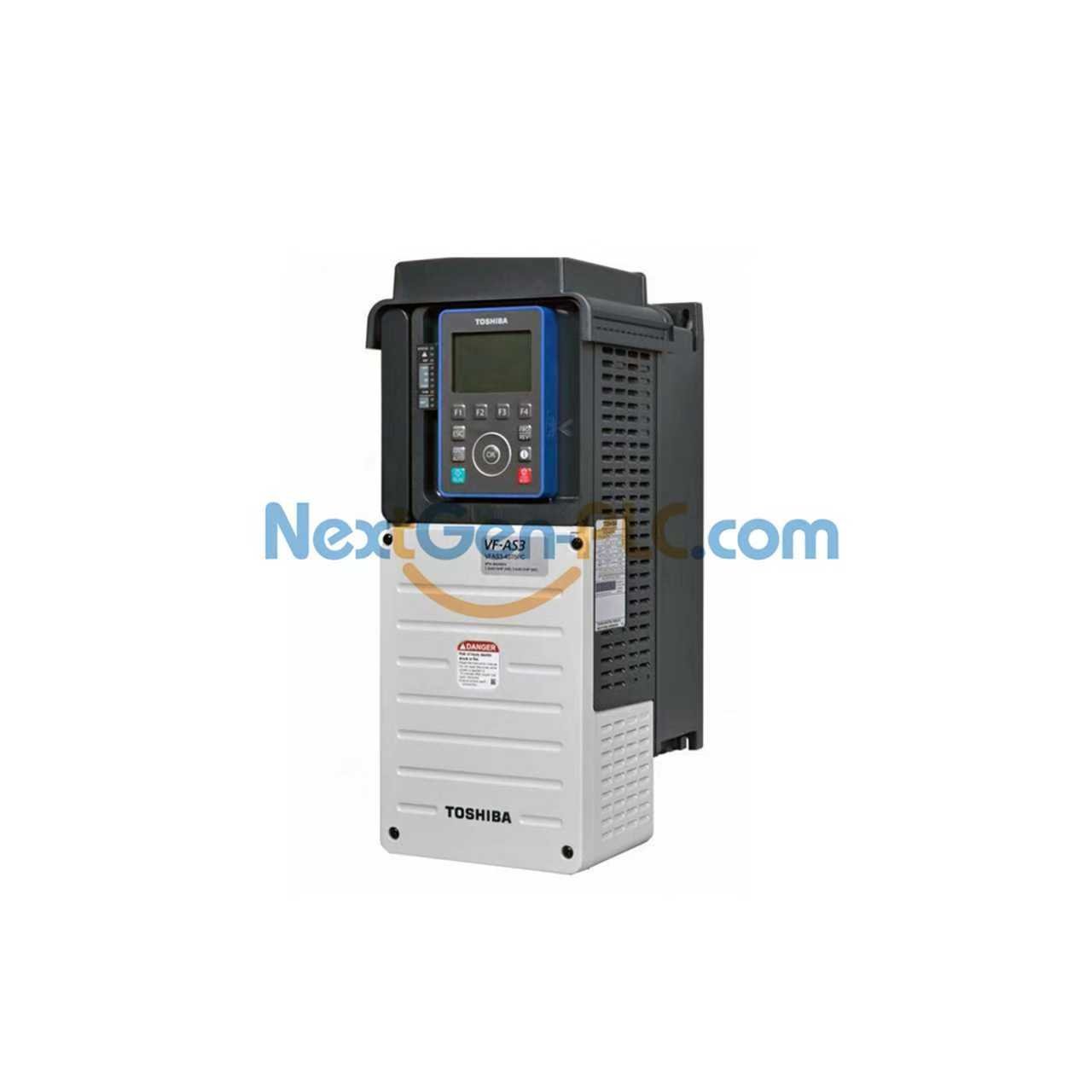

Toshiba AS3 Series VFAS3-4007PC · 1HP AC Drive

VFAS3-4007PC is a 1HP Toshiba AS3 high-performance drive. It operates on 460VAC 3-phase input. UL Type 1 enclosure. A1 frame size. Panel or wall mount.

Use with 3-phase induction and permanent magnet AC motors.

Ratings

• 2.2A continuous output
• 4.0A variable torque rating
• 0.1–590 Hz output frequency
• 1–16 kHz carrier frequency

Control

• V/Hz · FOC · Encoder · Torque modes
• Integrated dynamic braking
• Safe Torque Off (STO) built in
• Reverse capability standard

Connectivity

• 2x Ethernet RJ45 — EtherNet/IP, Modbus TCP, web server
• 1x RS-485 RJ45 — Modbus RTU slave, 38.4k baud
• Optional — EtherCAT, encoder, I/O cards

Analog I/O

• 3 inputs — 0–20 mA, 4–20 mA, ±10 VDC · 11-bit
• 2 outputs — 0–20 mA, 4–20 mA, 0–10 VDC · 10-bit

Digital I/O

• 8 inputs — 24 VDC, sinking/sourcing
• 3 relay outputs — 1x SPDT, 2x SPST · 2A each

Environment & Enclosure

• -15°C to 50°C operating temperature
• UL Type 1 · IP20
• A1 frame — compact panel/wall mount
• CR2032 battery installed (UN3091)

FAQ

• New? Yes, factory-sealed.
• Stock? Yes, ready to ship.
• Ship time? Within 5 days.
• Couriers? DHL, FedEx, UPS.
• Returns? 30 days, unused.
• Motors? 3-phase induction, PMAC.
• Battery spare? D0-MC-BAT (CR2032).
• Control modes? V/Hz, FOC, encoder, torque.
