Velomitor Piezo-velocity Sensor | Bently Nevada | 330500-01-CN

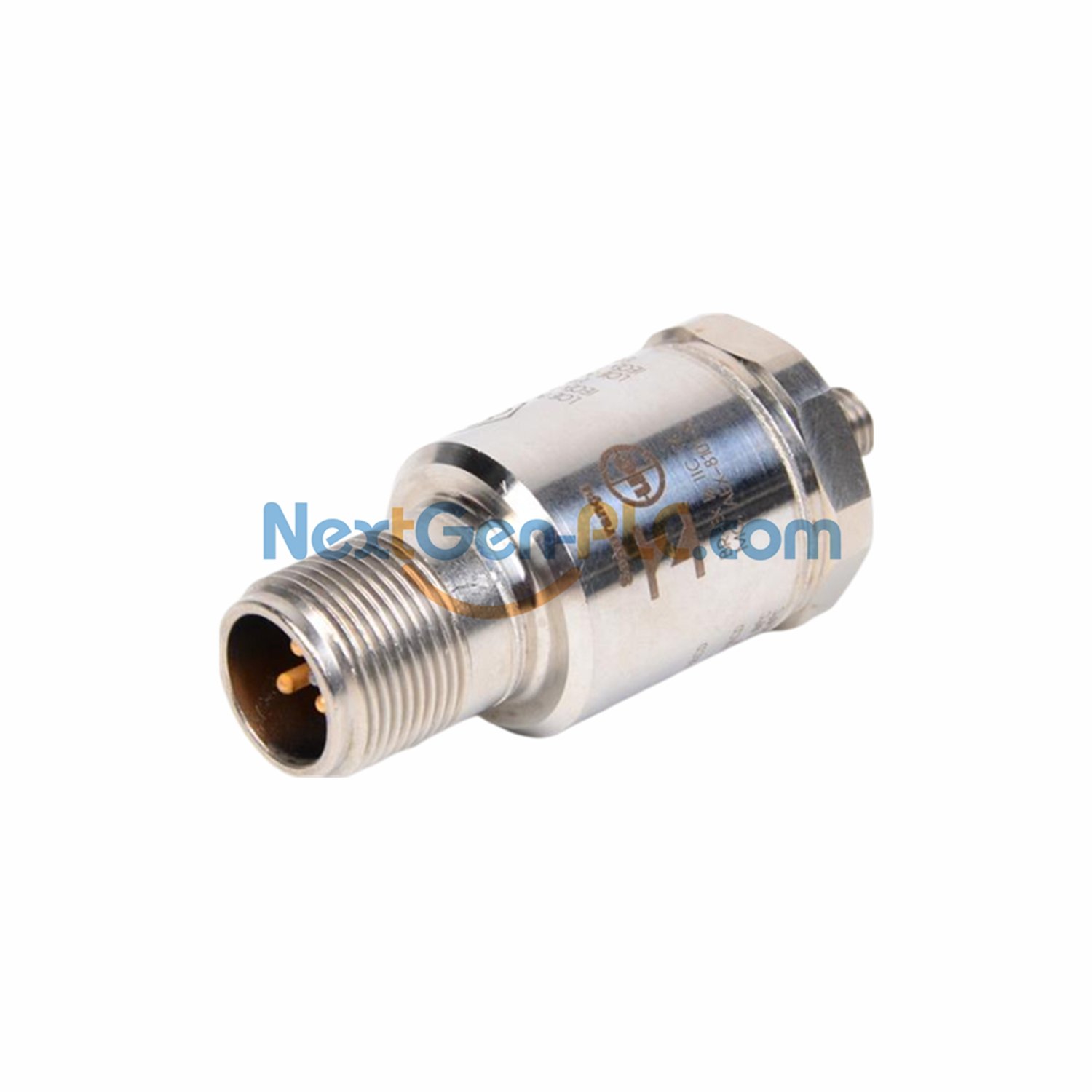

Bently Nevada 330500-01-CN Vibration Sensor

Quick Facts

50 in/s max speed | ±5% accuracy
Thread: 1/2-20 UNF | Weight: 5 oz
Temp Range: -67°F to 250°F

Key Features

• Detects 4.5Hz-5kHz vibrations
• 1,000ft cable support
• Waterproof steel case
• 5,000g shock proof

Certifications

• Ex ia IIC T4 explosion-safe
• DNV maritime approved
• FCC & RoHS compliant

Technical Specs

Sensitivity: 100mV per in/s
Noise: 0.004mm/s (ultra-low)
Output: 2-pin sealed connector
Size: 1in diameter × 2.49in height

Setup Guide

Max torque: 40 in-lb
Pin A+ when sensor moves forward
Use cable PN 02173006

Package Includes

1 sensor unit
Install manual
1-year full warranty

Typical Uses

• Power plant turbines
• Ship engine monitoring
• Mining equipment safety

Download PDF file here:330500
