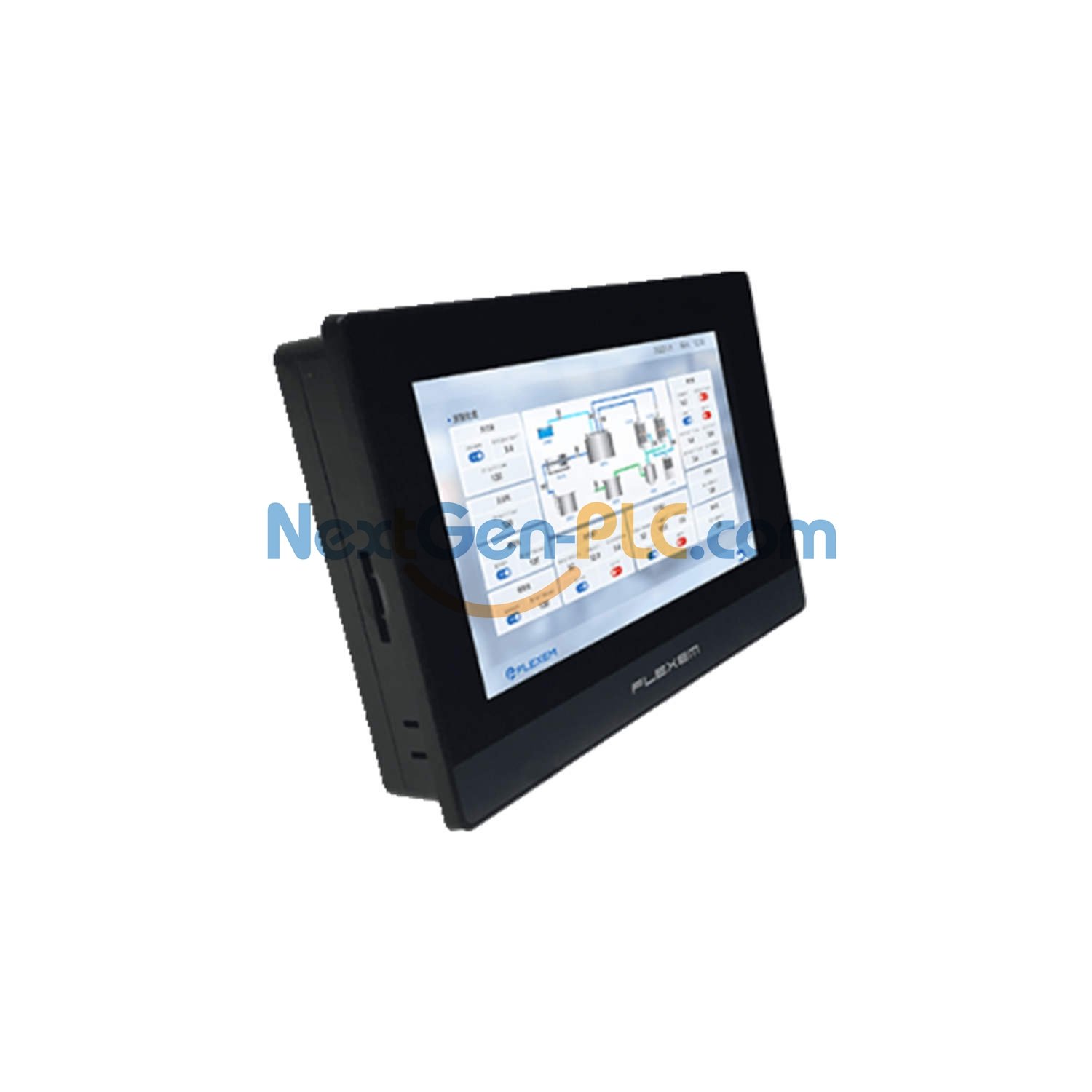

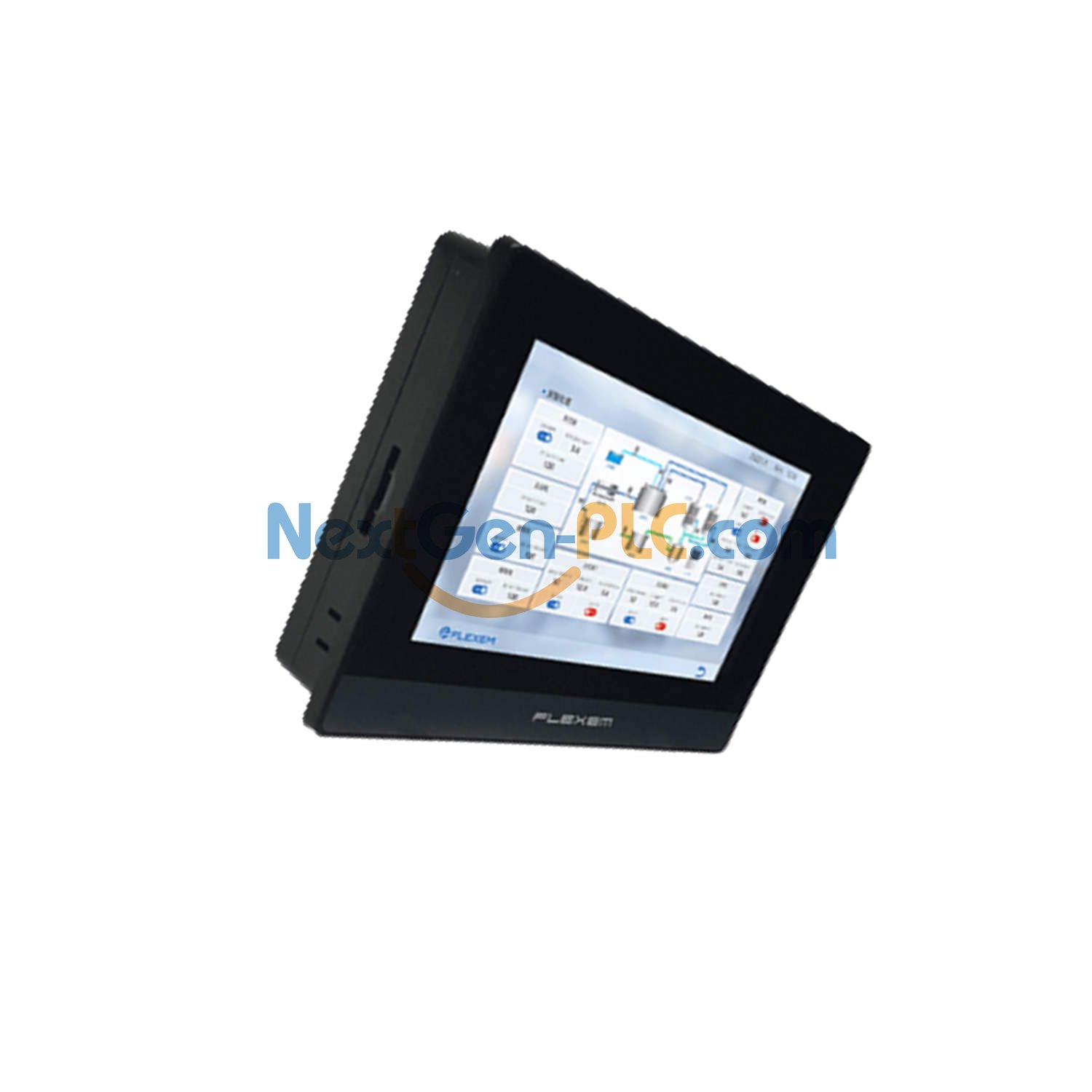

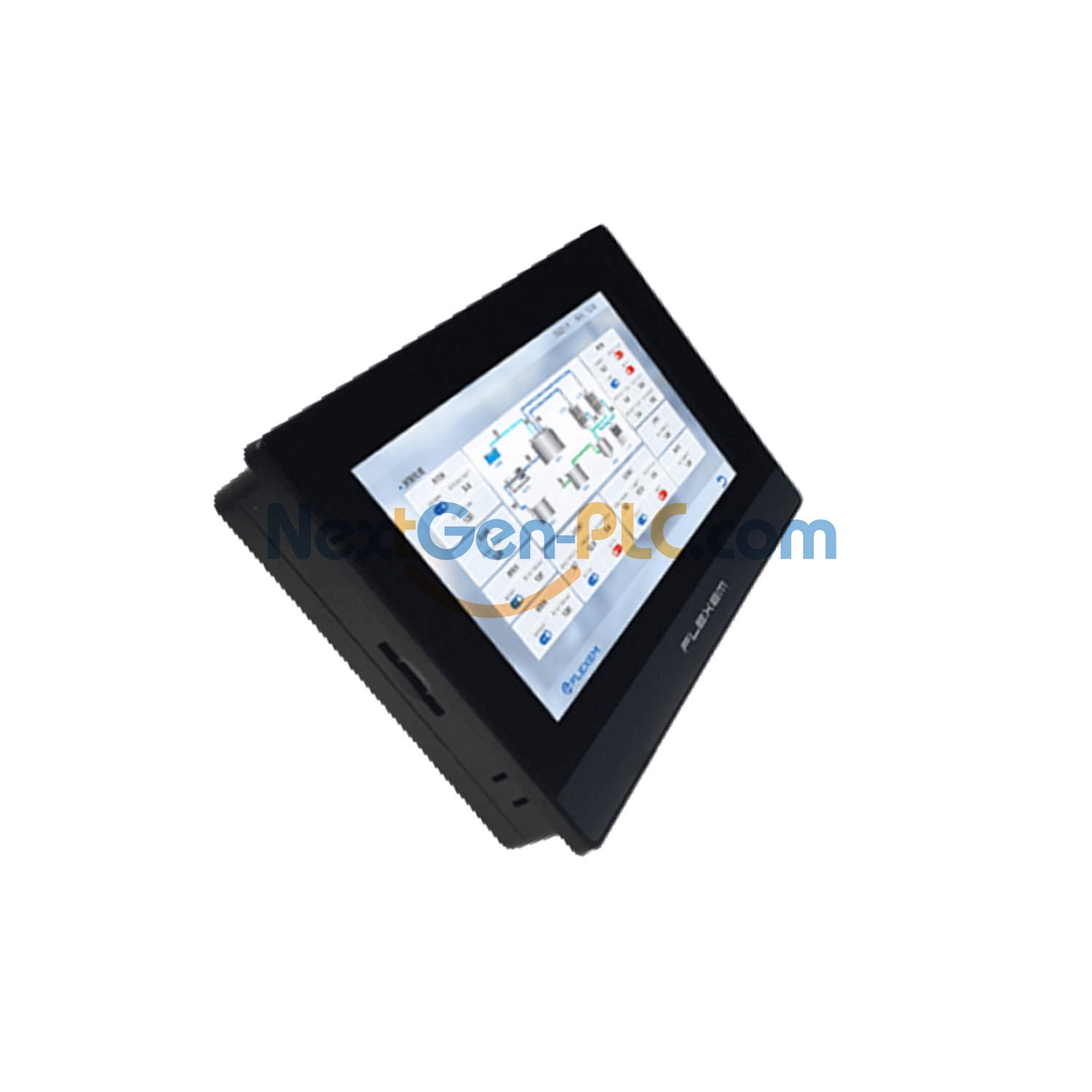

Touchscreen Panel Flexem FE7070IP IoT HMI

Discover the Flexem FE7070IP Waterproof Industrial HMI

Core Display & Touch Specifications

• Brand: Flexem
• Model: FE7070IP
• Display Size: 7-inch 16:9 TFT LCD
• Resolution: 800 × 480 pixels with 16-bit color depth
• Brightness: High 350 cd/m² for enhanced visibility
• Viewing Angles: 50°/70°/70°/70° (Top/Bottom/Left/Right)
• Touch Panel: 4-wire industrial resistive touchscreen
• Protection Level: Front panel rated IP65 waterproof

Processing Power & Connectivity

• Processor: 1 GHz ARM Cortex-A7 CPU
• Memory: 128 MB DDR3 RAM + 128 MB Flash
• Real-Time Clock: Built-in RTC for timekeeping
• USB Ports: 1 × USB slave Type-C, 1 × USB host 2.0
• Serial Port: COM1: RS485 for device communication
• Ethernet Port: Not available on this model
• Program Download: Via USB slave or flash drive

Power Requirements & Environmental Ratings

• Rated Power: Less than 10 Watts consumption
• Voltage Range: Wide input DC 9V to 28V (24V nominal)
• Power Protection: Lightning surge protection included
• Interruption Tolerance: Less than 5 milliseconds
• Operating Temperature: 0°C to 50°C range
• Storage Temperature: -20°C to 60°C range
• Humidity Range: 10% to 90% RH (non-condensing)
• Vibration Endurance: 10-25 Hz at 2G in all directions
• Certifications: CE and RoHS compliant

Physical Dimensions & Installation

• Cutout Size: 192 × 138 mm (or 190 × 136 mm)
• Overall Dimensions: 199 × 145 × 50 mm
• Product Weight: Approximately 500 grams
• Enclosure Material: Durable engineering plastic
• Sealing: Multilayer silicone seals for waterproofing
• UV Note: Do not operate in high UV environments

Frequently Asked Questions (FAQ)

• Is the Flexem FE7070IP waterproof?
  Yes, the front panel has an IP65 rating with multilayer silicone seals for waterproof protection.
• What is the screen brightness of this HMI?
  The Flexem FE7070IP features a high 350 cd/m² brightness display for excellent visibility.
• Does this model have Ethernet connectivity?
  No, the FE7070IP does not include an Ethernet port. It uses USB and RS485 for connectivity.
• What is the delivery time and shipping method?
  We ship within 5 business days via reliable carriers like DHL, FedEx, or UPS.
• Are these units brand new?
  Yes, we supply 100% brand new and original Flexem HMI products.
• What is your return policy?
  We offer a 30-day return policy for products in original condition.
