Toshiba VFS15-4022PL1-W1 Variable Frequency Drive – 460V

Toshiba VFS15 Series Variable Frequency Drive

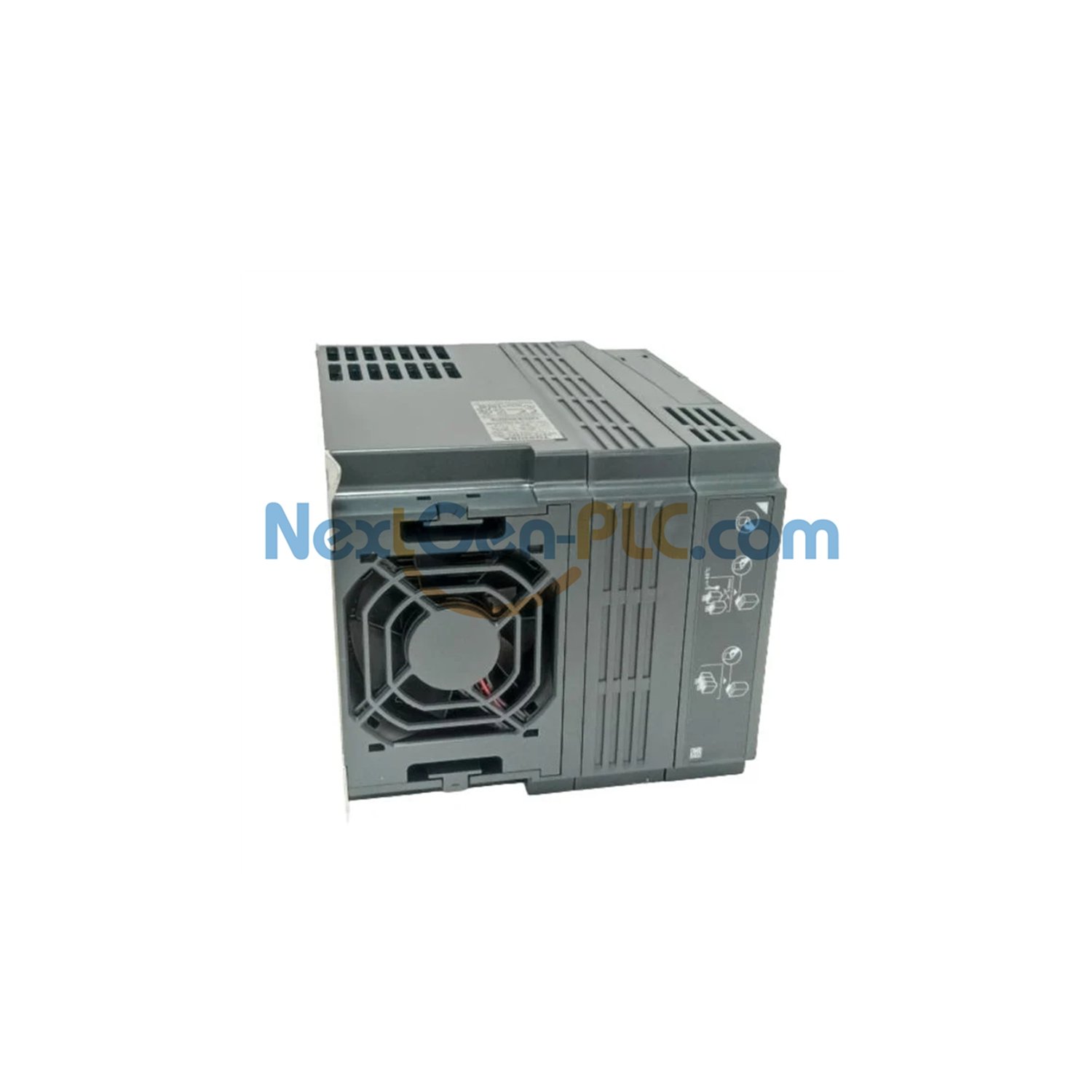

This is the Toshiba VFS15-4022PL1-W1 VFD. It comes from the trusted VF-S15 series. The maker is Toshiba. This 3 HP drive is made for variable torque jobs. It controls motors for pumps, fans, and blowers very well. This helps save energy and money.

Key Technical Specifications

• Brand: Toshiba
• Model: VFS15-4022PL1-W1
• Horsepower: 3 HP
• Voltage: 460V, Three Phase
• Output Amps: 5.5 A
• Frequency: 0.1 to 500.0 Hz
• Default Frequency: 0.5 to 60 Hz
• Control: Sinusoidal PWM
• Enclosure: IP20, Wall-Mount
• Communication: RS485 Port
• Display: 4-Digit LED
• Temp Range: -10°C to 50°C
• Humidity: 95% Non-Condensing
• Altitude: Up to 1000m

Features and Setup

• It has a built-in EMC filter. This filter stops electrical noise.
• The drive remembers the last eight faults. This makes fixing problems easy.
• You can add a rotary encoder for better speed control.
• This unit is UL, CSA, and CE approved for safety.
• We ship with FedEx, UPS, or DHL.

What’s in the Box

• One Toshiba VFS15-4022PL1-W1 VFD unit.
• The built-in operation panel.
• User manual and setup guide.
• All needed screws and mounts.

FAQ

• Is this VFD new?
  Yes. The VFS15-4022PL1-W1 is brand new and original. We have stock ready.
• When will it ship?
  We ship most orders in 5 business days.
• How do you ship?
  We use DHL, FedEx, and UPS for fast delivery.
• Can I return it?
  Yes. We have a 30-day return policy for unused items.
• What is the frequency range?
  It runs from 0.1 Hz to 500.0 Hz. It starts at 0.5-60 Hz by default.
