Toshiba VFS15-2110PM-W1 Drive | 15HP S15 Micro VFD 230VAC

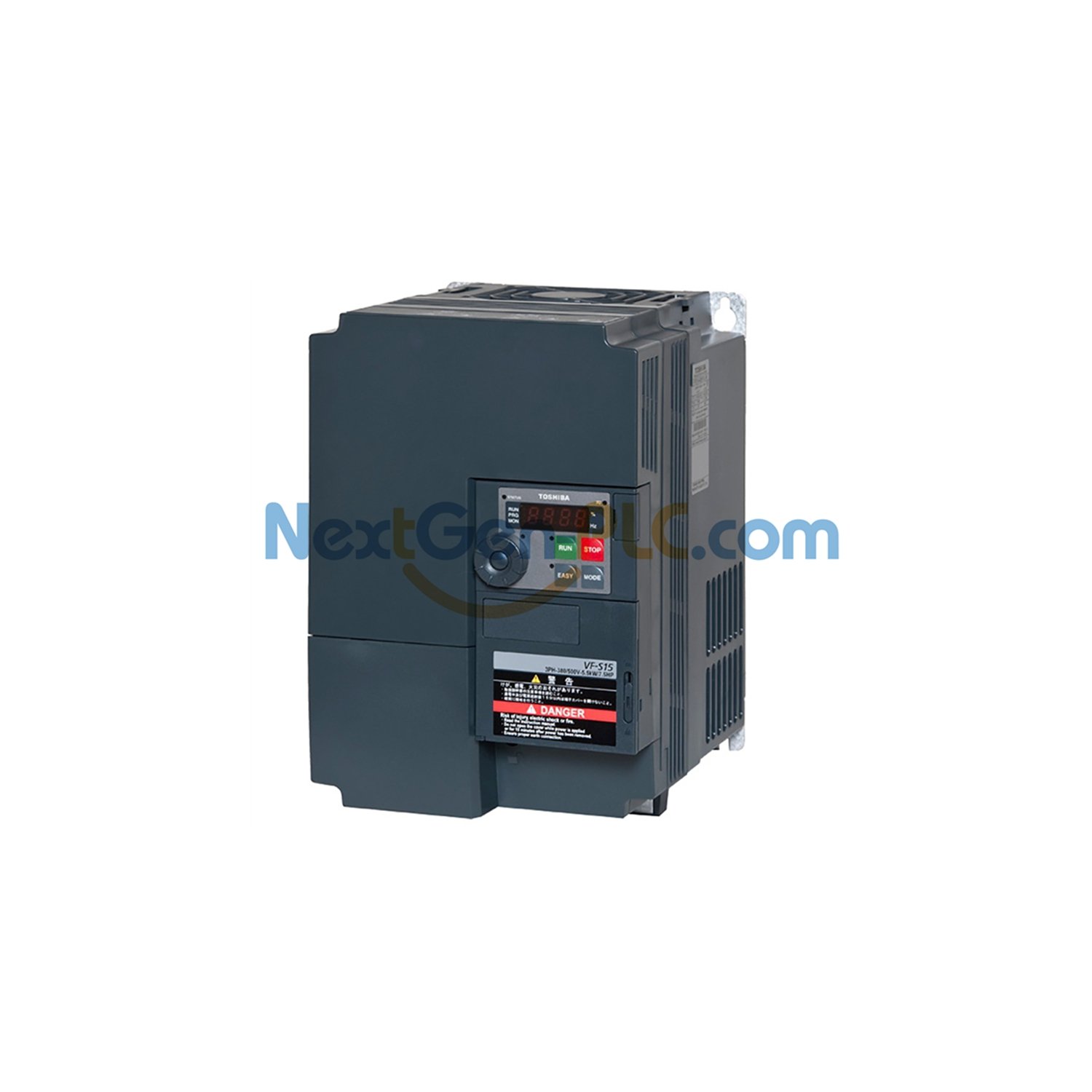

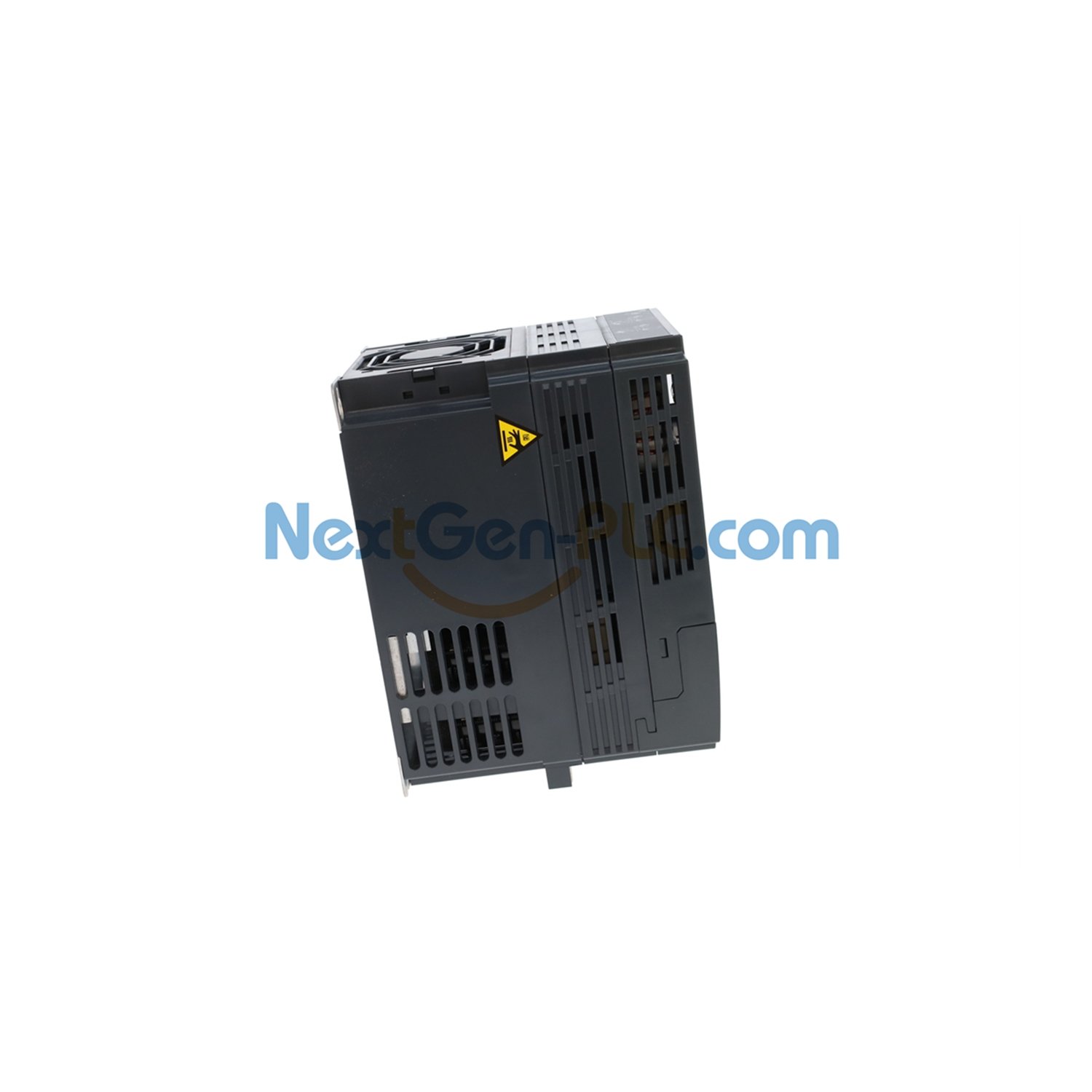

Toshiba S15 VFS15-2110PM-W1: 15HP Micro Drive for Pumps and Fans

The VFS15-2110PM-W1 is a Toshiba S15 Series micro drive. It controls 15HP motors with 230VAC input and output. This VFD suits centrifugal pumps, fans, and blowers. It includes an IP20 enclosure for wall mounting. The drive stores the last eight faults with at-trip data. A four-digit LED display shows status and parameters.

Power and Input Specifications

• Brand: Toshiba Motors & Drives VFS15-2110PM-W1, S15 Series
• Horsepower: 15HP output
• Voltage: 230VAC input and output, 3-phase
• Current: 54 full load amps
• Torque type: Variable torque application

Control and Performance

• Application focus: Centrifugal pumps, fans, blowers
• Encoder: Rotary encoder support
• Display: Four-digit, seven-segment LED, EOI interface
• Fault tracking: Last eight faults stored with operation data
• Control: Micro-drive class, V/Hz control

Environmental and Enclosure

• Enclosure: IP20 rating, wall-mount design
• Temperature: -10°C to 50°C (14°F to 122°F) operating
• Humidity: 95% RH maximum, non-condensing
• Altitude: 1000 meters without derating
• Cooling: Built-in fan, requires adequate clearance

Communication and I/O

• Serial port: Two-wire RS485 communication
• Protocol: Modbus RTU capable
• Wiring: Screw terminals, external fuse required
• Compliance: UL Listed US and Canada, CSA, CE marked
• Mounting: Panel or wall mount, vertical orientation

Installation and Mounting

• Mount vertically on flat wall or panel surface
• Maintain clearance for airflow and cooling
• Use copper wire only, 75°C rating minimum
• Install external fuses or circuit breaker
• Separate control wiring from power cables

What You Receive

• (1) Toshiba VFS15-2110PM-W1 S15 micro drive
• Quick start guide and safety manual
• Mounting brackets and hardware
• Screw terminal connectors attached
• Shipping: FedEx, UPS, DHL. Dispatch within 5 days
• Stock: In stock. 30-day returns accepted

Frequently Asked Questions

• What applications fit VFS15-2110PM-W1?
  This drive is designed for variable torque loads: pumps, fans, and blowers.
• Does it include a keypad?
  Yes. Built-in four-digit LED display with status and programming keys.
• Can I use it for constant torque?
  It is optimized for variable torque. For constant torque, derate or choose AS3 series.
• What communication protocol?
  RS485 with Modbus RTU. Two-wire connection.
• Is this drive UL listed?
  Yes. UL Listed for US and Canada, CSA, CE compliant.
