Toshiba AS3 VFAS3-4037PC AC Drive | 5HP High-Performance

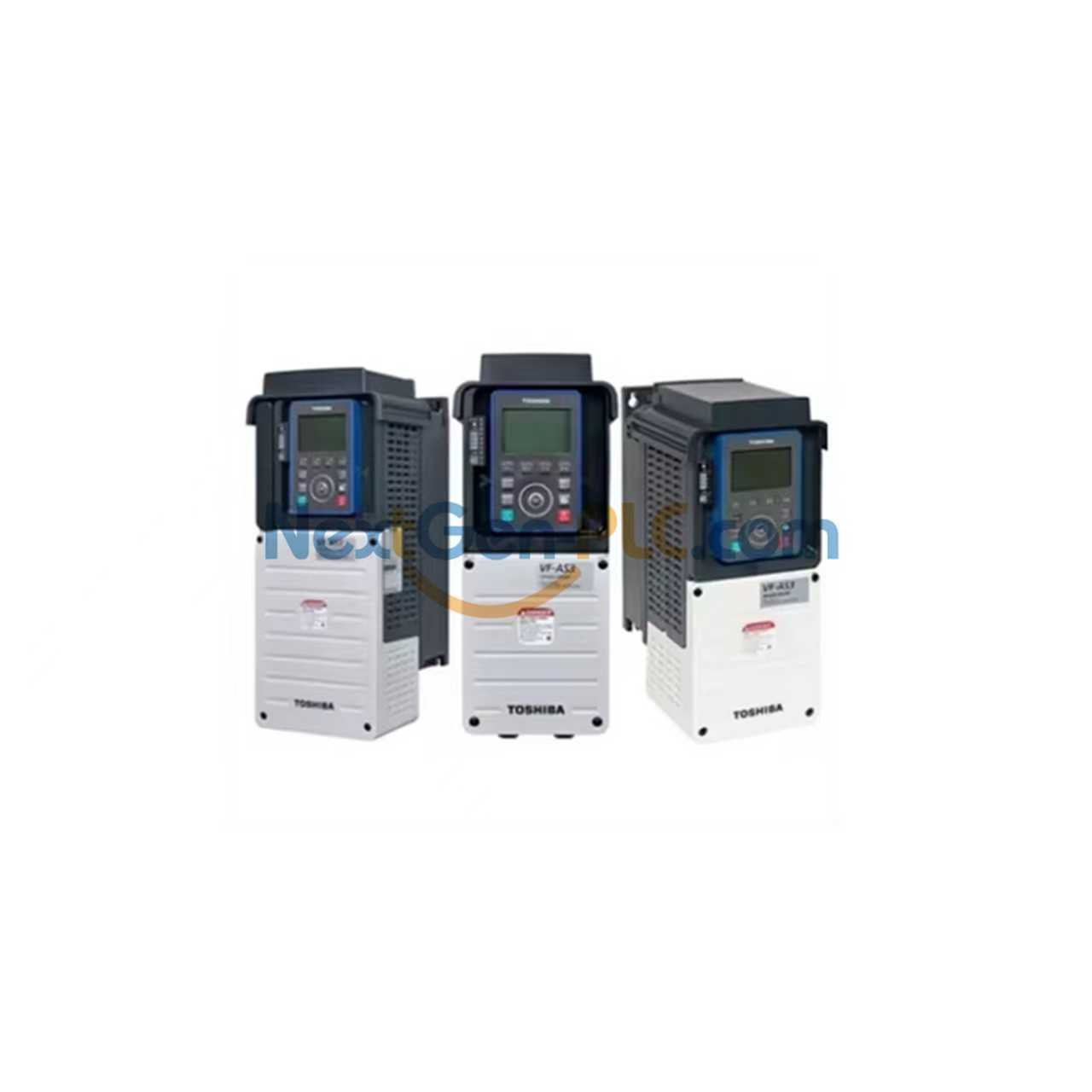

Toshiba AS3 Series VFAS3-4037PC: High-Performance AC Drive

The VFAS3-4037PC is a Toshiba AS3 series drive. It delivers 5HP from 460VAC 3-phase input. This UL Type 1 unit fits panel or wall mount. Use it with induction or permanent magnet AC motors.

• Control Range: VFAS3-4037PC runs 0.1 Hz to 590 Hz. Carrier frequency adjusts 1-16 kHz. Input accepts 4-20 mA, +/-10 VDC, or pulse train.
• Environment: Works at -15°C to 50°C. IP20 protection. Built-in EMC filter and DC reactor. Integrated dynamic braking.
• Network: Two RJ45 Ethernet ports. Supports EtherNet/IP, Modbus TCP, web server. One RJ45 RS-485 port. Optional EtherCAT card.
• Safety: Safe Torque Off (STO) built-in. Reverse capability included. No internal bypass.
• Analog I/O: Three analog inputs. 11-bit resolution. Two analog outputs. 10-bit resolution.
• Digital I/O: Eight 24 VDC inputs. Sinking or sourcing. Three relay outputs. One Form C, two Form A. 2A rating.
• Install: Screw terminals. User supplies external fuse. Conduit box included. Frame A1 size.
• Box Contains: One Toshiba VFAS3-4037PC drive. Built-in DC reactor and EMC filter. Conduit box. CR2032 battery installed.

FAQ

• New or used? All units are brand new and factory-sealed.
• In stock? Yes, we keep VFAS3-4037PC in stock now.
• Ship time? We ship within 5 days. Carriers: DHL, FedEx, UPS.
• Return policy? 30-day returns. Unit must be unused.
• Motor type? Works with 3-phase induction and PMAC motors.
• Battery inside? Yes, CR2032 installed. Order D0-MC-BAT for spare.
• Control modes? V/Hz, FOC, encoder, or torque mode.
• Ethernet speed? 10/100 Mbps. Two RJ45 ports.
