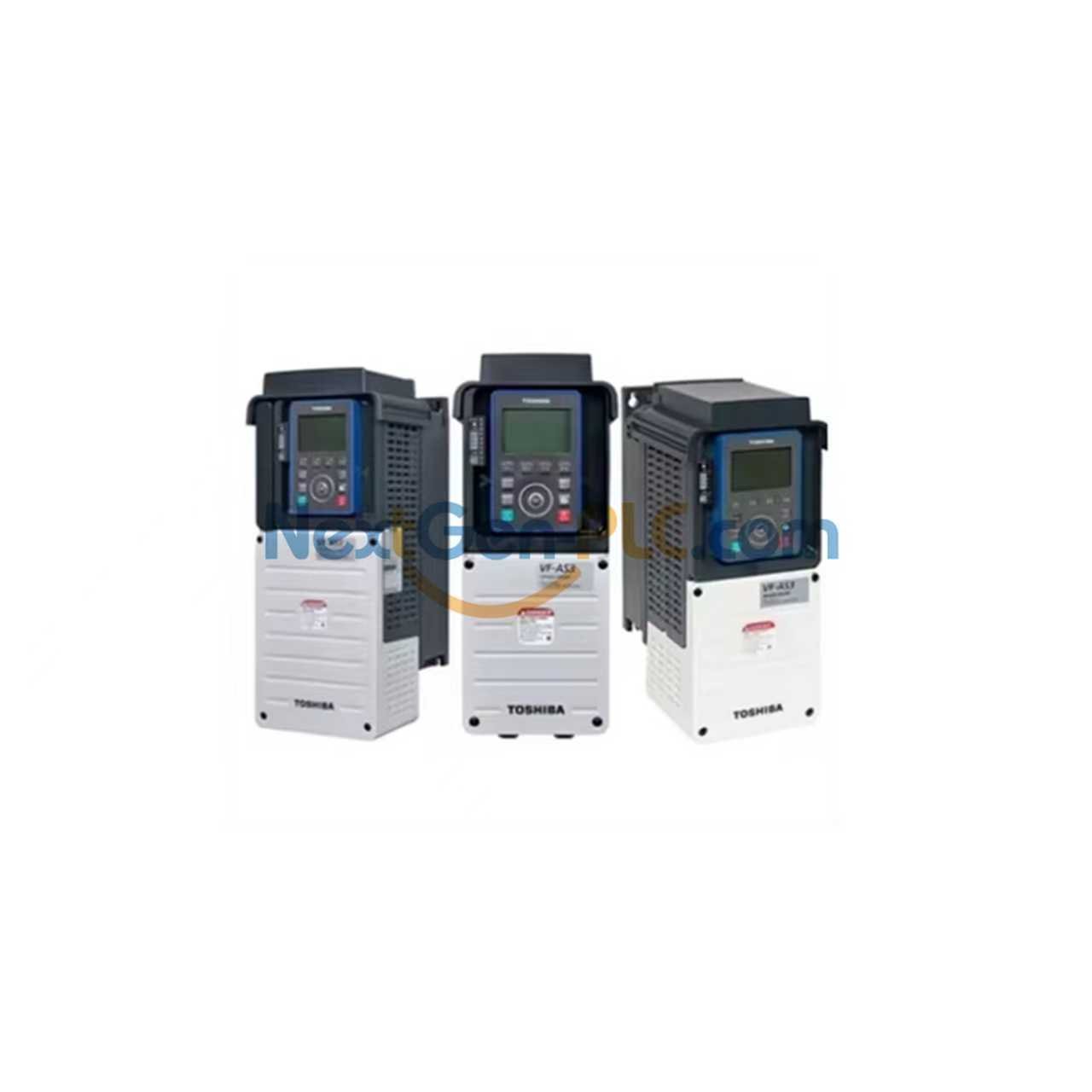

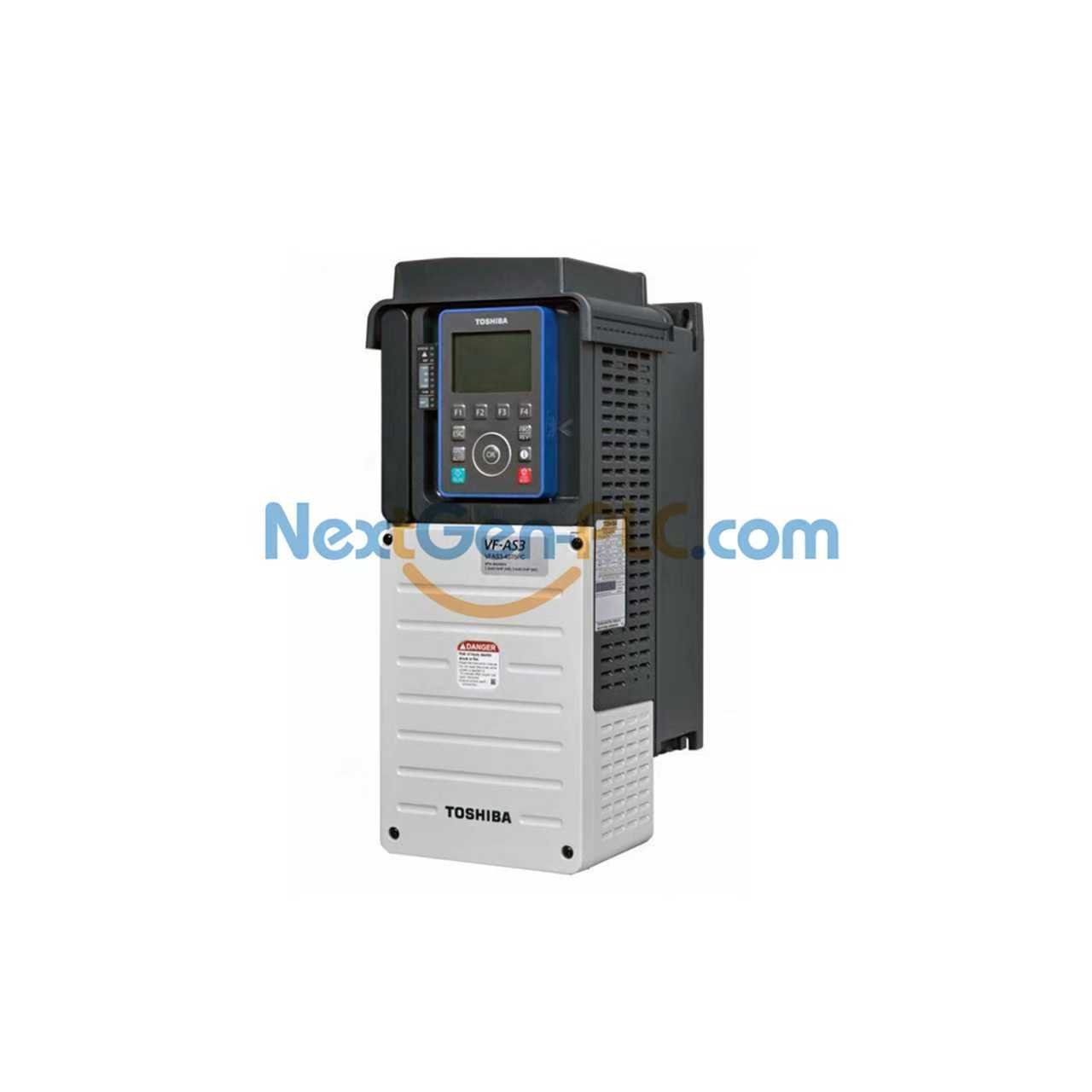

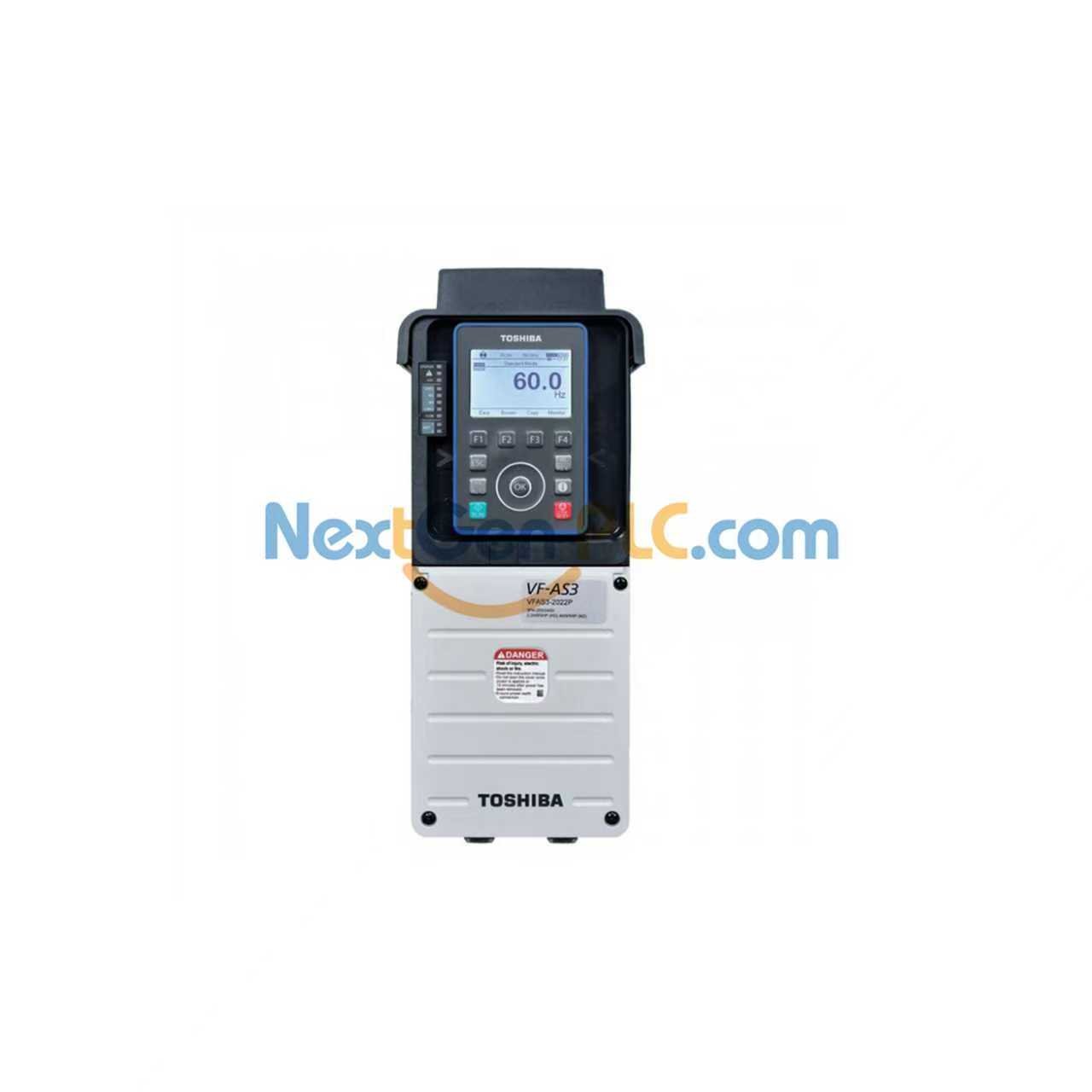

Toshiba AS3 VFAS3-4015PC Drive | 2HP AC High-Performance VFD

Toshiba AS3 VFAS3-4015PC: 2HP AC Drive with EtherNet/IP

Power and Input Specifications

• Brand: Toshiba VFAS3-4015PC, AS3 series, A1 frame size
• Voltage: 460VAC input and output, 3-phase, 2HP
• Current: 4A rating, 5.6A for variable torque
• Braking: Built-in dynamic braking
• Filter: Integrated EMI filter and DC reactor

Control and Performance

• Control modes: V/Hz, FOC with encoder, sensorless vector, torque mode
• Frequency range: 0.1Hz to 590Hz output
• Carrier frequency: 1kHz to 16kHz, field adjustable
• Motor types: 3-phase induction and permanent magnet AC
• STO: Safe Torque Off built-in

Communication and I/O

• EtherNet/IP: (2) RJ45 ports, 10/100 Mbps, embedded web server
• RS-485: (1) RJ45, Modbus RTU slave
• Digital inputs: 8 points, 24VDC, sink/source
• Digital outputs: 3 relay, 1 Form C SPDT, 2 Form A SPST, 2A each
• Analog inputs: 3 channels, ±10VDC or 0-20mA, 11-bit
• Analog outputs: 2 channels, 0-10VDC or 0-20mA, 10-bit
• Expansion: Optional EtherCAT, encoder, I/O cards

Environmental and Enclosure

• Enclosure: UL Type 1, IP20, panel or wall mount
• Temperature: -15°C to 50°C operating
• Frame: A1 size, compact footprint
• Battery: CR2032 installed, retains encoder data
• Hazard class: UN3091, lithium metal, 0.06g

Installation and Mounting

• Mount vertically on wall or panel, A1 frame holes
• Keep 50mm clearance top and bottom for cooling
• Use screw terminals, external fuse required
• Conduit box included for top wiring entry
• Separate Ethernet and power cables

What You Receive

• (1) Toshiba VFAS3-4015PC drive with reactor and filter
• (1) Conduit box kit, pre-installed
• (1) CR2032 battery, fitted
• Quick start guide, terminal labels
• Shipping: FedEx, UPS, DHL. Dispatch within 5 days
• Stock: In stock. 30-day returns accepted

Frequently Asked Questions

• Does VFAS3-4015PC run without an encoder?
  Yes. It runs V/Hz, sensorless vector, and open-loop torque.
• What protocols are supported?
  EtherNet/IP, Modbus TCP, Modbus RTU, and HTTP web server.
• Can I add EtherCAT later?
  Yes. Optional EtherCAT card fits A1 frame.
• What is the battery for?
  CR2032 keeps encoder settings and clock. Replace with D0-MC-BAT.
• Is this drive UL listed?
  Yes. UL Type 1, IP20, CE marked.
• Where is the manual?
  Download PDF below. Email us for EDS files.
