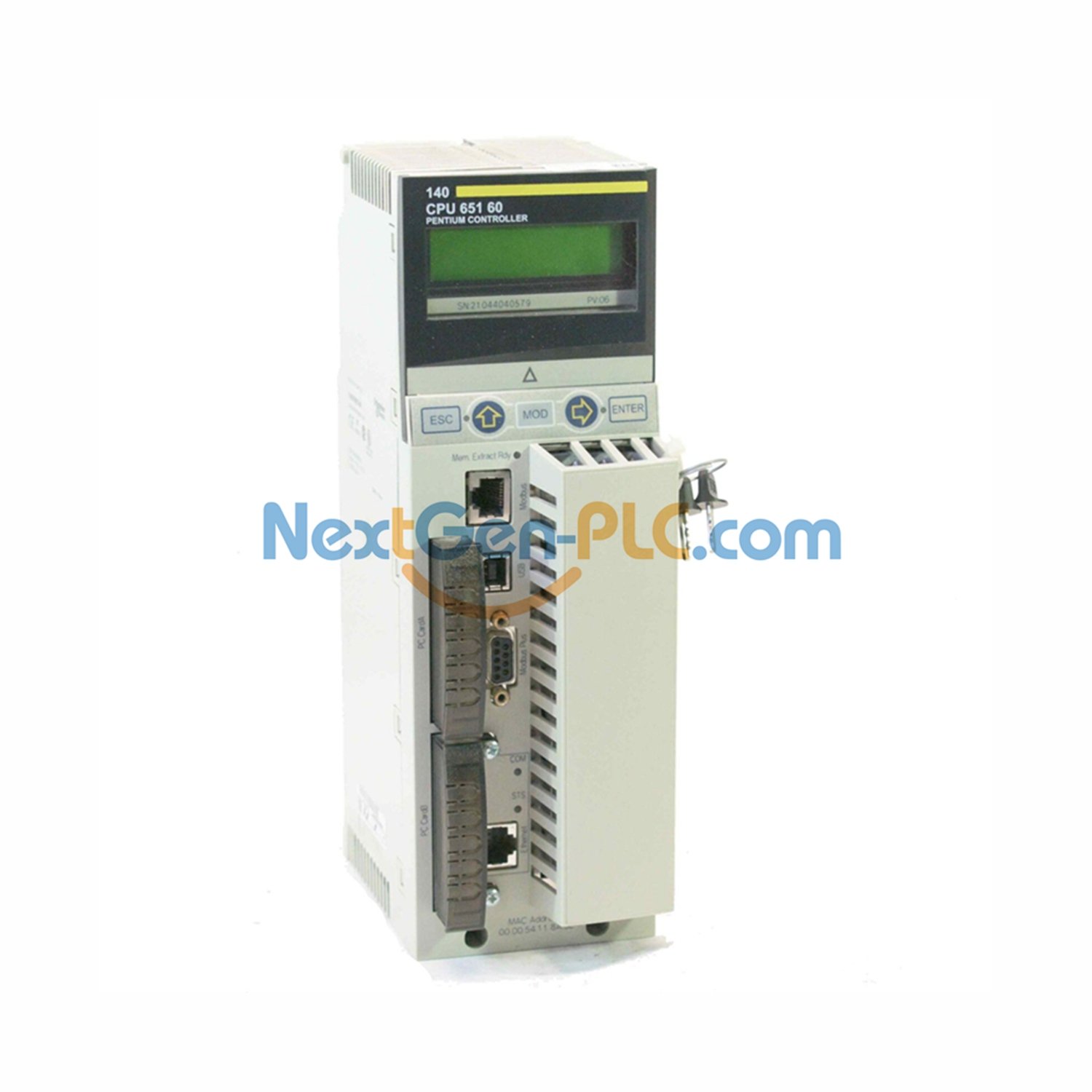

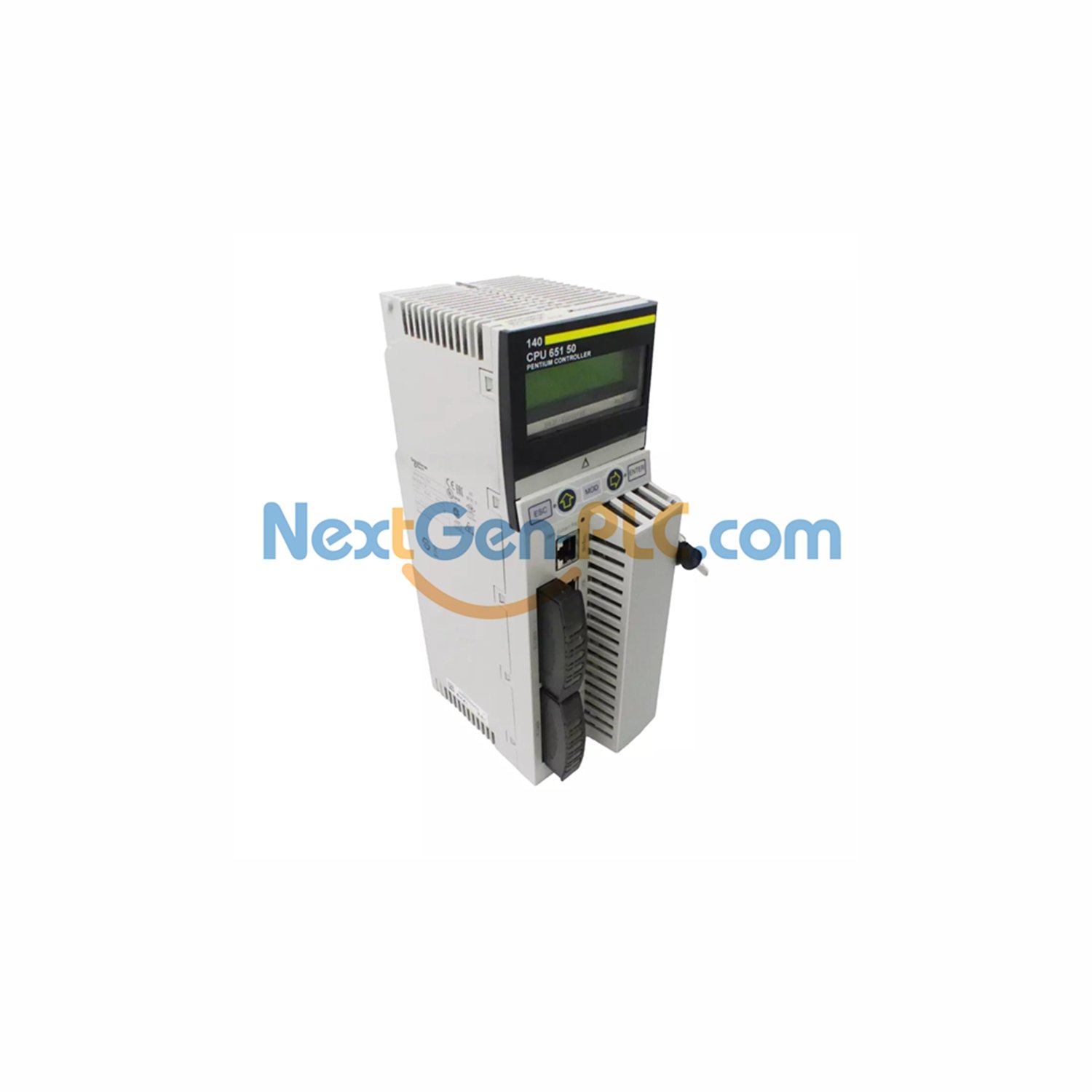

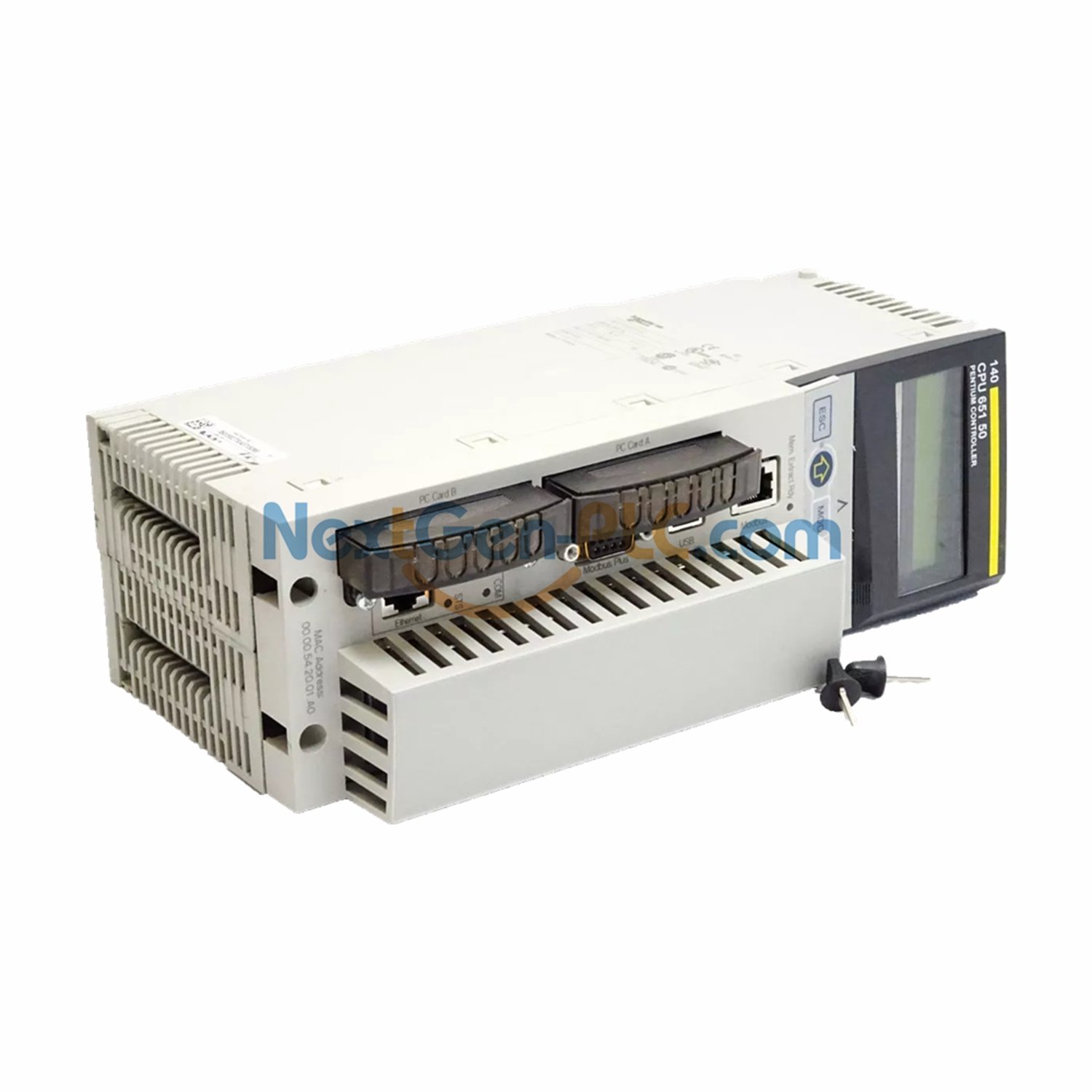

Schneider Electric Modicon Quantum 140CPU65150 Unity Processor

Schneider Electric Modicon Quantum Unity Processor

The Schneider Electric 140CPU65150 is a fast Unity processor for the Modicon Quantum platform. It runs at 166 MHz and has 768 kB of internal RAM. This CPU supports Ethernet, Modbus Plus, and handles very large I/O systems with ease.

Main Technical Details

• Brand & Model: This is the Schneider Electric 140CPU65150 CPU.
• Processor Speed: It has a 166 MHz clock frequency for quick logic solving.
• Memory: It includes 768 kB of RAM and can be expanded with PCMCIA cards.
• Task Handling: It can run 128 interrupt tasks and 4 auxiliary tasks.
• Speed Test: It can run over 10,000 instructions per millisecond.

Communication & Connections

• Built-in Ports: It has 1 Ethernet (RJ45), 1 Modbus Plus, 1 Modbus, and 1 USB port.
• Optional Modules: You can add up to 6 modules for more Ethernet, Profibus DP, or AS-Interface.
• Remote I/O: It supports 31 remote I/O stations via S908 or Ethernet networks.
• Distributed I/O: It can connect to 63 distributed I/O stations on Modbus Plus.

I/O Capacity & Expansion

• Local I/O: Local racks support an unlimited number of I/O (up to 26 slots).
• Remote I/O: It can handle 31,744 remote digital inputs and outputs.
• Analog I/O: Supports 500 analog points per Modbus Plus network and unlimited on Ethernet.
• Power Use: The module needs 2160 mA from the Quantum backplane.

Physical & Environmental Info

• LED Indicators: It has LEDs for Ethernet activity, collisions, and system status.
• Connectors: Ports include D-sub for Modbus Plus and RJ45 for Ethernet/Modbus.
• Certifications: It is approved by UL, CE, CSA, GOST, and for marine use.
• Packaging: Ships as one unit. Package weight is about 3.16 lbs (1.43 kg).

Common Questions (FAQ)

• Q: Is the 140CPU65150 new and genuine?
  A: Yes. We sell only 100% new, genuine Schneider Electric products.
• Q: What communication ports are built into this CPU?
  A: The 140CPU65150 has Ethernet, Modbus Plus, Modbus, and USB ports ready to use.
• Q: How many I/O points can it control?
  A: It can manage over 31,000 remote digital I/O points and unlimited local I/O.
• Q: Can you expand the memory?
  A: Yes. You can use PCMCIA memory cards to add more program and file storage.
• Q: What is the shipping and return policy?
  A: We ship in about 5 days via DHL, FedEx, or UPS. Unused items can be returned in 30 days.
