RX7i I/O Rack GE Fanuc IC698CHS217

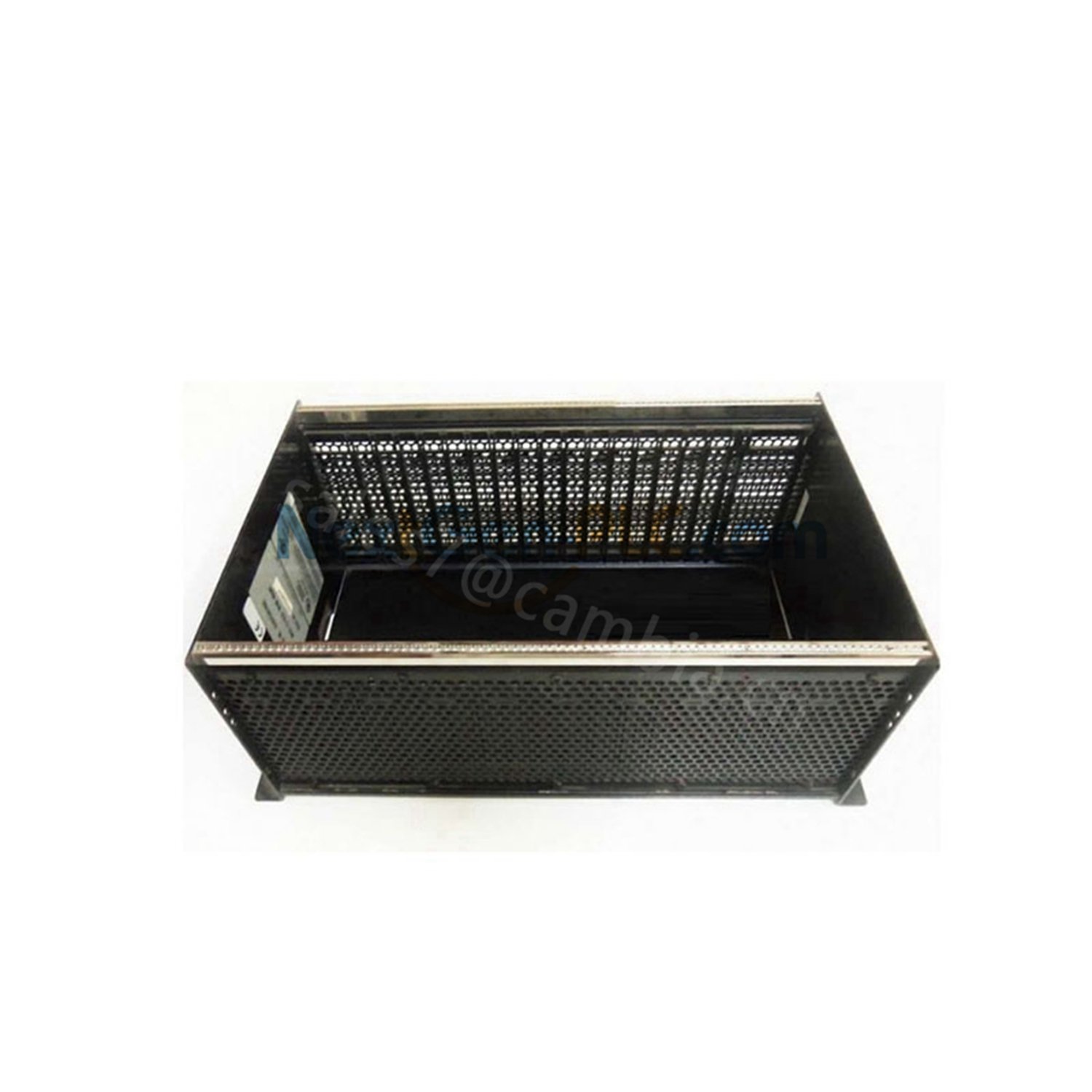

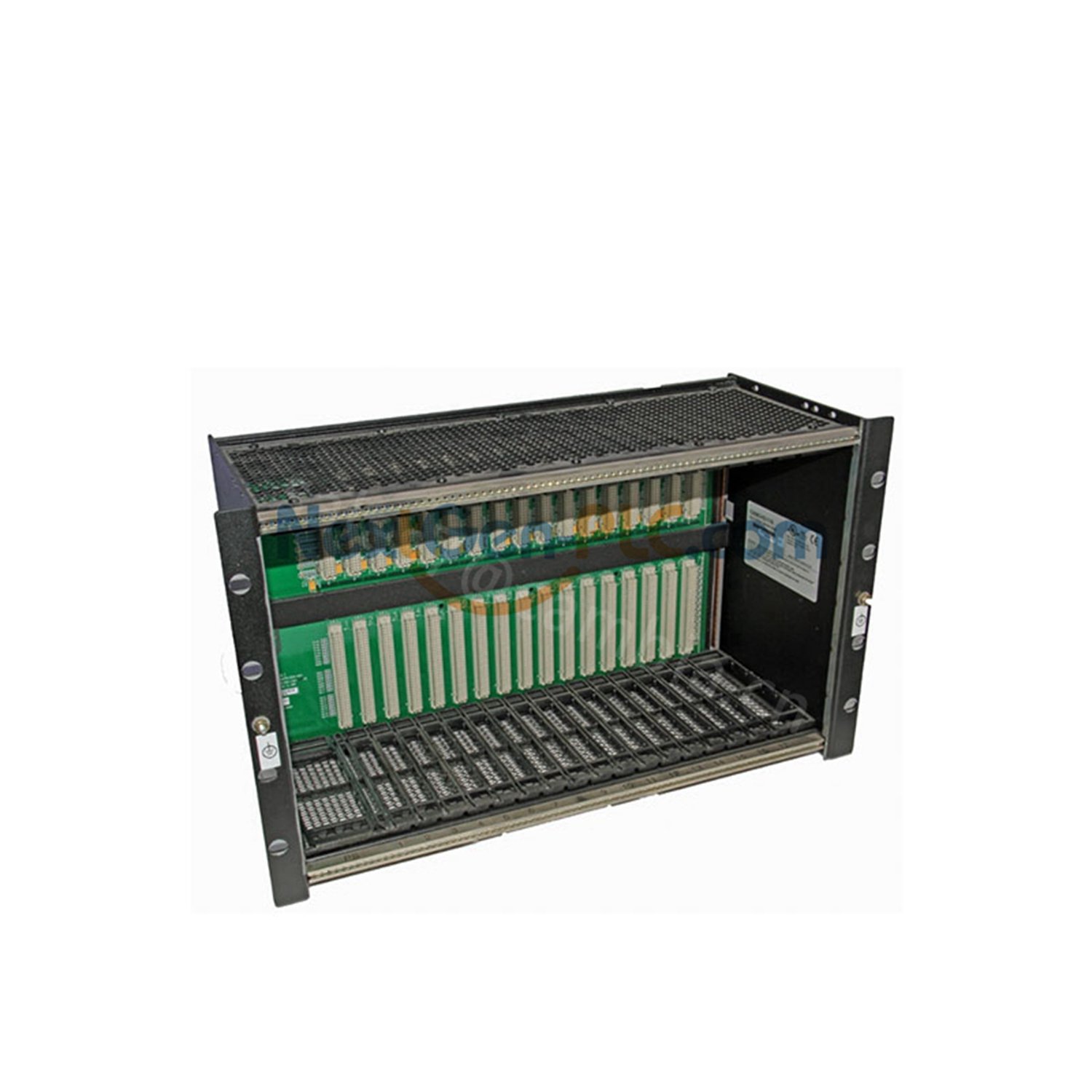

GE Fanuc IC698CHS217 Rx7i PACSystem 18-Slot Rear I/O Rack

The GE Fanuc IC698CHS217 is an 18-slot rear-mounted I/O rack for the Rx7i PACSystem. It supports Rx7i CPUs, Rx7i I/O modules, Series 90-70 I/Os, and VME modules. The rack offers both backplane and rear I/O access for flexible connections. Its open design fits IP54 or higher rated enclosures for safe industrial use.

Key Features

• 18-slot I/O rack with rear I/O access and backplane connectors
• Supports single-slot and double-slot modules with flexible combinations
• Power: 100W or 350W Rx7i power supplies
• Current draw: 20A at 5V DC (100W) / 60A at 5V DC (350W)
• VME64 base support and software configuration
• Optional fan assembly for cooling
• Slot-sensing design removes need for DIP switches or jumpers
• Shock resistance: 15 G for 11 ms duration
• Operating temperature: 0–50°C, humidity: 5–95% non-condensing

Technical Specifications

• Brand: GE Fanuc
• Series: Rx7i PACSystem
• Part Number: IC698CHS217
• Application: Rx7i System
• Voltage: 5 to 12 Volts DC
• Power Supply: 350 Watts
• Current Rating: 60 Amps
• I/O Capacity: 18 slots, supports 15 single-slot or 8 double-slot modules
• Fan Assembly: Optional
• Mounting: Rear-mount
