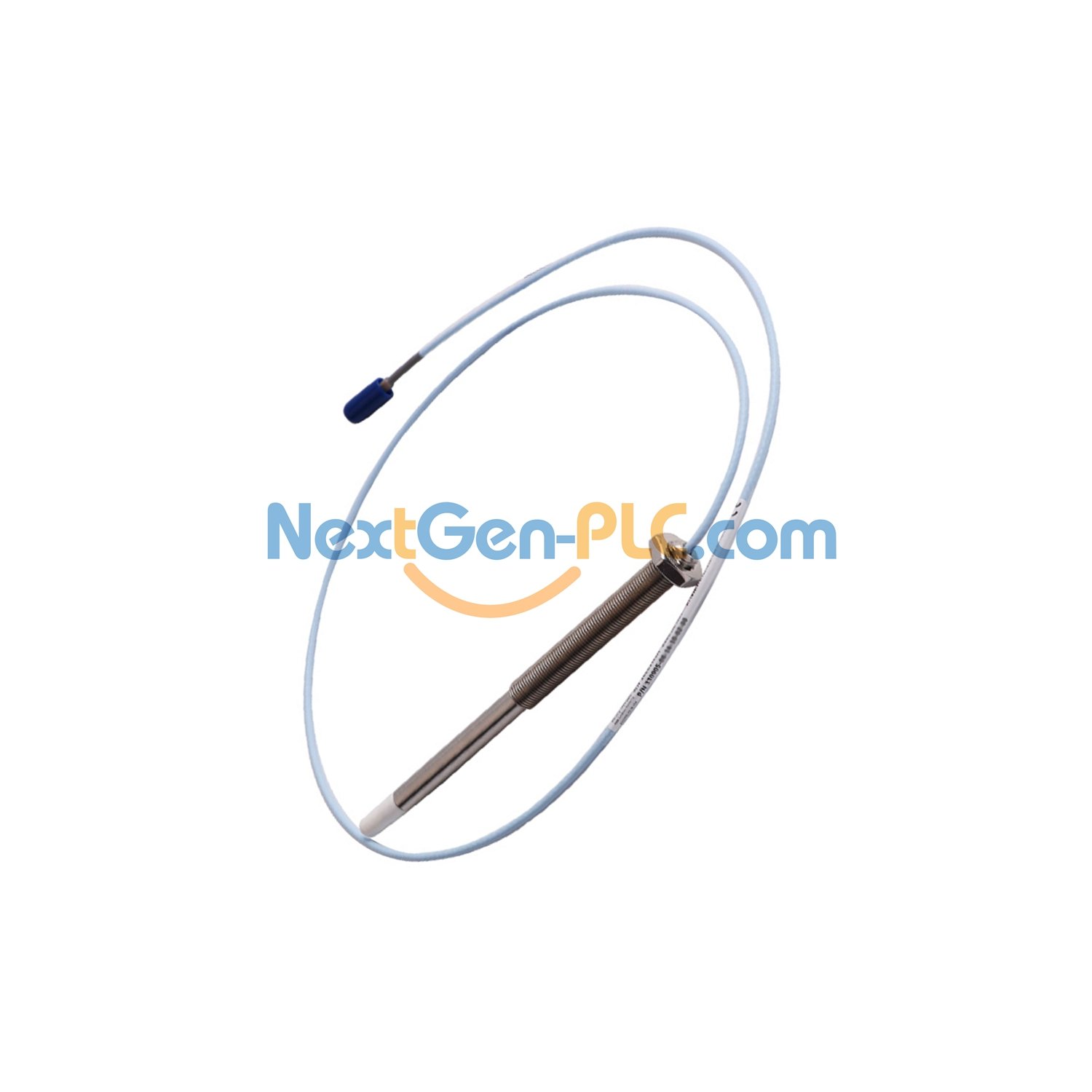

Bently Nevada 330705-02-18-10-02-CN 3300 XL 11mm Reverse Mount Probe
Quick Overview
This probe from Bently Nevada is built for tough industrial jobs. It’s a 3300 XL 11mm reverse mount type, made in the USA. Good for getting reliable data in harsh places.
Model & Key Options
Full Model: 330705-02-18-10-02-CN
Type: 3300 XL 11mm reverse mount
Connector: Mini ClickLocTM coaxial (Option 02)
Length: 1.0m (3.3ft, Option 10)
Cert: CN-specific (guides in downloads)
What’s Inside
Tip: PPS plastic (tough material)
Case: AISI 304 stainless steel (strong metal)
Cable: 75Ω triaxial, FEP-insulated (available lengths: 1m, 5m, 9m)
Working Conditions
Temp: Works from -52°C to +177°C (-62°F to +351°F). Note: Below -34°C may break seals
Weight: 0.07kg
DC Resistance: 5.9 ± 0.5 ohms (for 1.0m length)
Install Tips
Torque: Tighten by hand. Max 0.565 N•m (5 in•lb)
Bend: Keep bends over 25.4mm (1.0in) wide
Uses & Fits
Works with most vibration systems. Used for:
Checking turbines
Tracking compressors
Monitoring big machines
Package & Guarantee
In Box: Probe, quick guide, cert papers
Warranty: 1-year coverage (details in manual)
Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
