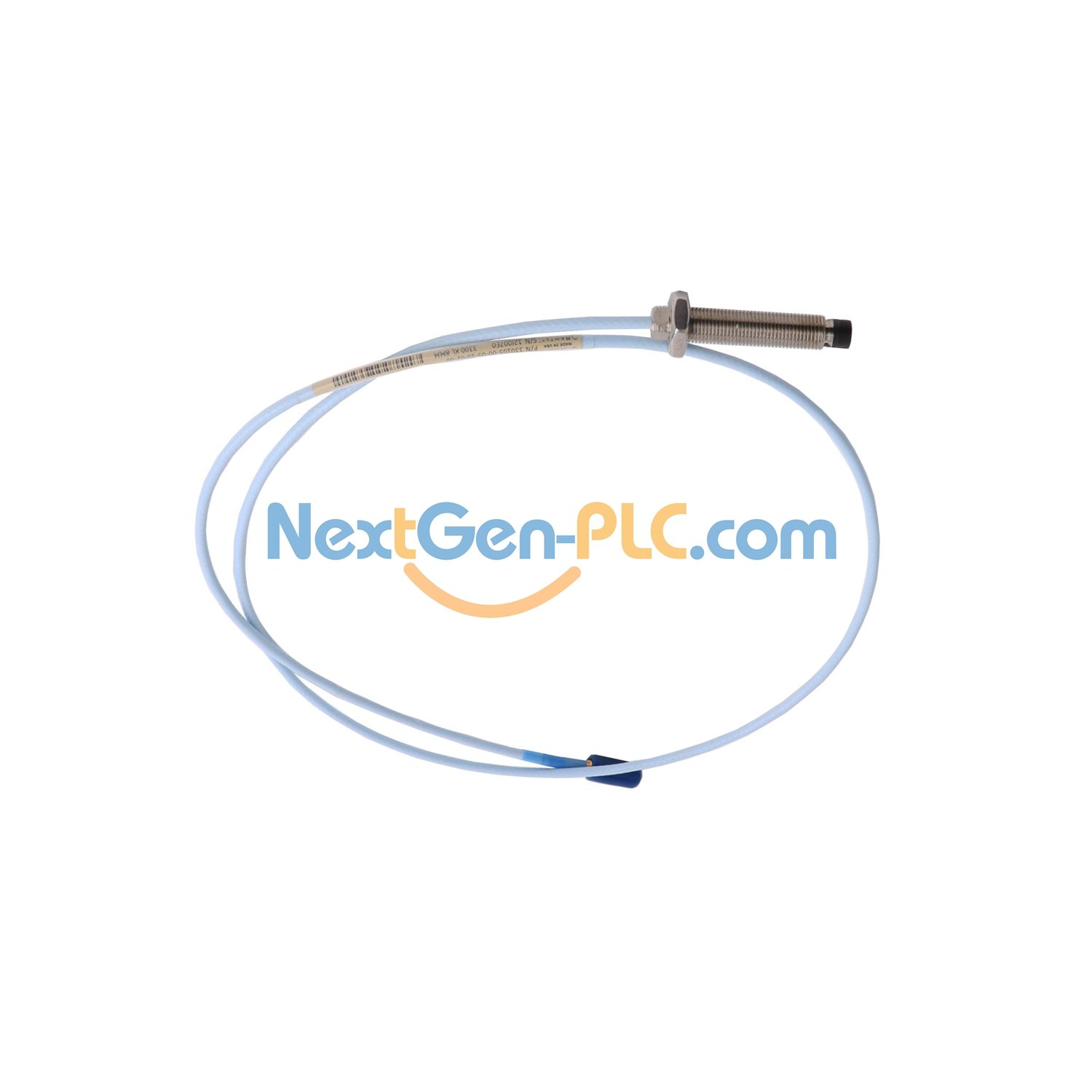

Bently Nevada 330709-000-080-10-02-00 Probe – Keep Machines Running Smooth

What It’s For

This probe checks how machine parts move—like shafts or gears. It works in very hot or cold places, made to last long and give clear data. Good for factories, power plants, and big machines.

Tech Stuff at a Glance

Brand: Bently Nevada (USA-made)
Model: 330709-000-080-10-02-00
Type: 3300 XL 11mm Proximity Probe
Thread: M16 x 1.5 (no armor)
Lengths:
No threads: 0mm
Case: 80mm (longer than some models!)
Total: 1m (3.3ft)
Cable: 75Ω triaxial, FEP-insulated (tough material)
Connector: Mini ClickLoc (easy to plug in)
Resistance: 5.9 ± 0.5 ohms (1m cable)

Use Rules

Target Size: Flat parts need at least 30.5mm (1.2in) wide. Shafts need at least 152mm (6in) thick.
Temp: Works from -52°C to 177°C (-62°F to 351°F). Avoid temps below -34°C (30°F) to keep it safe.

How to Put It In

Tighten Case: Use 63.3 N•m (560 in•lb) force.
Connector: Just finger-tight (max 0.565 N•m / 5 in•lb).
Bend: Don’t fold it smaller than 25.4mm (1in) radius.
Screw In: Go up to 24mm deep.

Box Contents

1x 330709-000-080-10-02-00 probe
1x 1m triaxial cable (with ClickLoc)
1x quick guide (easy steps)
1x material note (PPS tip, 304 stainless case)

Warranty

1-year warranty covers problems from making. No coverage for damage from wrong use.

Where It’s Used

Steel Mills: Checks 160mm shafts, cuts stops by 35%.
Power Plants: Works at 170°C to track compressors.
Pump Stations: Monitors 35mm flat parts, saves 20% repair time.
Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
