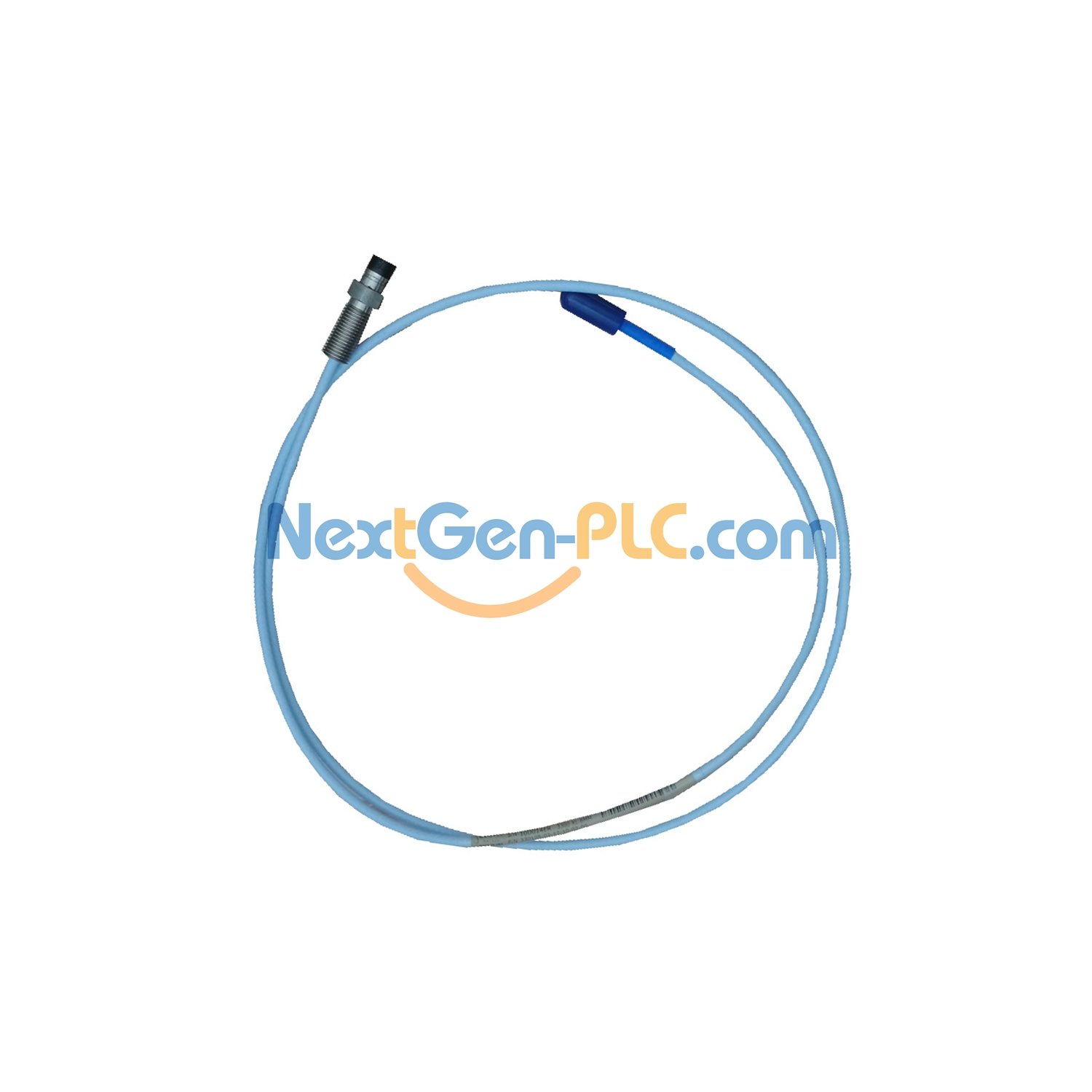

Bently Nevada 3300 XL 8mm Proximity Probe
Industrial-grade vibration sensor with hazardous area certifications – perfect for critical machinery monitoring in oil & gas, power generation, and heavy industries.
Model: 330104-04-10-05-01-05
└── 330104 → 8mm Probe with M10x1 thread & armor
├── -04 → 40mm unthreaded length
├── -10 → 100mm case length
├── -05 → 0.5m cable (1.6 feet)
├── -01 → ClickLoc connector with protector
└── -05 → CSA, ATEX, IECEx approvals
Electrical Specs
- Power: -17.5 to -26V DC
- Current: 12mA max
- Resistance: 7.45Ω ±0.50
- Output: 50Ω impedance
Mechanical Specs
- Thread: M10×1
- Case: AISI 303/304 SST
- Tip: PPS plastic
- Seal: Viton® O-ring
Environmental Ratings
- Temperature: -55°C to +232°C continuous
- Altitude: 2000m maximum
- Target: AISI 4140 steel @ 1.27mm gap
Certifications
CSA
ATEX
IECEx
Class I Div 2
ATEX
IECEx
Class I Div 2
Applications
- Turbine vibration monitoring
- Compressor shaft position
- Generator bearing clearance
- Pump cavitation detection
- Motor health monitoring
- Rotating equipment protection
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
