Proximity Armored Probe | Bently Nevada – 330104-00-08-10-01-CN

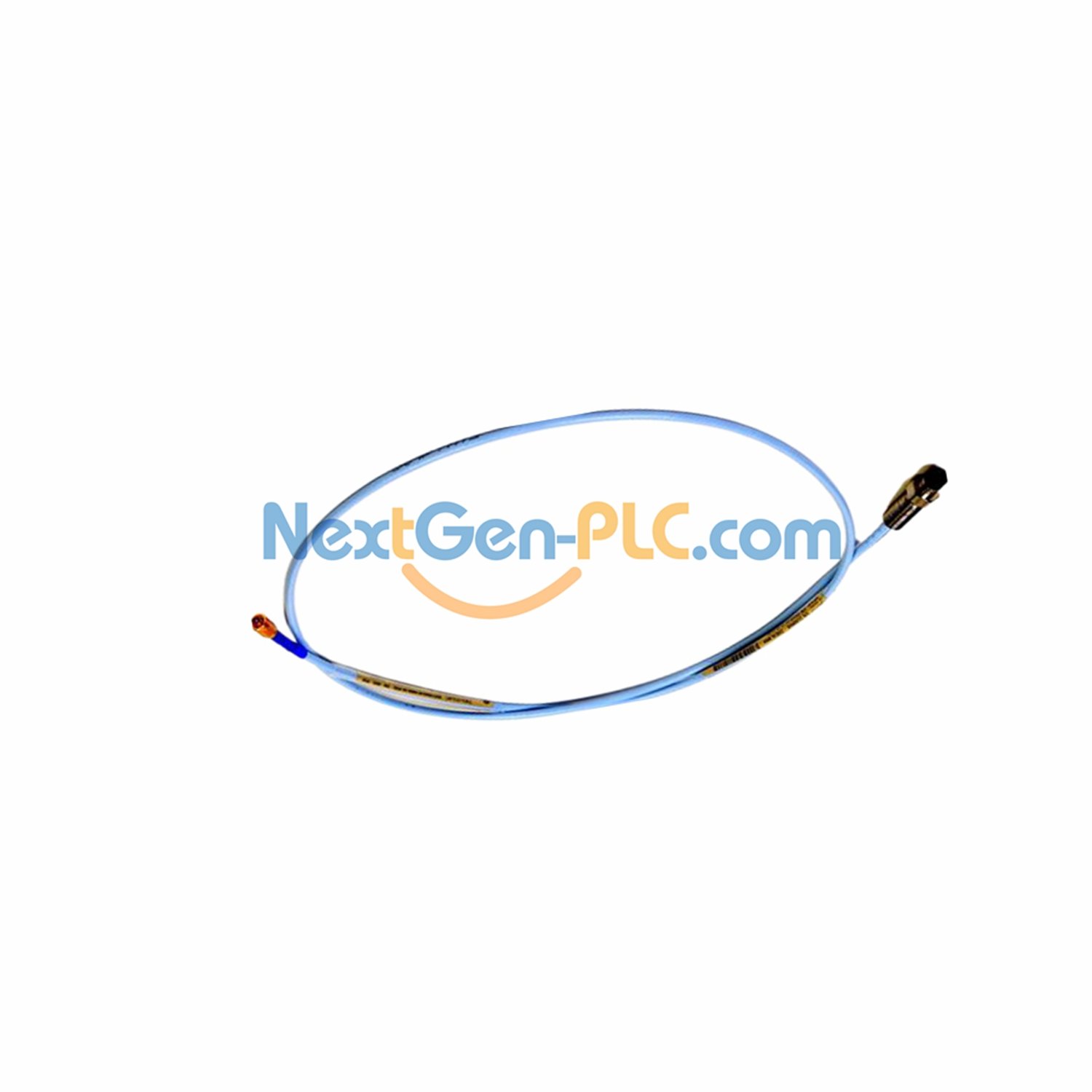

Bently Nevada 330104-00-08-10-01-CN 3300 XL 8mm Proximity Probe

Quick Overview

A non-contact sensor for industrial machine checks. Built with a PPS tip (polyphenylene sulfide) and a strong stainless steel body (AISI 303/304). A Viton O-ring seals pressure between the tip and body for steady performance.

Brand & Model

Brand: Bently Nevada
Model: 330104-00-08-10-01-CN

What the Model Numbers Mean

-00: No unthreaded length (0mm)
-08: Body length (80mm)
-10: Total cable length (1.0m/3.3ft)
-01: Connector type (mini coaxial ClickLoc with protector, standard cable)
-CN: Country-specific approval

Key Details

Probe resistance: 7.59 ± 0.50 Ω (1.0m cable)
Power needed: -17.5Vdc to -26Vdc (12mA max; -23Vdc to -26Vdc with barriers)
Output resistance: 50 Ω
Sensitivity: <2mV change per volt input
Work temp: 18°C–27°C (64°F–80°F)
Max height: 2000 meters

Install Tips

Works with 3300 5mm or 3300 XL 8mm probes and cables. Use -24Vdc power and 10kΩ load. Avoid voltages over -23.5Vdc to keep range.

What It Works With

Only for 3300 XL 8mm systems. Accurate with Bently Nevada AISI 4140 steel targets.

Certifications

Comes with CN country approval for local rules.

What’s in the Box

3300 XL 8mm probe, standard cable, user manual.
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
