Output Module – GE Fanuc IC200MDL940

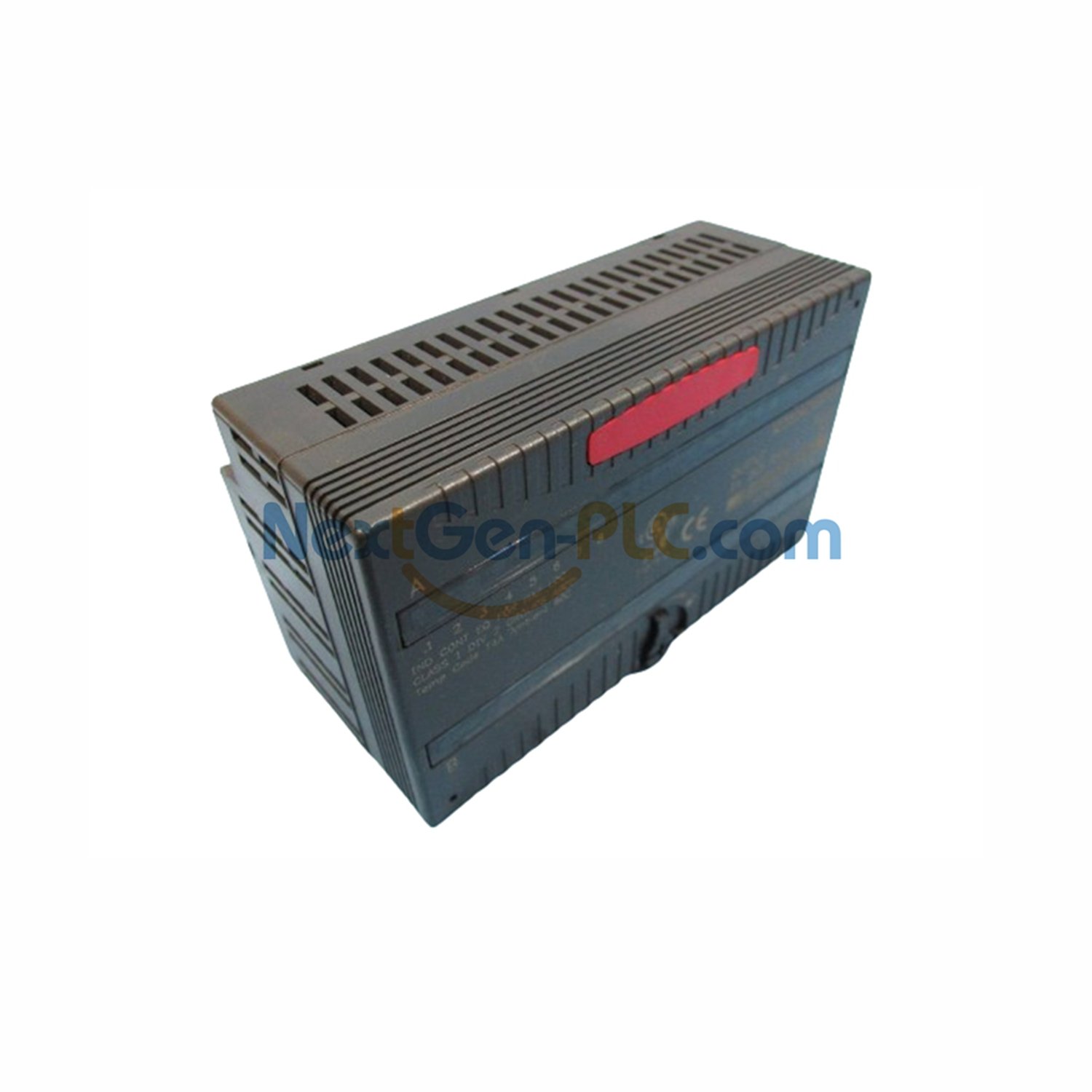

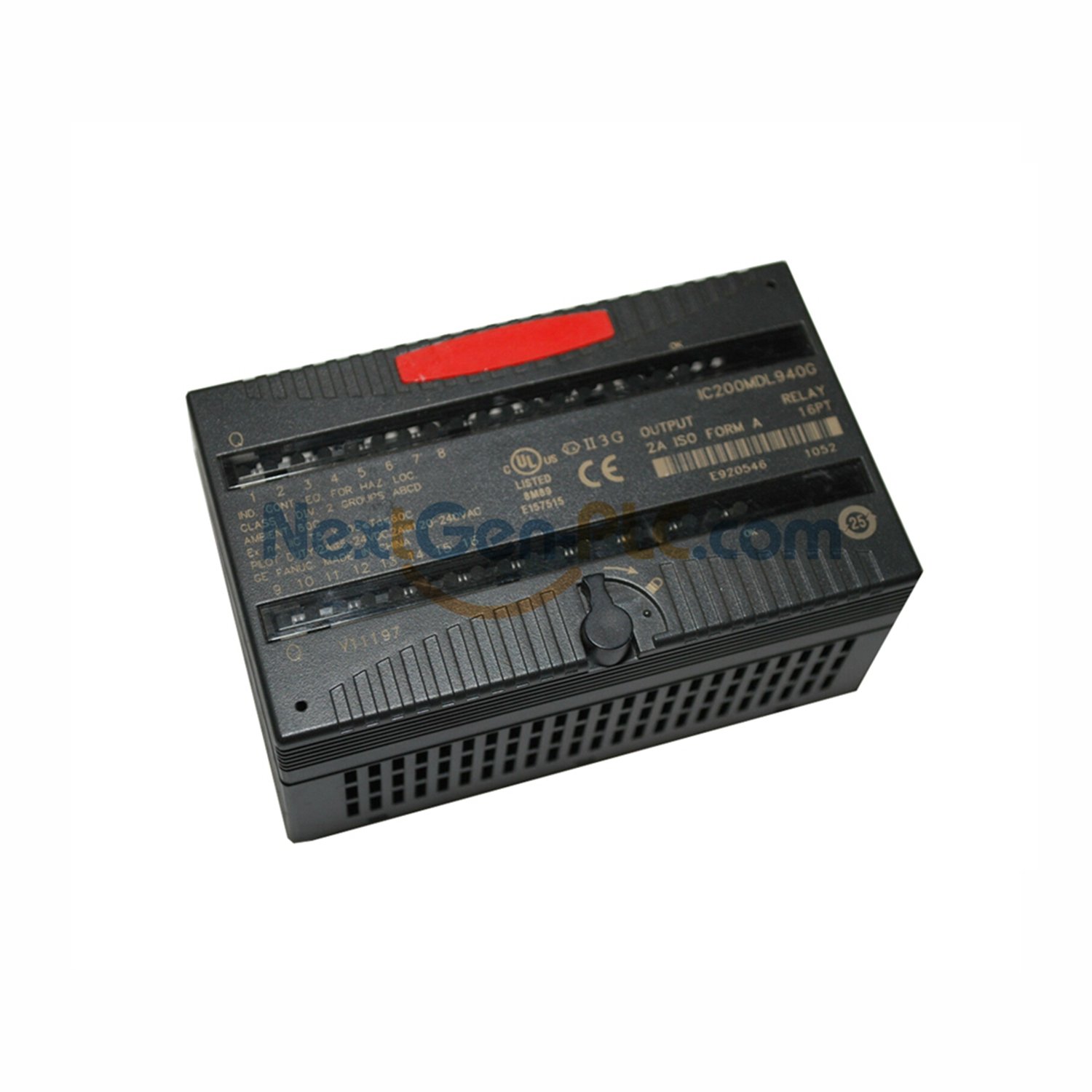

GE Fanuc IC200MDL940 Relay Output Module

The IC200MDL940 is a Versamax relay module. It has 16 relay outputs. Each output is individually isolated. This allows different voltage sources.

Key Features

IC200MDL940 handles both AC and DC power. It works with 125VDC and 265VAC. Each relay can switch 2 amps. All contacts are normally open.

The module has LED indicators. These show each point’s status. It meets CE and cULus standards. Safe for Class 1 Division 2 areas.

Technical Specifications

Electrical Data

Response time is 10 ms maximum. Switching frequency is 20 cycles per minute. Backplane current is 490 mA maximum. Voltage drop is 0.3V maximum.

Contacts are silver alloy. Relay type is fixed coil. Load current is 10 mA minimum. Temperature range is 0-60°C.

Isolation and Protection

Each output is isolated. Isolation rating is 250V AC continuous. Withstands 1500V AC for 1 minute. No internal fuses included.

Use external protection with inductive loads. Separate power wiring from control wiring. This prevents noise and interference.

Installation

Mount in Versamax systems. Needs external power for loads. Use with relays, solenoids, and lamps. Includes lock/unlock lever.

FAQ

How many relay outputs?
16 individually isolated relays.

What voltages can it handle?
125VDC and 265VAC systems.

Current rating per point?
2 amps maximum per relay.

Are contacts isolated?
Yes, each output is fully isolated.

New and genuine?
Yes, all products are new and authentic.

Shipping time?
We ship within 5 business days.

Return policy?
30-day returns accepted.
