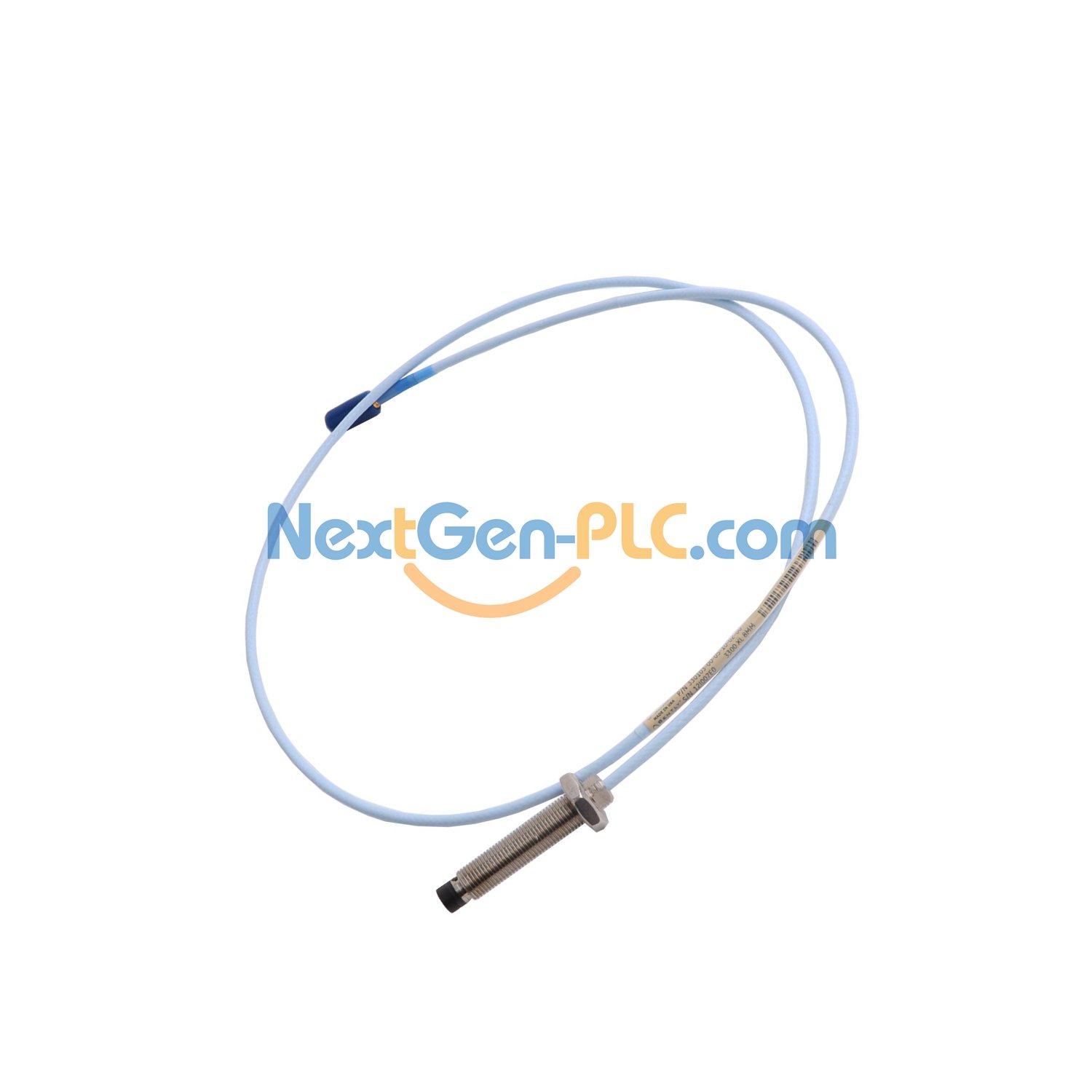

Bently Nevada 330104-00-08-10-02-05 3300 XL 8mm Proximity Probe

Description

A non-contact sensor for industrial machine checks. Features a PPS tip (polyphenylene sulfide) and a durable stainless steel body (AISI 303/304). A Viton O-ring seals pressure between the tip and body for stable use.

Brand & Model

Brand: Bently Nevada
Model: 330104-00-08-10-02-05

Model Suffix Breakdown

-00: Unthreaded length (0mm)
-08: Body length (80mm)
-10: Total cable length (1.0m/3.3ft)
-02: Connector type (mini coaxial ClickLoc, standard cable)
-05: CSA, ATEX, IECEx approvals

Key Specifications

Probe resistance: 7.59 ± 0.50 Ω (1.0m cable)
Power supply: -17.5Vdc to -26Vdc (12mA max; -23Vdc to -26Vdc with barriers)
Output resistance: 50 Ω
Sensitivity: <2mV change per volt input
Operating temp: 18°C–27°C (64°F–80°F)
Max altitude: 2000 meters

Installation Guide

Works with 3300-series 5mm or 3300 XL 8mm probes and extension cables. Use -24Vdc power and 10kΩ load for best results. Avoid voltages above -23.5Vdc to keep linear range.

Compatibility

Designed for 3300 XL 8mm systems only. Accuracy applies to Bently Nevada AISI 4140 steel targets.

Certifications

Approved for CSA, ATEX, IECEx for safe industrial use.

Package Includes

3300 XL 8mm probe unit, standard cable, and user manual.
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
