New 8 mm Probe | Bently Nevada – 330101-00-20-05-01-CN

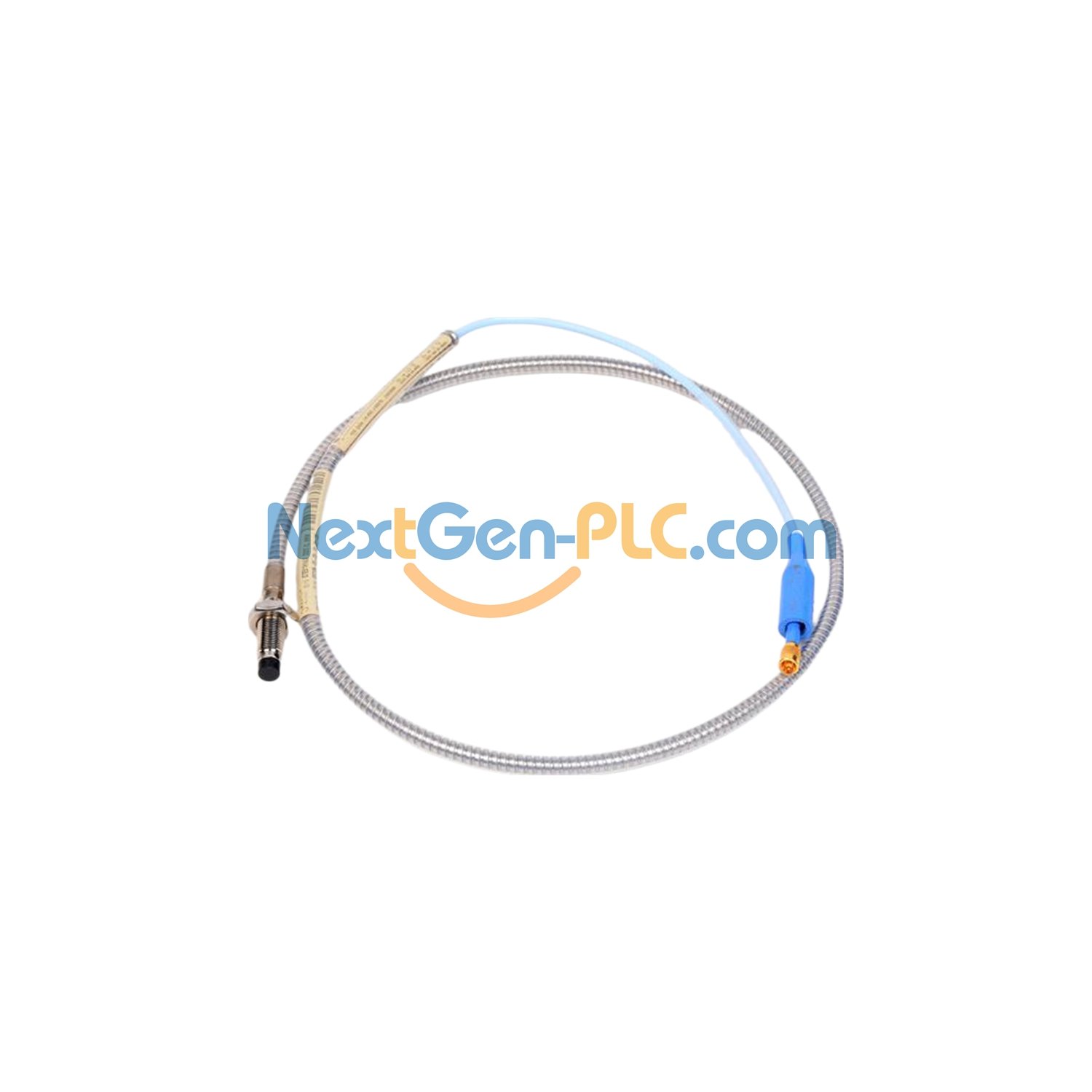

Bently Nevada 3300 XL 8mm Vibration Probe (330101-00-20-05-01-CN)

PRODUCT HIGHLIGHTS

• ✔ 8mm rugged probe design
• ✔ 3/8-24 UNF threaded connection
• ✔ Patented TipLoc and CableLoc technology
• ✔ 75 lbf cable pull strength
• ✔ Optional FluidLoc available

MODEL DECODER

KEY SPECIFICATIONS

• Range: 0.25-2.3mm (10-90 mils)
• Sensitivity: 7.87V/mm ±5%
• Temp range: -52°C to +177°C
• Resistance: 7.45Ω ±0.5Ω
• Material: PPS tip, 303/304 SST case

INSTALLATION TIPS

• Optimal gap: 1.27mm (50 mils)
• Max cable run: 305m (1000ft)
• Use shielded triad cable

TYPICAL APPLICATIONS

• Industrial turbines
• Large pumps
• Heavy compressors
• Power generation

PACKAGE CONTENTS

• 8mm vibration probe
• ClickLoc connector with protector
• 0.5m standard cable
• Installation guide

Made in USA – Quality you can trust

Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
