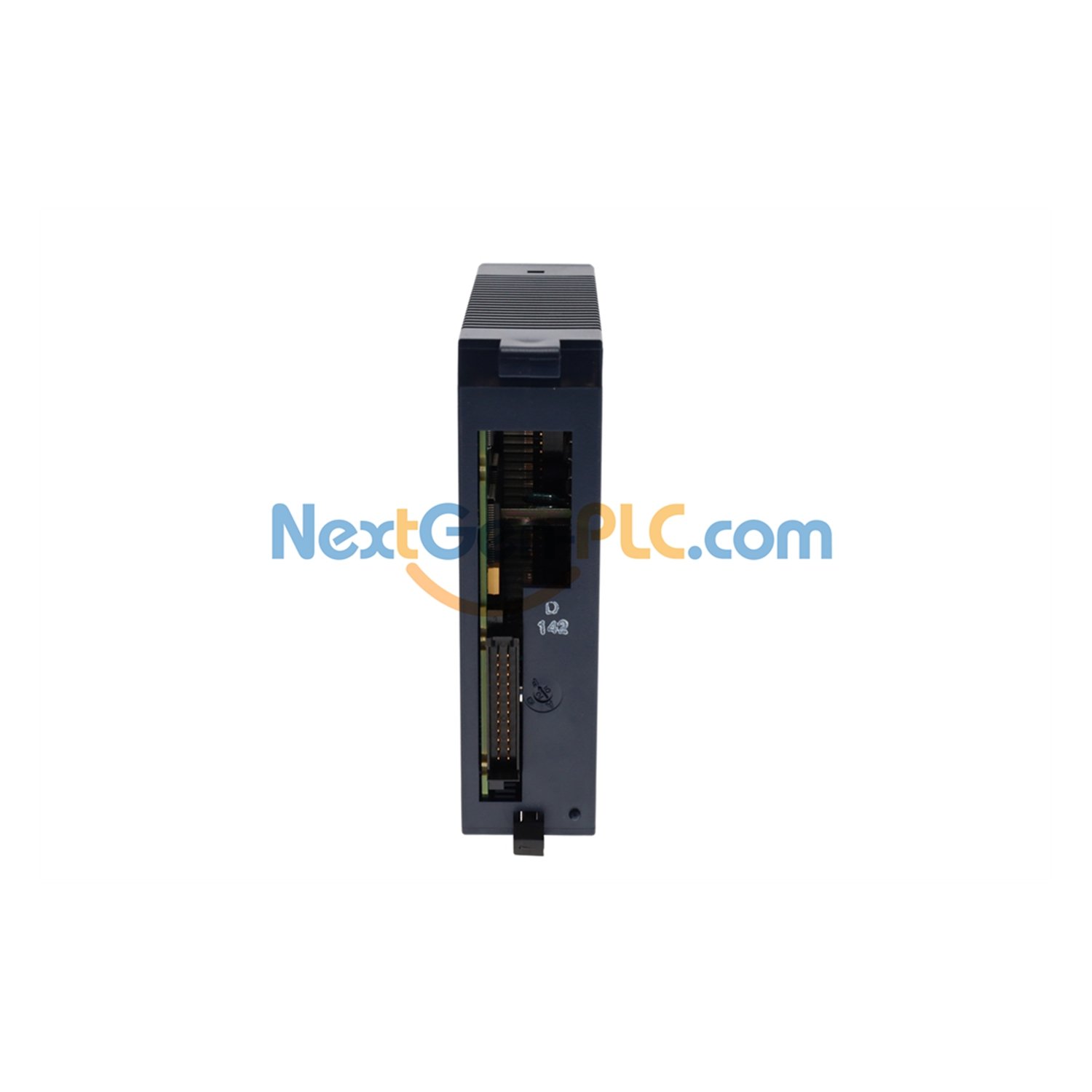

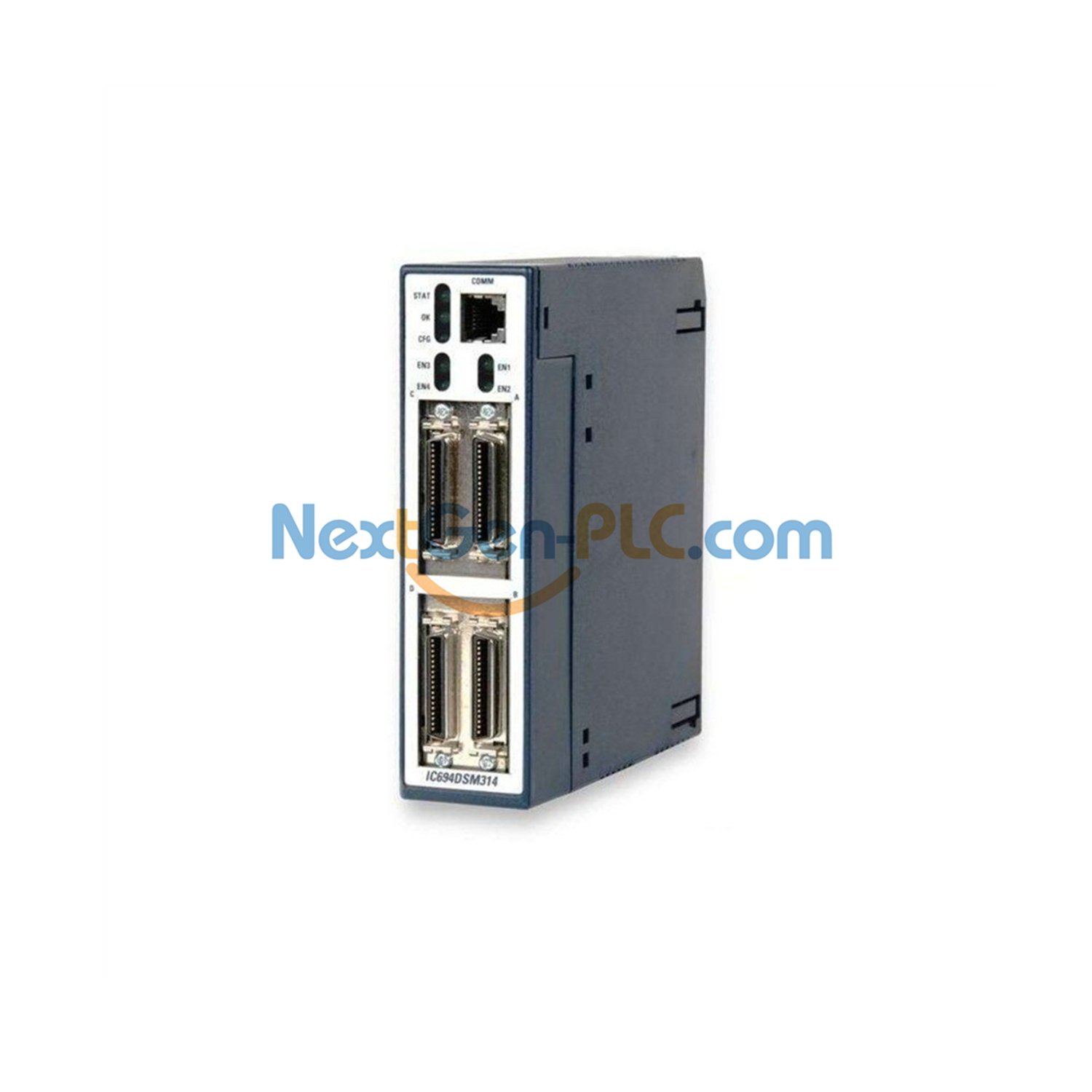

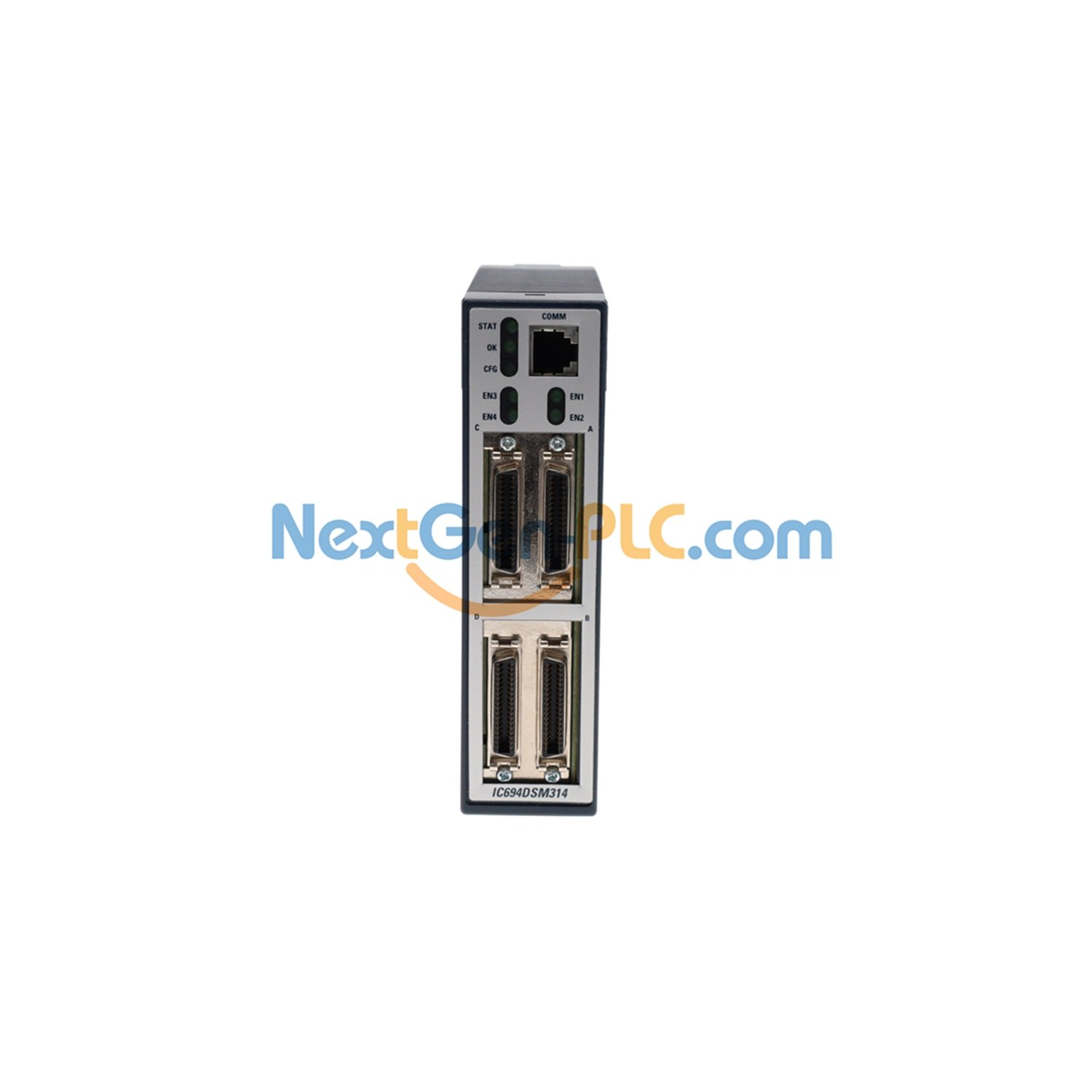

GE Fanuc IC694DSM314 RX3i Motion Mate Module

Product Overview

The IC694DSM314 is an optional motion mate module for RX3i PLCs.

It works with all RX3i CPUs and supports both standard and follower control loops.

The module supports electronic CAM functions for precise motion control.

Install in an RX3i serial expansion rack or a Series 90-30 expansion rack.

Do not remove or insert the module while the rack has power applied.

The module ensures reliable motion control when integrated with I/O modules and CPUs.

Technical Specifications

• • Manufacturer: GE Fanuc
  • Series: RX3i PacSystems
  • Part Number: IC694DSM314
  • Product Type: Motion Mate Module
  • Compatible CPUs: All RX3i CPUs
  • Supported Expansion Racks: RX3i Serial, Series 90-30
  • Hot Swapping: Not Supported
  • Control Loop Modes: Standard, Follower
  • Electronic CAM: Supported
  • Power: 800 mA @ 5VDC
  • External Controller Load: Additional 500 mA @ 5VDC
