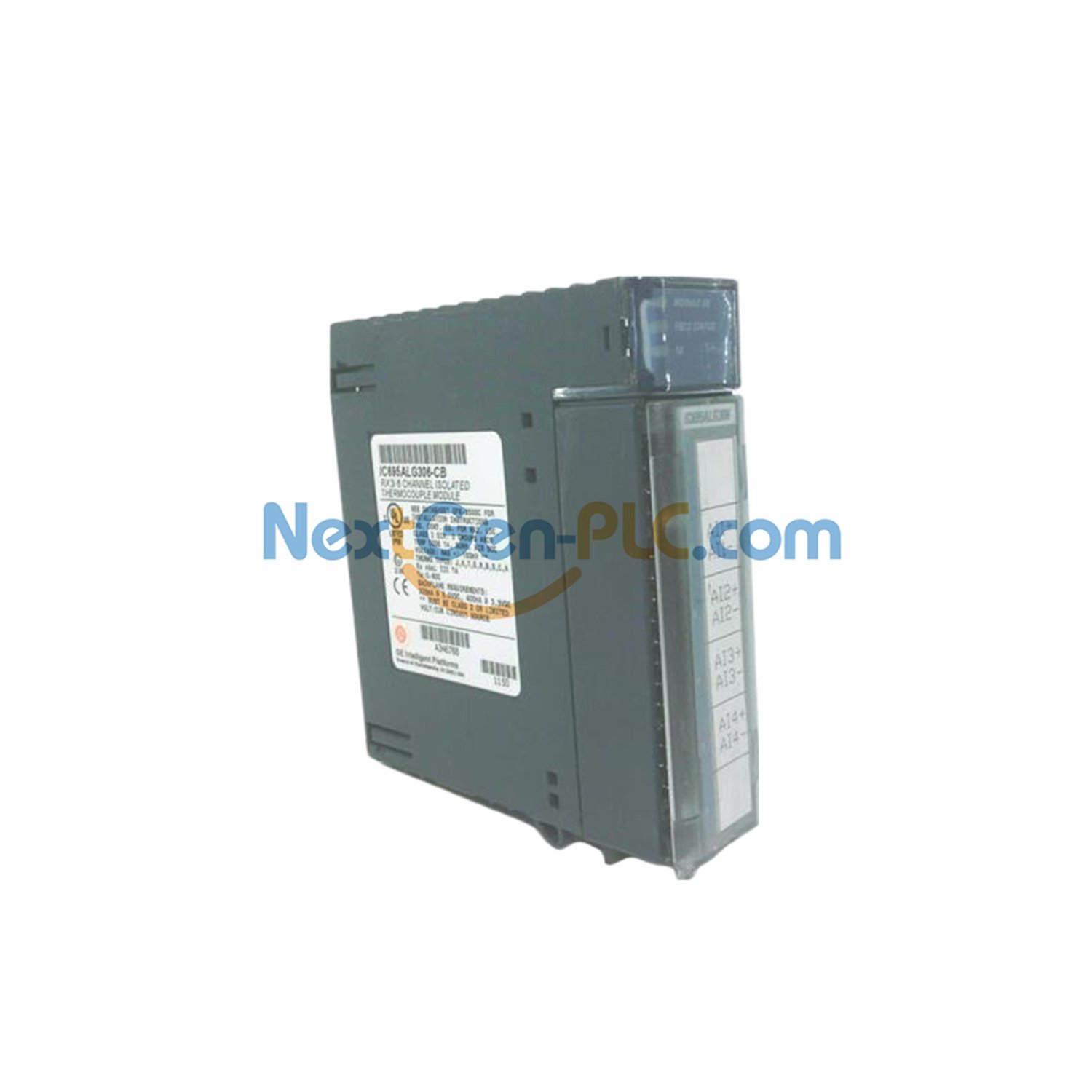

GE Fanuc IC695ALG306 – Isolated Thermocouple Input Module
Key Features
- 6 isolated channels for thermocouple inputs
- Works with RX3i CPU firmware 5.5+
- Supports 9 thermocouple types (B, C, E, J, K, N, R, S, T)
- Fast 15-120ms update rate
Technical Specifications
| Input Voltage | ±150mV or ±50mV |
| Power | 3.3V: 400mA, 5V: 150mA |
| Resolution | 11.5 to 16 bits |
| CJC Update | 20Hz fixed rate |
Temperature Ranges
| Type K | -270°C to 1372°C |
| Type J | -210°C to 1200°C |
| Type T | -270°C to 400°C |
| Type B | 300°C to 1820°C |
Compatible Terminal Blocks
- Box-style: IC694TBB032
- Spring-style: IC694TBS032
- Extended box-style: IC694TBB132
- Extended spring-style: IC694TBS132
Diagnostics
- Flash fail detection
- Watchdog monitoring
- RAM fail reporting
