Input And Output Block GE Fanuc IC660EBD120

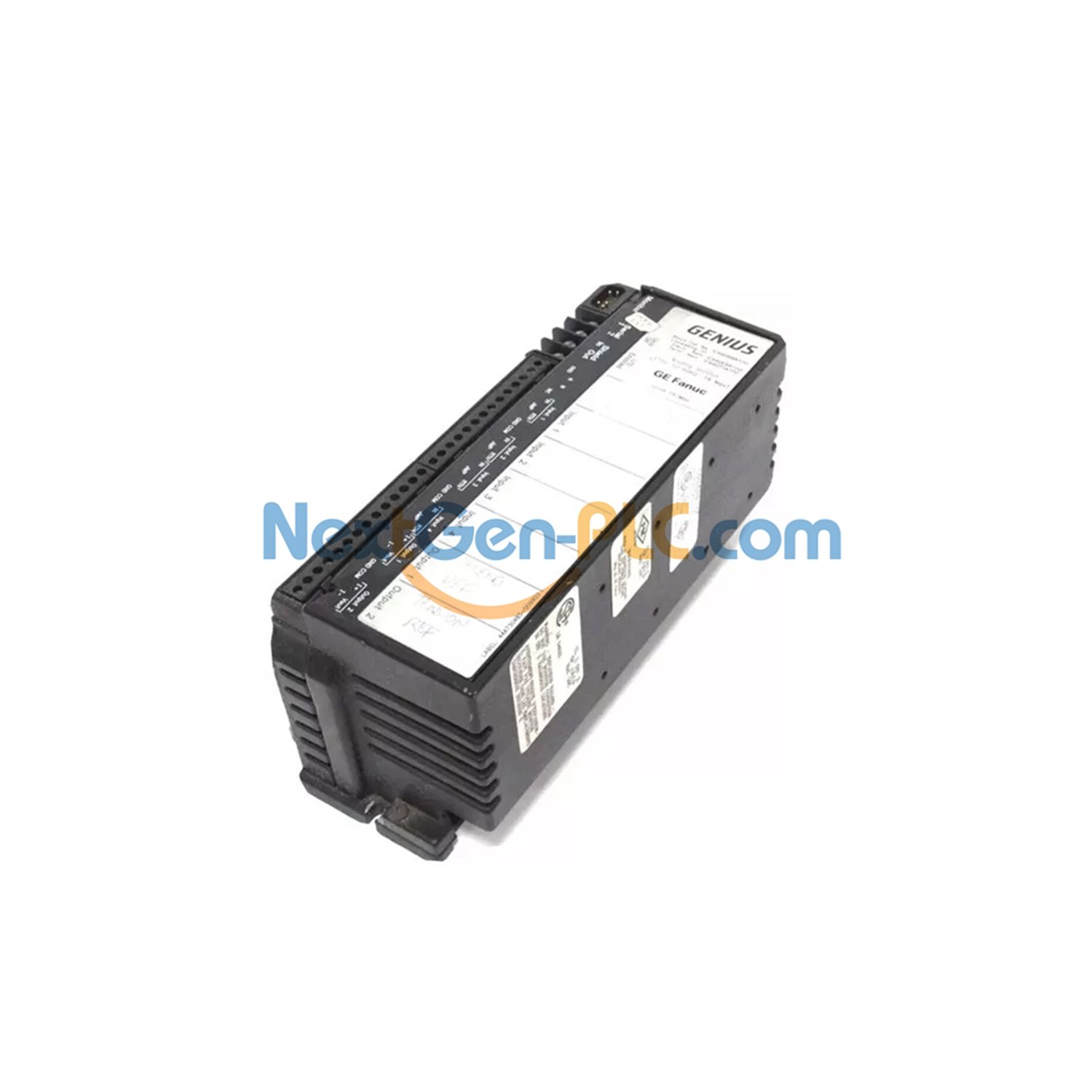

GE Fanuc IC660BBD120 High-Speed Counter I/O Module

Core Technical Specifications

• Brand & Manufacturer: GE Fanuc
• Model: IC660BBD120 High-Speed Counter Block
• Product Series: Genius I/O (Series 90-70)
• Number of Inputs: 12 discrete inputs
• Input Voltage Range: 5 VDC to 30 VDC
• Maximum Input Frequency: 200 kHz
• Number of Outputs: 4 discrete outputs
• Output Voltage: 4.75 VDC to 5.25 VDC
• Output Current (per point): 200 mA
• Output Inrush Current: 3 A for 10 ms
• Special Outputs: 1 Oscillator Output (3.8V @ 4mA) & 1 dedicated 5VDC output
• Supported Counter Modes: 1, 2, or 4 independent counters

High-Speed Performance & Filtering

• The module handles a maximum count rate of 200 kHz with the high-frequency filter active.
• A selectable low-frequency filter mode supports applications up to 40 Hz.
• Input response time is a fast 0.5 ms, plus any configured filter delay.
• Minimum Pulse Width: 2.5 µs (High-Freq Filter) / 12.5 ms (Low-Freq Filter).
• This performance is ideal for accurate velocity measurement and meter proving.

Configuration & Operating Modes

• The IC660BBD120 supports versatile counting: Up, Down, Up/Down, or Difference between two values.
• It features direct processing, operating independently without constant CPU communication.
• Outputs can be programmed to trigger automatically when counts reach preset values.
• Configuration is done via software or a Hand-Held Monitor (HHM) connected to its dedicated port.

Power Supply & Environmental Ratings

• Dual Power Option: Operates on 93-132 VAC or 10-30 VDC sources simultaneously.
• The module provides seamless backup, switching to DC power if AC fails.
• Operating Temperature: 0°C to +60°C (32°F to 140°F).
• Storage Temperature: -40°C to +100°C (-40°F to 212°F).
• Humidity: 5% to 95% non-condensing.
• Vibration Resistance: 5-10 Hz, 2″ displacement.

Physical Design & Status Indicators

• Compact, Rackless Design: Dimensions 8.83″ x 3.50″ x 3.94″ (HxWxD).
• Modular construction allows easy servicing without disturbing field wiring.
• LED Indicators: “Unit OK” and “I/O Enabled” status LEDs, plus 4 output status LEDs.
• Mounts directly to a subpanel within a protective enclosure.

Packaging & Shipping

• We supply the IC660BBD120 module as a brand new, original unit.
• The module is ready for immediate shipment from our current stock.
• We process all orders and dispatch within 5 business days.
• We ship worldwide via reliable carriers: FedEx, UPS, and DHL.

Frequently Asked Questions (FAQ)

Q: What is the main purpose of the IC660BBD120 module?
A: The IC660BBD120 is a high-speed counter for accurate monitoring of fast pulse trains, commonly used in flow measurement, motion control, and speed sensing.

Q: Can it work without a central PLC CPU?
A: Yes. Its direct processing engine allows it to count inputs and control outputs independently, reducing load on the main controller.

Q: What types of counters does it support?
A: You can configure it for 1, 2, or 4 separate counters, each operating in modes like up, down, or quadrature counting.

Q: What power supplies does it accept?
A: It accepts a wide range: 93-132V AC or 10-30V DC. You can connect both for built-in power redundancy.

Q: Do you offer a return policy?
A: Yes. We provide a 30-day return policy for all products. Contact our team for a smooth process.
