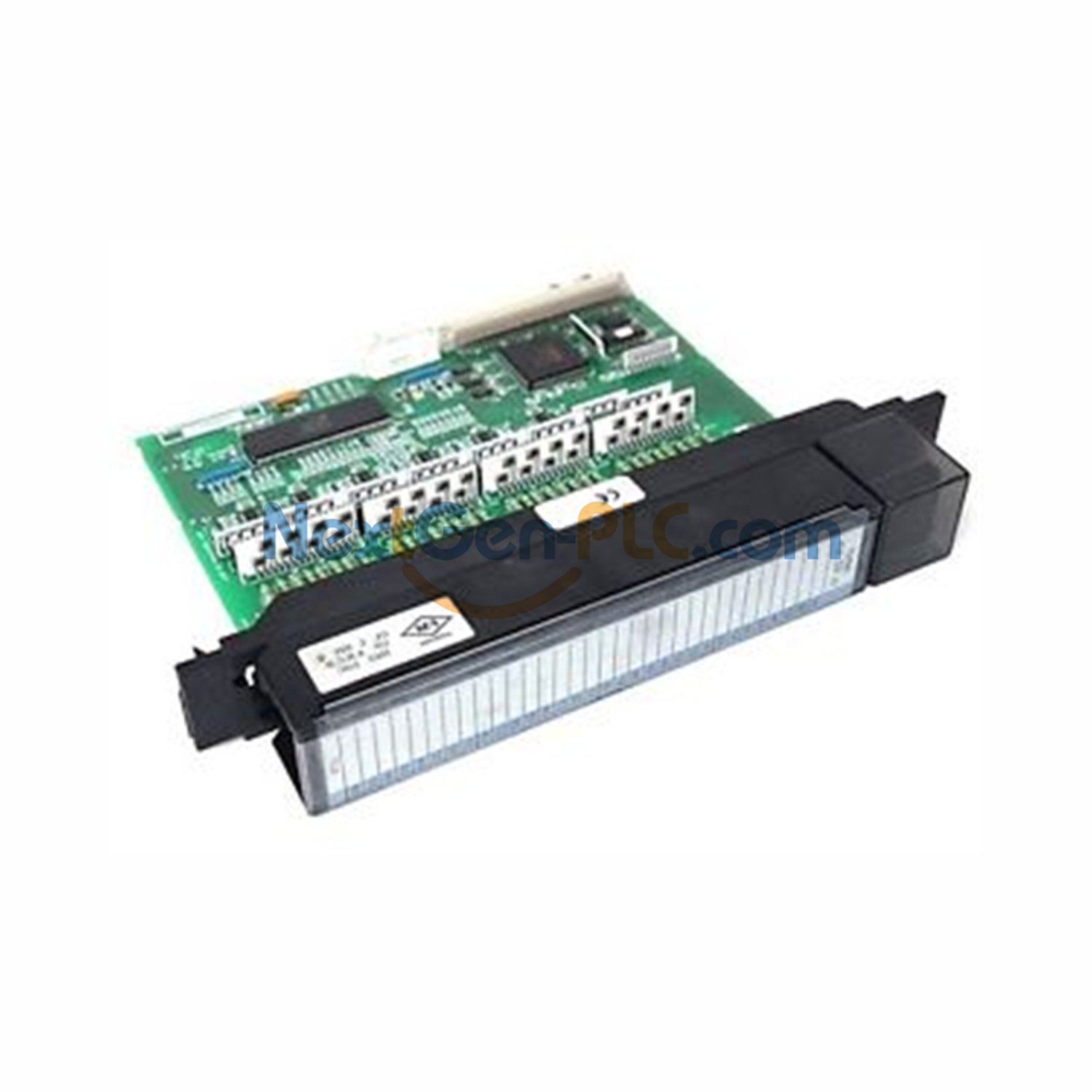

IC697MDL653 GE Fanuc 24 volts DC Input Module

GE Fanuc IC697MDL653 Series 90-70 24VDC Positive/Negative Logic Input Module

Technical Specifications

Brand: GE Fanuc

Series: Series 90-70

Part Number: IC697MDL653

Rated Voltage: 24 VDC

Number of Inputs: 32

Input Groups: 4 groups of 8 channels

Input Voltage Range: -3 to 30 VDC

Input Current per Channel: 10 mA

On-State Voltage: 13.5 to 30 VDC

On-State Current: 6 to 15 mA

Off-State Voltage: 0 to 5 VDC

Off-State Current: 0 to 2 mA

Isolation Voltage: 1500 VDC to backplane, 500 V between groups

Current Draw: 300 mA

Input Delay Time: Configurable 1 ms or 10 ms

Compatibility: Series 90-70 PLCs, VME standard C.1
