I/O Block | GE Fanuc IC660EBD025

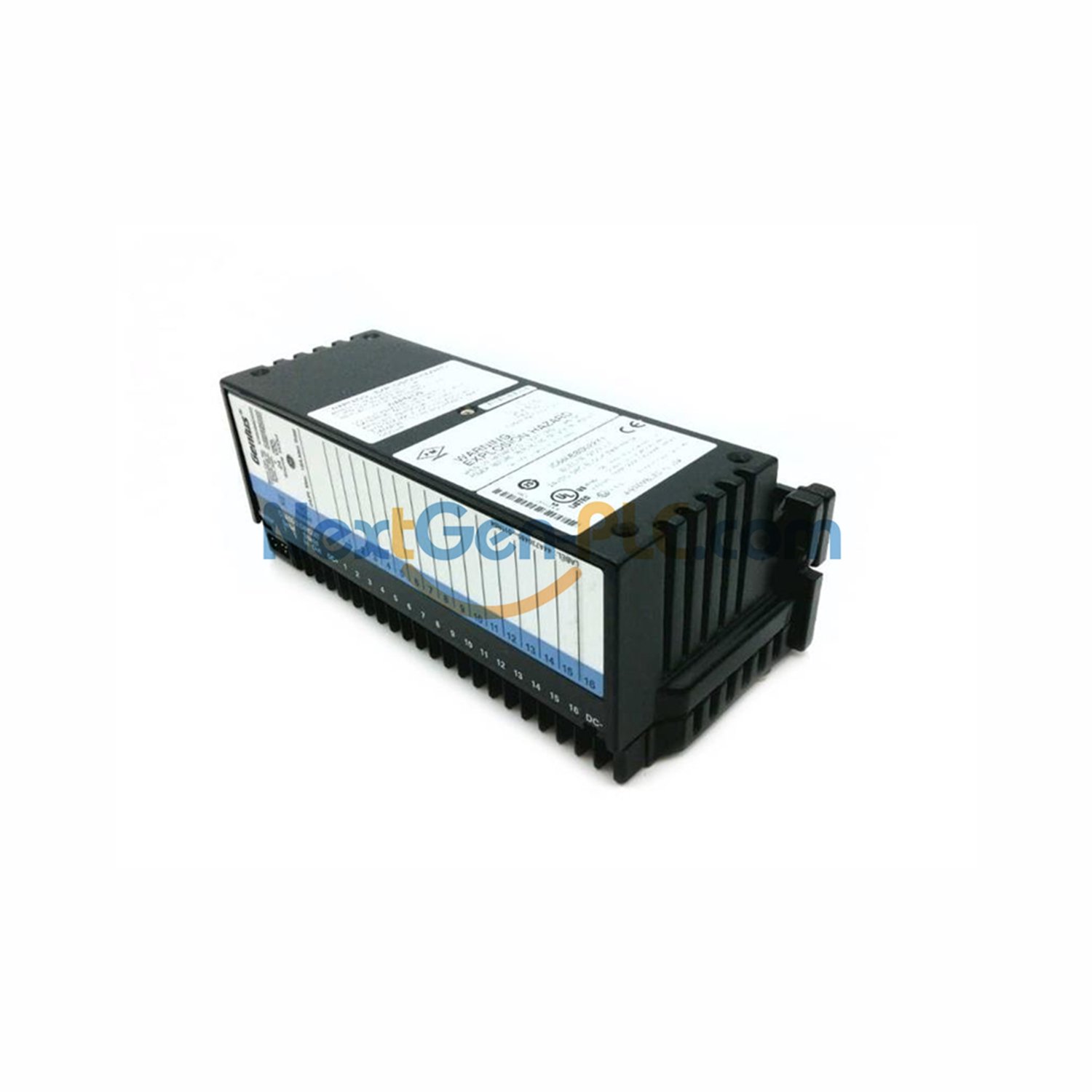

Product Introduction: GE Fanuc / Emerson Automation IC660BBD025 Genius I/O Sink Block

Detailed Technical Specifications

• Brand: GE Fanuc / Emerson Automation
• Model: IC660BBD025
• Series: Genius I/O
• Product Type: 32-Circuit Sink I/O Block
• Number of Circuits: 32 Configurable I/O Points
• Operating Voltages: 5V TTL, 12VDC, 24VDC
• Input Voltage Range: 10-30VDC (12/24V), 4.9-5.3VDC (5V Sink)
• Load Current: 0.5 Amperes per circuit
• Total Block Current: 16 Amperes maximum
• Inrush Current: 4 Amperes for up to 10 ms
• Input Processing Time: 1.4 ms
• Output Delay: 0.5 ms typical
• Block Isolation: 850 Volts block-to-block

Physical & Environmental Specifications

• Dimensions: 8.83″ H × 3.58″ W × 4.7″ D (224.3 × 90.9 × 119.4 mm)
• Weight: Approximately 4 lbs (1.8 kg)
• Heat Dissipation: 11 Watts (8 inputs) to 18 Watts (32 outputs)
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 100°C (-40°F to 212°F)
• Humidity: 5% to 95% non-condensing

Frequently Asked Questions (FAQ)

• Q: Is this a source or sink I/O block?
  A: The IC660BBD025 is specifically a sink-type I/O block. For sourcing applications, use the IC660BBD024.
• Q: What PLC systems is this block compatible with?
  A: It is fully compatible with GE Series 90-30 and Series 90-70 PLCs and other Genius-compatible controllers.
• Q: Can I configure individual points as inputs or outputs?
  A: Yes, all 32 points are independently configurable as inputs or outputs.
• Q: What is the maximum current per output point?
  A: Each output circuit can handle a steady-state load of 0.5 Amperes.
• Q: Is this product still manufactured and supported?
  A: This product line is now under Emerson Automation. The module is discontinued but available as new old stock (NOS).
