I/O Block – GE Fanuc – IC660EBD024

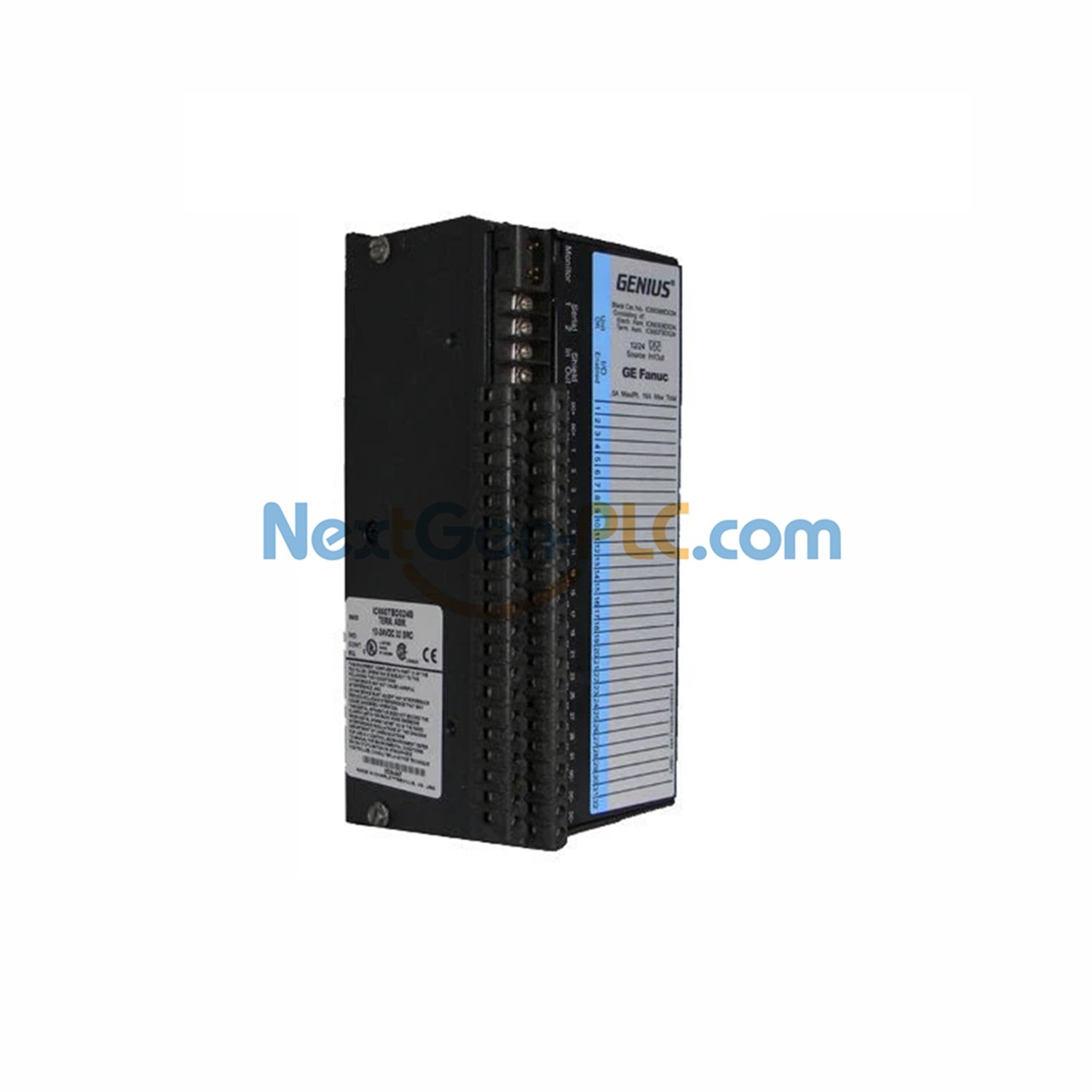

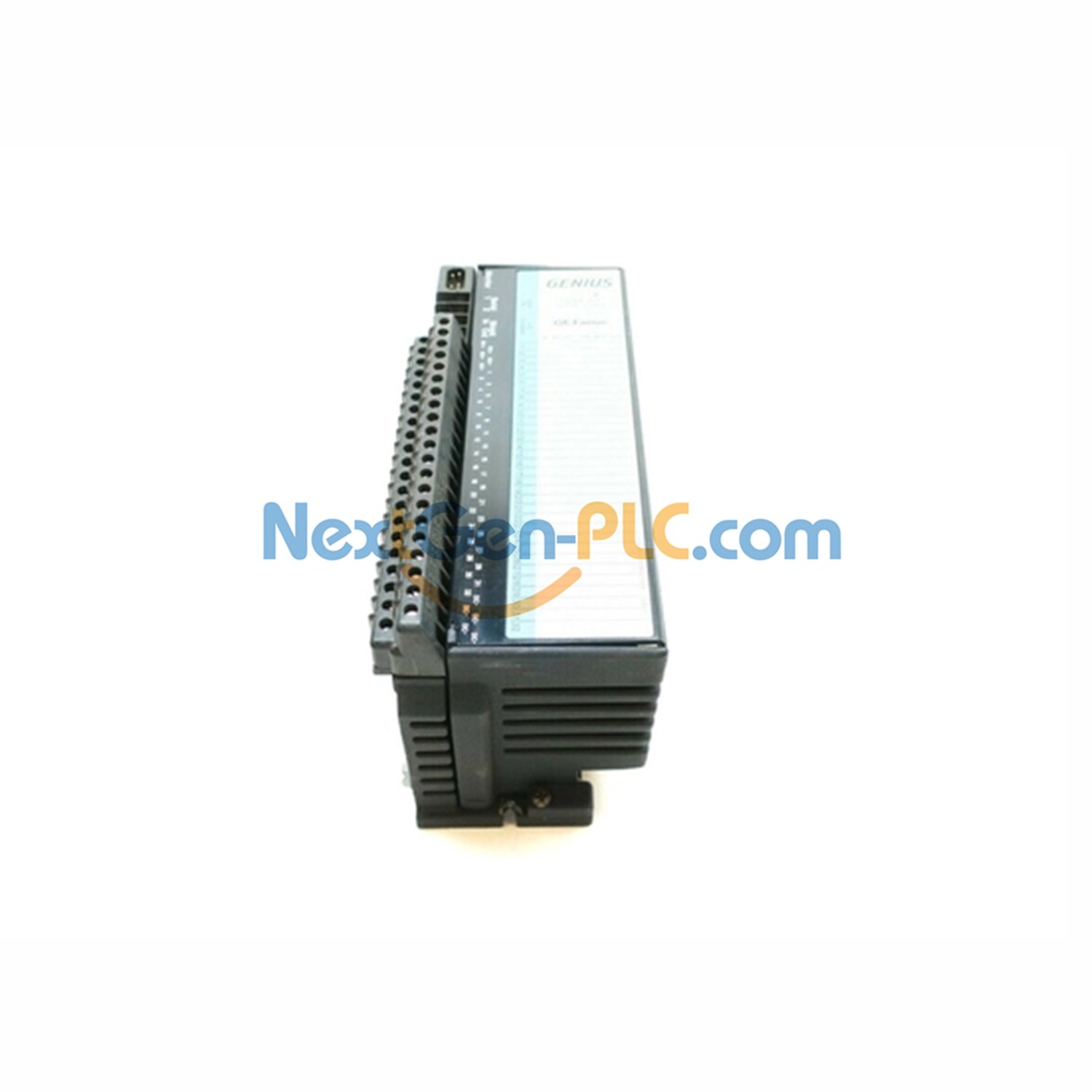

Product Introduction: GE Fanuc / Intelligent Platforms IC660EBD024 Genius I/O Electronics Assembly

Detailed Technical Specifications

• Brand: GE Intelligent Platforms / GE Fanuc
• Model: IC660EBD024
• Series: Genius I/O
• Product Type: Electronics Assembly (DC Source)
• Number of Circuits: 32 Isolated I/O
• Operating Voltage: 10 to 30 V DC
• Max Output Current: 0.5 A per circuit
• Total Block Output Current: 16 A
• Output Turn-On Delay: 0.5 microseconds maximum
• Logic States: On-State = Logic 1, Off-State = Logic 0
• Required DC Power: 150 mA typical, 300 mA maximum
• Operating Temperature: 0°C to 60°C

Power & Thermal Specifications

• The assembly has a minimum heat dissipation of 11 Watts with 8 inputs active.
• Maximum heat dissipation reaches 18 Watts with all 32 outputs active.
• Power consumption is efficient, with a typical DC power requirement of 150 mA.
• The wide input voltage range supports both 12V and 24V DC system standards.

Environmental & Physical Specifications

• The unit operates reliably in a temperature range of 0 to 60 degrees Celsius.
• Its storage temperature range is wider, from -40 to 100 degrees Celsius.
• It tolerates non-condensing relative humidity from 5% to 95%.
• The block has a substantial weight of approximately 1.8 kilograms (4 pounds).
• Its robust construction ensures durability in industrial environments.

Configuration & Application Notes

• All 32 circuits are identical and can be individually configured as inputs or outputs.
• When used as a combination block, it provides output feedback in corresponding input references.
• The inputs are designed to control the positive side of the power supply.
• This source-type block is essential for applications requiring current sourcing from the I/O point.
• For sink-type configurations, please refer to the appropriate model variant.

Ordering & Documentation

• This is a genuine GE Fanuc / Intelligent Platforms component.
• A detailed wiring diagram is available for download to assist with installation.
• The block is designed for direct integration into Genius I/O distributed systems.
• We ensure fast shipping via major carriers like DHL, FedEx, and UPS.

Frequently Asked Questions (FAQ)

• Q: Is this the source or sink model of the I/O block?
  A: The IC660EBD024 is the DC Source model. All outputs are connected to the negative side of the supply.
• Q: How many I/O points does this block provide?
  A: It provides 32 discrete I/O circuits that are fully configurable.
• Q: What is the operating voltage range?
  A: It operates from a wide range of 10 to 30 Volts DC.
• Q: Do you have the wiring diagram available?
  A: Yes, you can download the IC660EBD024 wiring diagram from our resource section.
• Q: What is your shipping and return policy?
  A: We ship new, original stock within 5 business days and offer a standard 30-day return policy.
