GE Fanuc IC698CHS117 RX7i I/O Rack

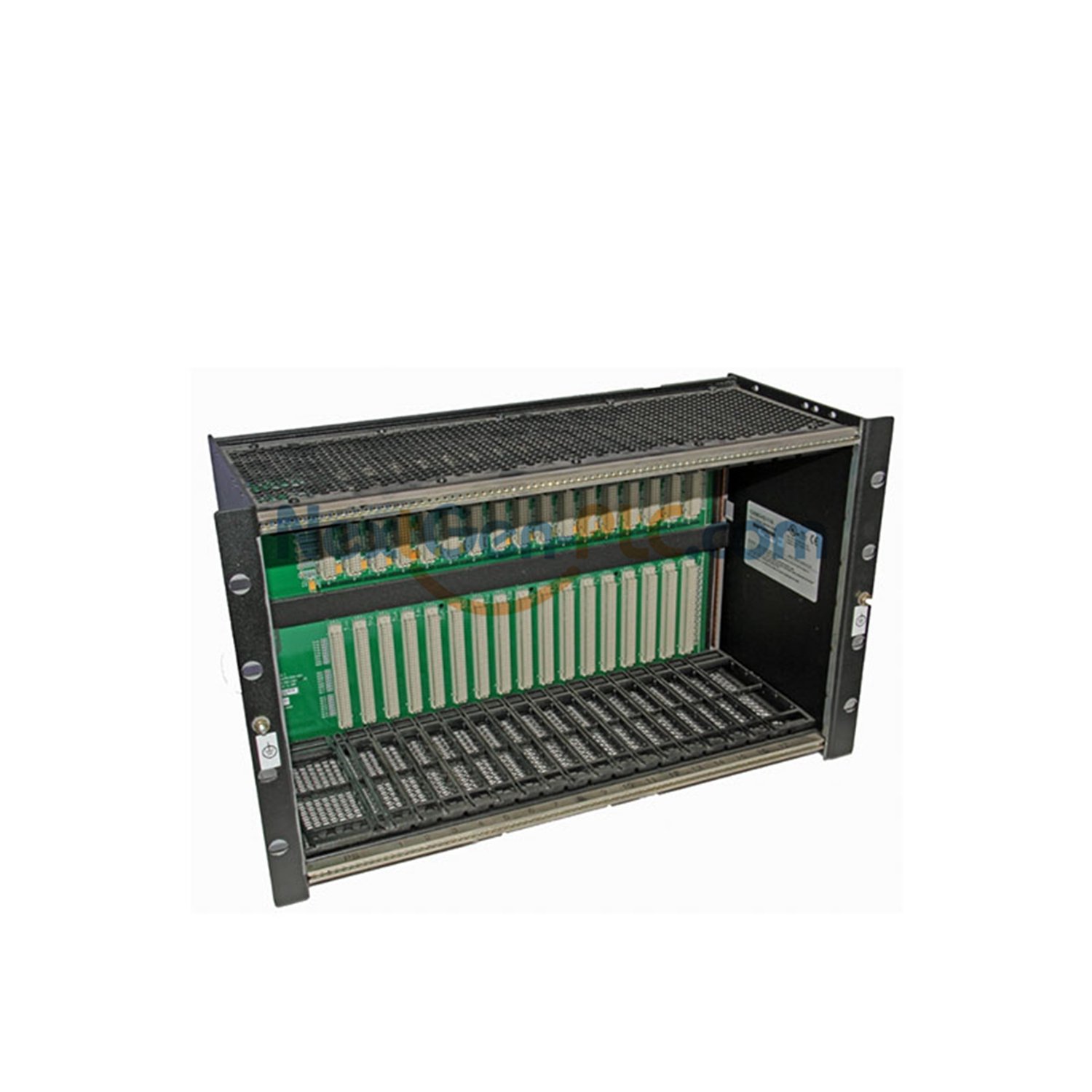

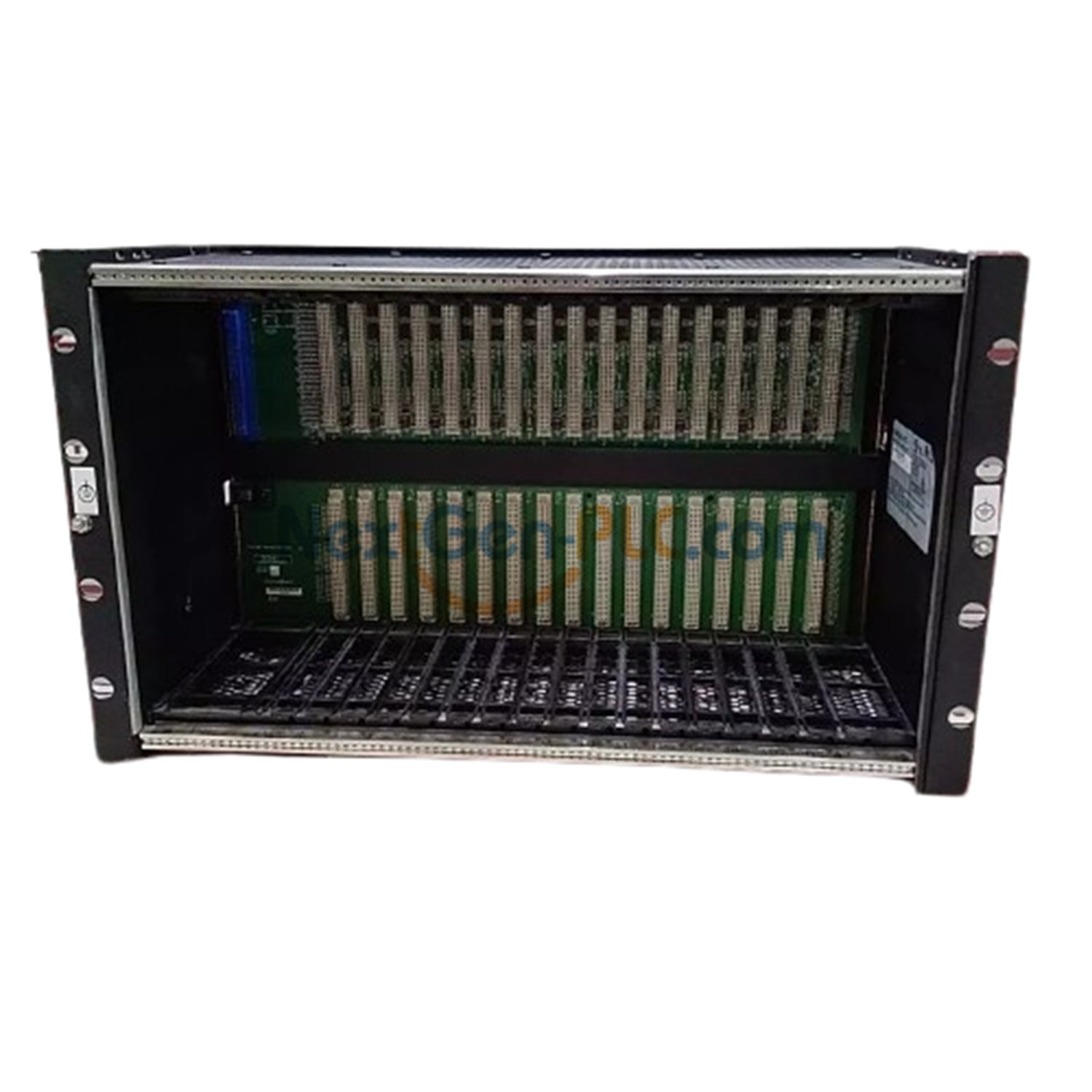

GE Fanuc IC698CHS117 Rx7i PACSystem 18-Slot I/O Rack

The GE Fanuc IC698CHS117 is an 18-slot I/O rack for the Rx7i PACSystem. It delivers fast data with a VME64 backplane. The rack works with Rx7i CPUs, Rx7i I/O modules, Series 90-70 I/Os, and standard VME modules. Its open design fits IP54 or better enclosures for industrial use.

Key Features

• Supports 18 I/O slots for single or double-width modules
• High power: 350 Watts
• Current ratings: 60A at 5V DC, 12A at 12V DC, 4A at -12V
• Slot-sensing design avoids DIP switches or jumpers
• Configured via CIMPLICITY Machine Edition Logic Developer-PLC software
• CPU in slot 1; double-width CPU uses slots 1 and 2; power supply in slot 0
• Rear wall mount, dimensions: 11.2 x 19.0 x 7.5 inches
• Optional fan for cooling

Technical Specifications

• Brand: GE Fanuc
• Series: Rx7i PACSystem
• Part Number: IC698CHS117
• Application: Rx7i System
• Voltage: 5 to 12 Volts DC
• Power Supply: 350 Watts
• Current: 60A at 5V DC / 12A at 12V DC
• I/O Capacity: 18 slots, 15 single-width or 8 double-width modules
• Mounting: Rear wall
