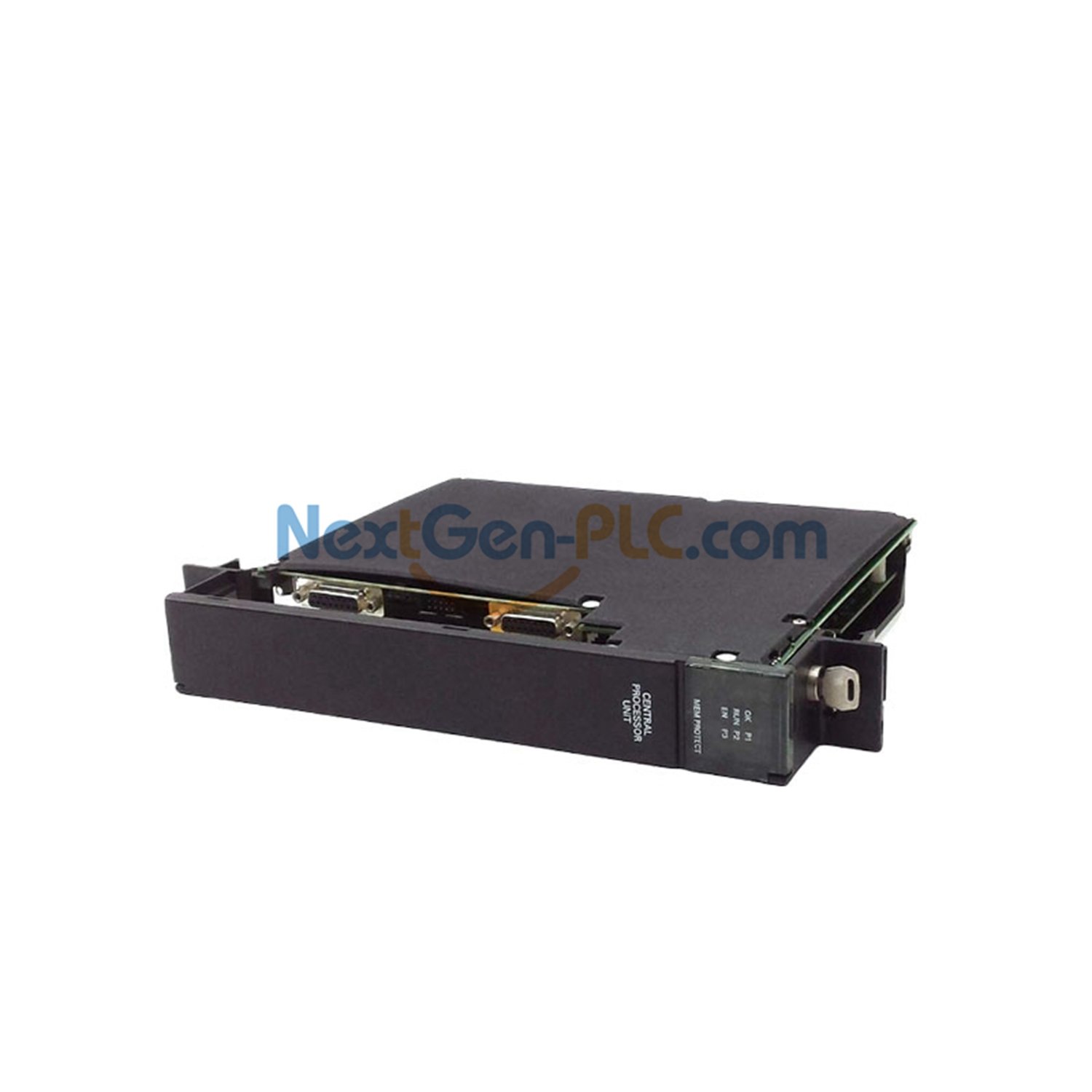

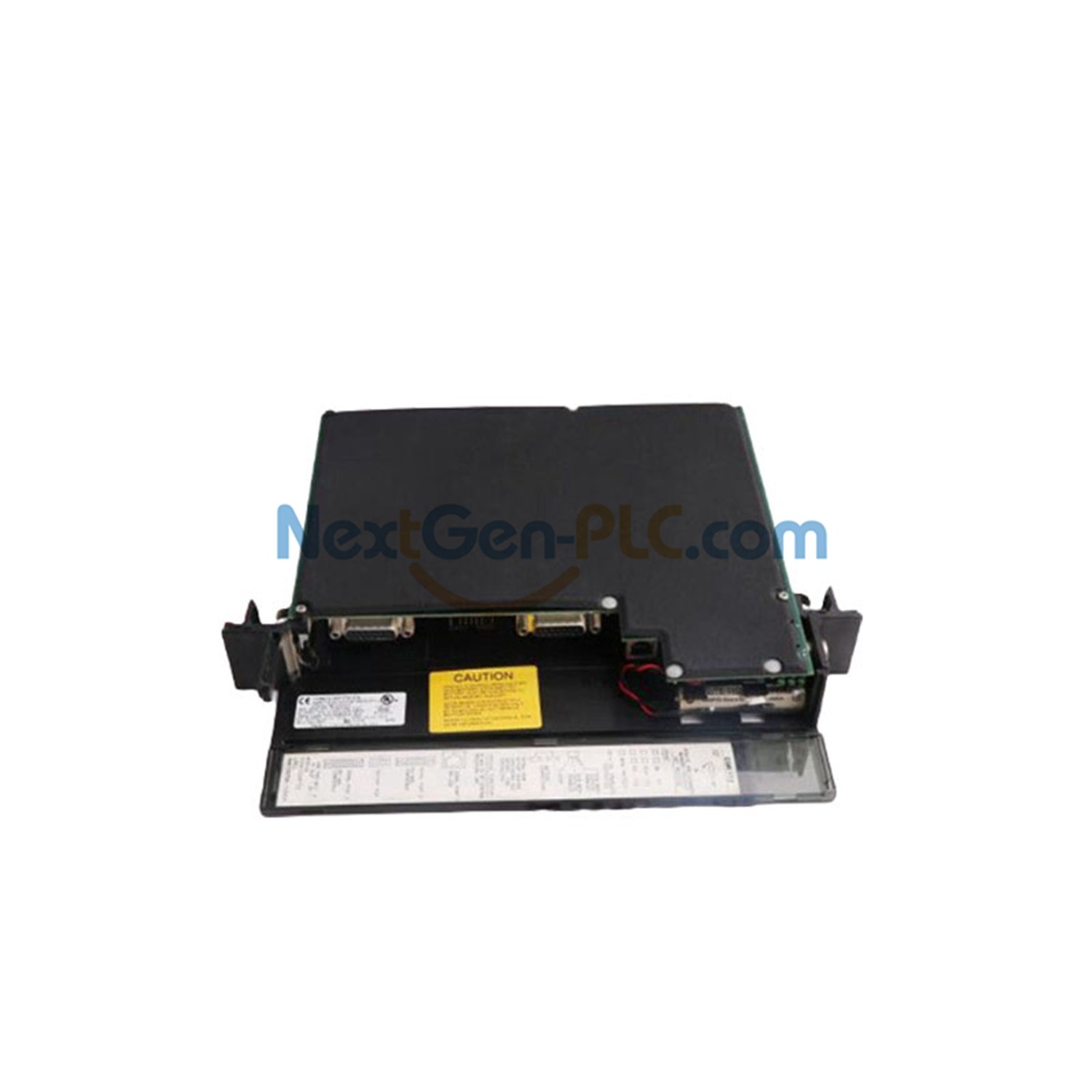

GE Fanuc IC697CGR935 Series 90-70 Processor

Emerson IC697CGR935 Series 90-70 Hot-Standby CPU Module

Key Features

• Processor: 80486DX4 microprocessor, 96 MHz clock speed
• Memory: 1 MB CMOS RAM with battery-backed storage
• Boolean Execution: 0.4 microseconds per function
• Discrete I/O: 12K inputs and 12K outputs, any mix
• Analog I/O: Supports up to 8K analog points
• Communication Ports: 1 RS-232, 2 RS-485
• Network Interface: RJ-45 port compatible with SNP protocol
• LED Indicators: Module OK, RUN, EN, P1, P2, P3, MEM Protect
• Operating Temperature: 0 to 50°C without forced air
• Current Draw: 3.1 Amps at 5 Volts DC

FAQ

• Q: Does the IC697CGR935 support hot-standby redundancy?
  Yes, pairing two IC697CGR935 CPUs enables automatic failover without process interruption.
• Q: What is the maximum I/O capacity?
  The CPU supports up to 12K discrete inputs and 12K discrete outputs, plus up to 8K analog I/O points.
• Q: How many communication ports are available?
  There are three serial ports (1 RS-232, 2 RS-485) and an RJ-45 network interface.
• Q: Is the module ready for installation?
  Yes, the module is brand new and in stock. We ship within 5 days using DHL and support returns within 30 days.
