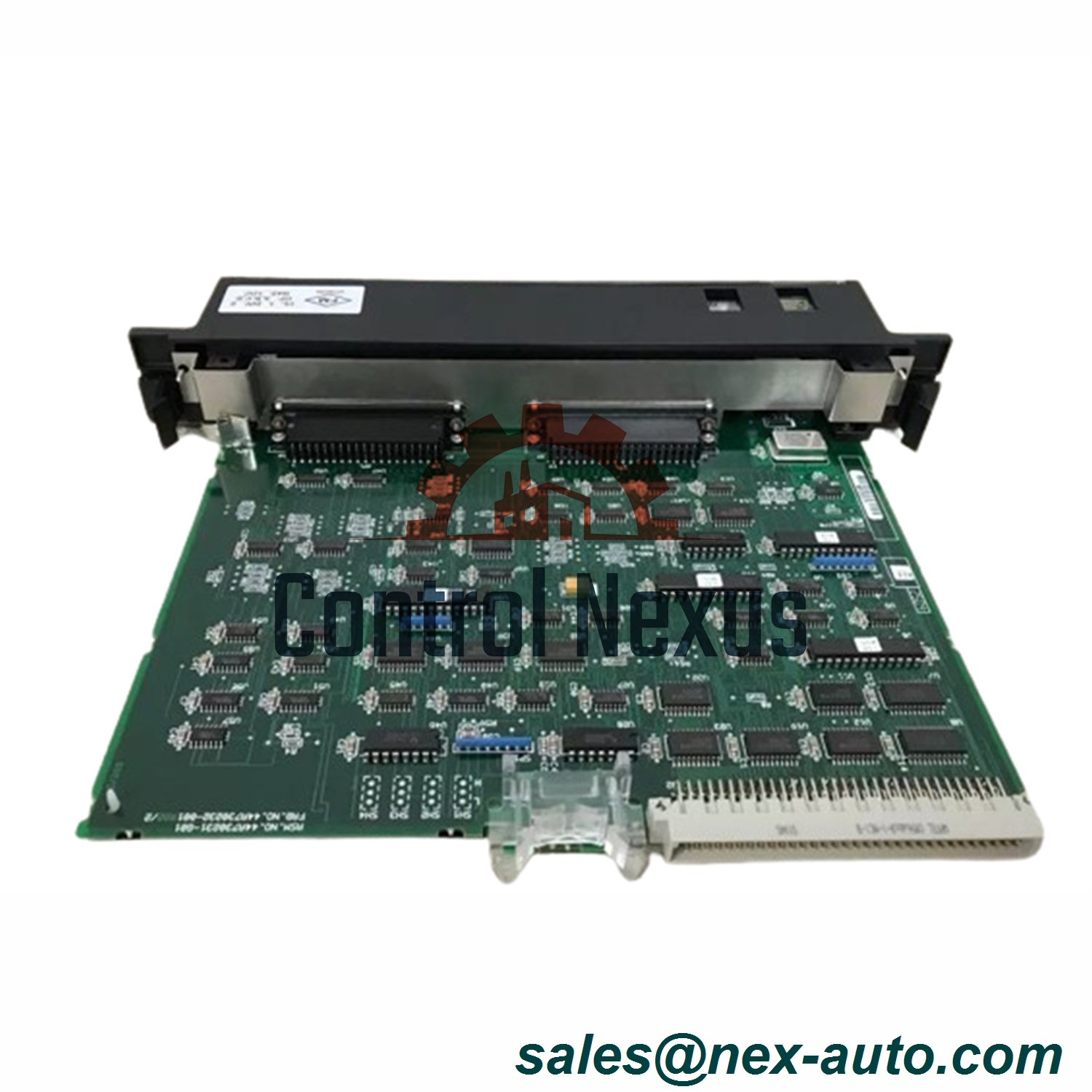

GE Fanuc IC697BEM734 Bus Controller Module

GE Fanuc IC697BEM734 IC660/IC661 Bus Controller Module

Key Features

Scans IC66 I/O blocks and sends data to PLC CPU

Supports global, directed, and peer-to-peer communications

MS-DOS/Windows software configures baud rate and bus address

Default baud rate: 153.6 Kbaud; default bus address: 31

3 LEDs display operation and communication status

PL1 port for Hand-Held Monitor connection

PL3 port for IC66 Bus field terminals

Technical Specifications

Brand: GE Fanuc

Series: Series 90-70

Part Number: IC697BEM734

Type: Bus Controller

Application: IC66 Bus

Voltage: 5 VDC

Current: 1.3 A

Slot: Single slot in IC66 Rack

Connectors: PL1 and PL3 ports

LEDs: 3 LEDs
