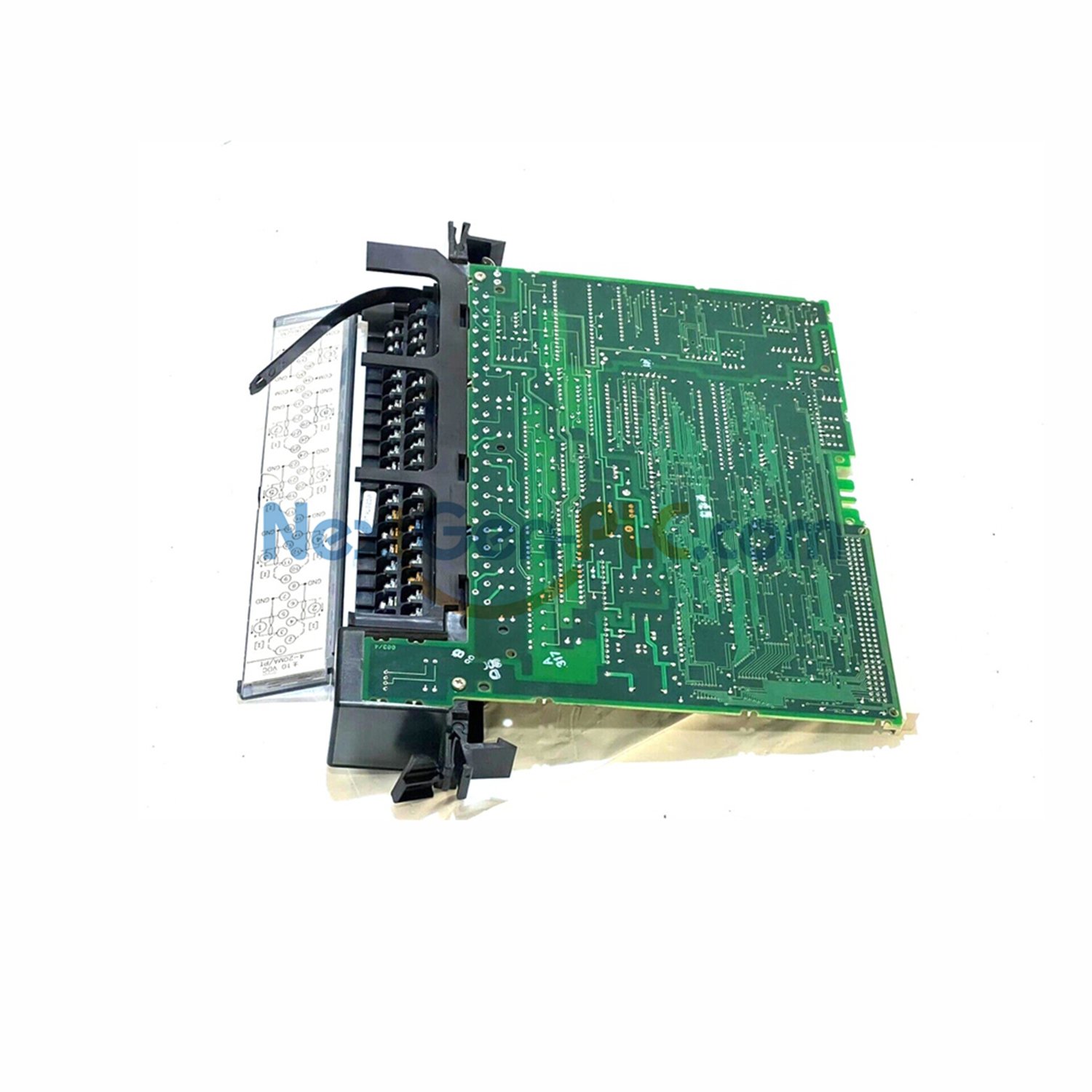

GE Fanuc IC697ALG230 Series 90-70 PLC Module

Technical Specifications

Brand: GE Fanuc (Formerly); Emerson Automation (Current)

Series: Series 90-70

Part Number: IC697ALG230

Module Type: Base Converter Module

Number of Analog Inputs: 8 differential channels

Maximum Inputs with Expanders: 120

Input Signal: 4-20 mA current; -10V to +10V voltage

Input Resolution: 16-bit

Wiring: Differential

Update Rate: 2.4–2.8 ms

Response Time: 5% – 30 ms, 1% – 42 ms, 0.5% – 51 ms, 0.1% – 67 ms

Calibration Accuracy: Voltage ±0.01% full scale; Current ±0.05% full scale

Linearity: ±0.02% full scale

Temperature Coefficient: ±5 PPM/°C typical, ±30 PPM/°C max

Compatible Expander Modules: IC697ALG440 (Voltage), IC697ALG441 (Current)

Terminals: 40 pins, removable block

Power: 0.8 A (4 W) at +5 V
