GE Fanuc IC695EDS001 DNP3 Outstation Module

GE Fanuc IC695EDS001 RX3i DNP3 Outstation Ethernet Module

Product Overview

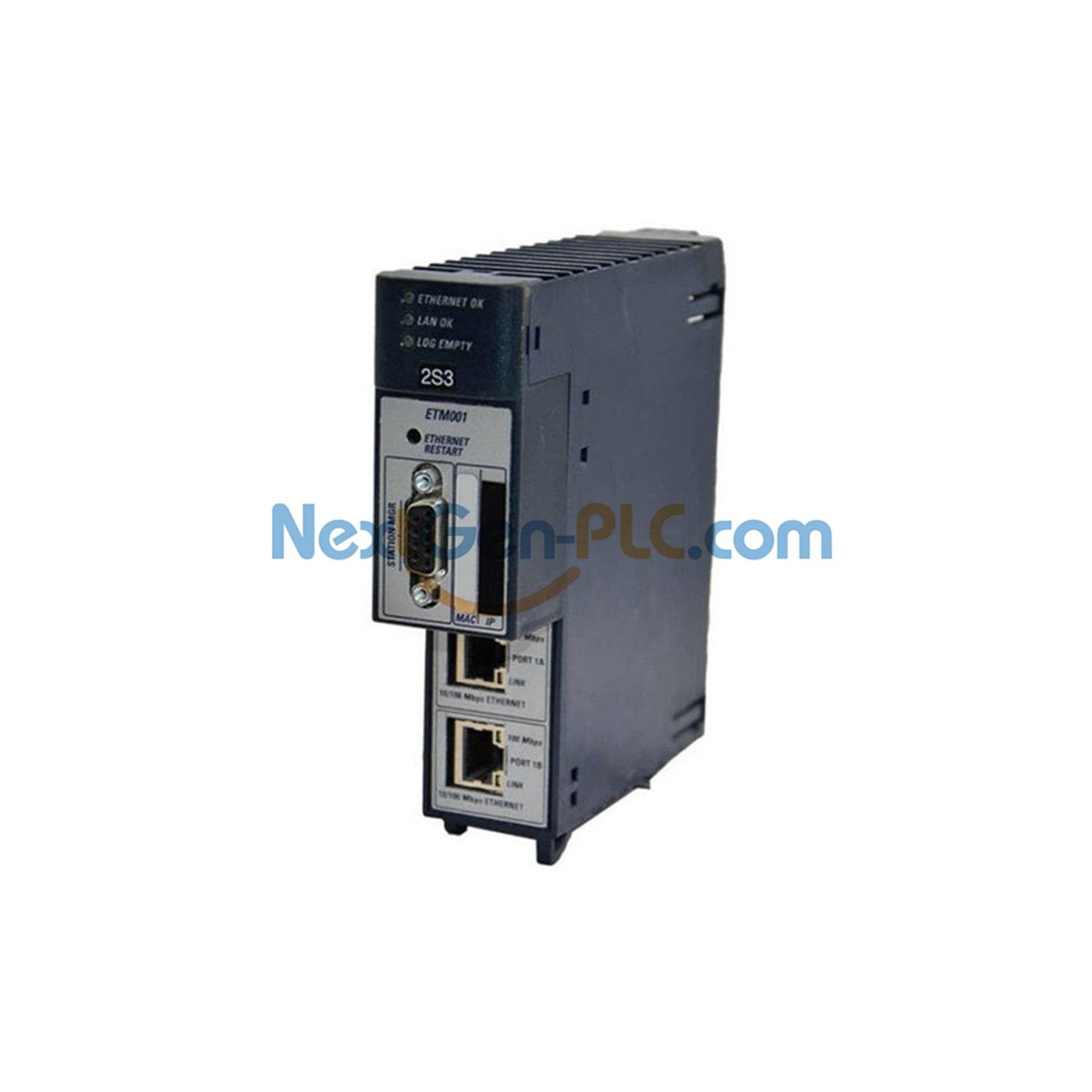

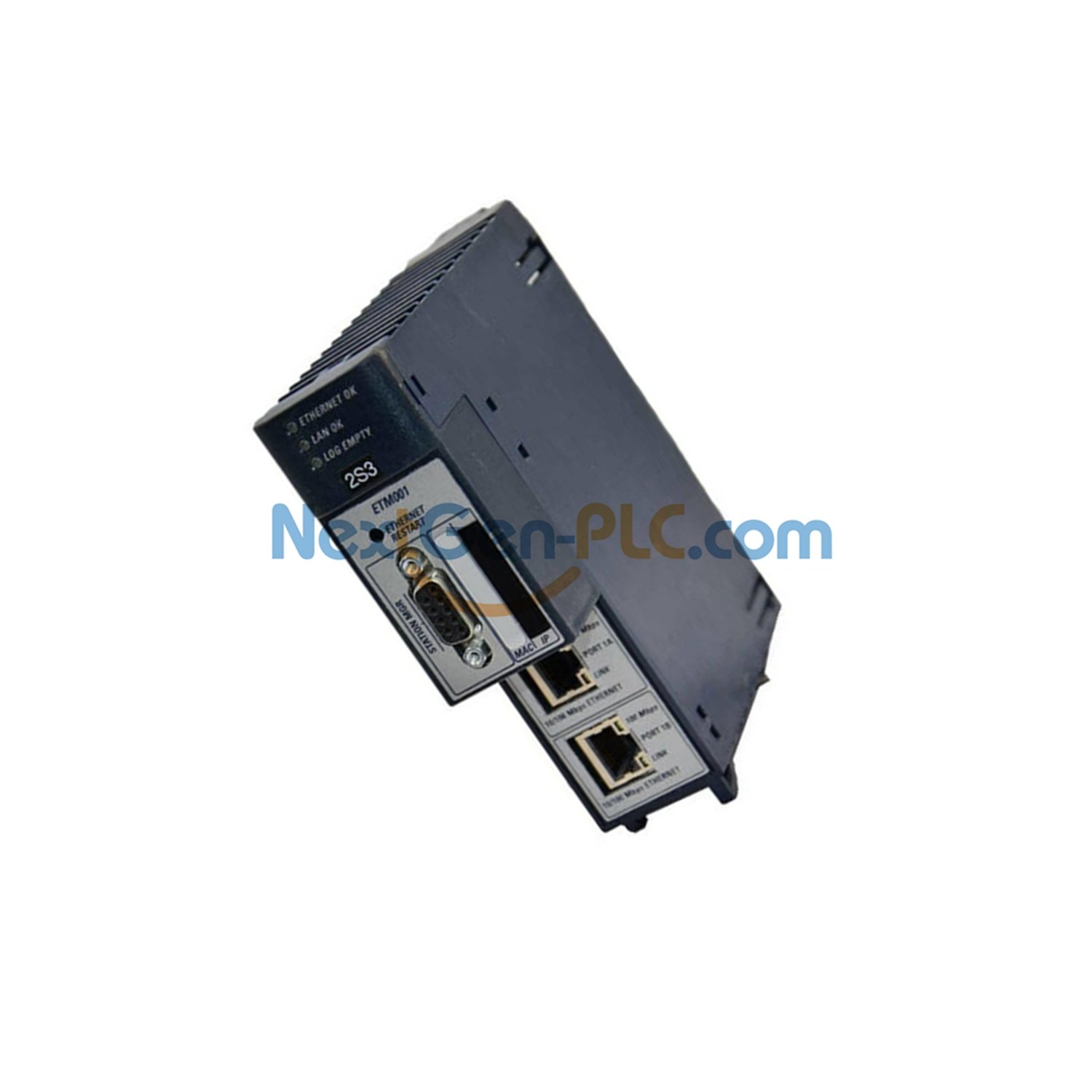

The IC695EDS001 is a DNP3 outstation module for RX3i PACSystems.

It enables communication with up to 8 DNP3 masters.

The module supports up to 12,072 points and 20,000 events.

It includes 1 RS-232 station manager port and 2 RJ45 Ethernet ports.

The Ethernet ports support 10/100 Mbps transmission rates and act as an embedded switch.

Technical Specifications

Ethernet Ports: 2 RJ45

Ethernet Speed: 10/100 Mbps

Maximum DNP3 Masters: 8

Supported Data Points: 12,072

Supported Events: 20,000

Supported Topologies: Line, Star, Daisy chain

Ethernet Protocols: LLA, TCP/IP

IP Addresses per Module: 1

MAC Addresses per Module: 1

Maximum Modules per Rack: 4

Power Requirements: 840 mA @ 3.3V DC, 614 mA @ 5V DC
