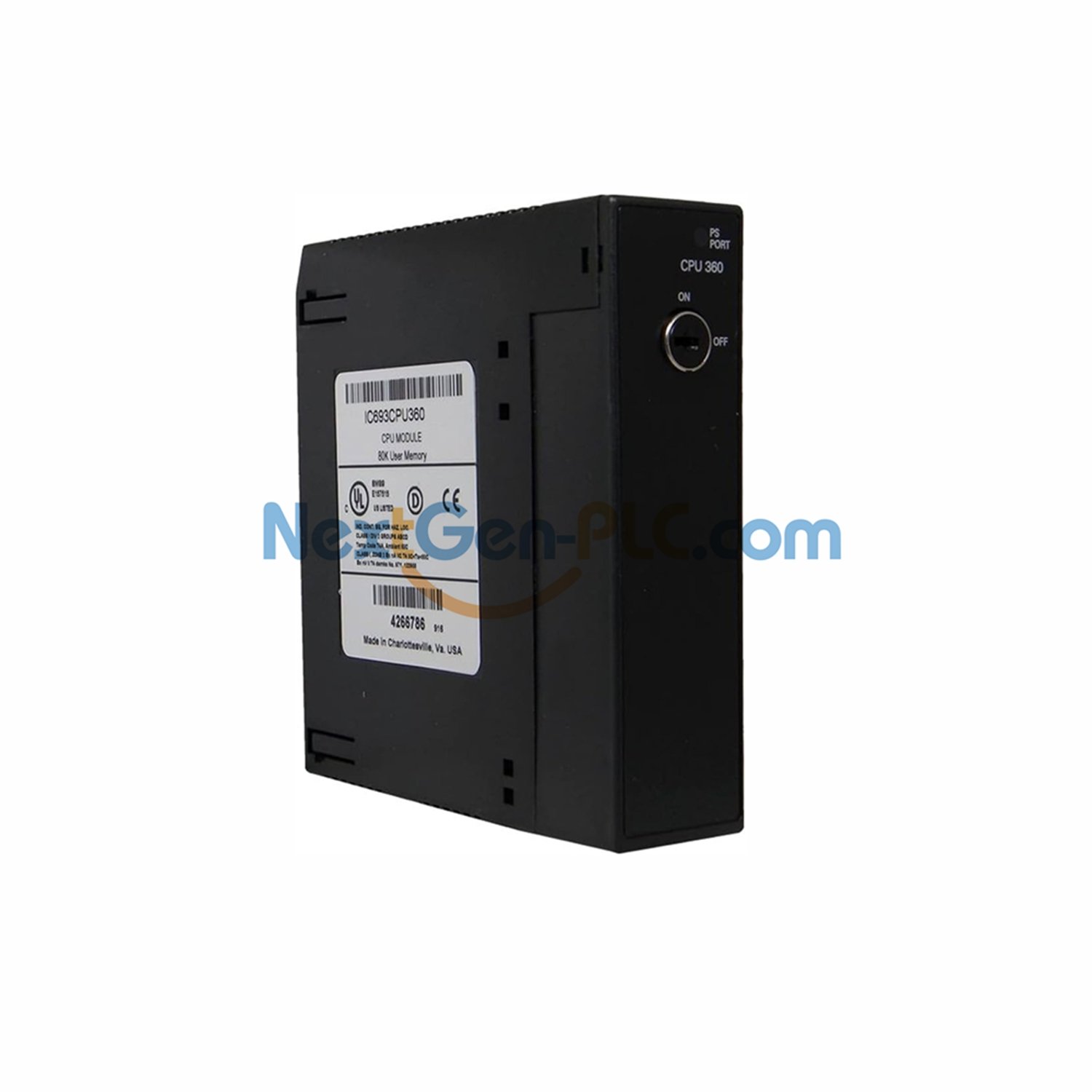

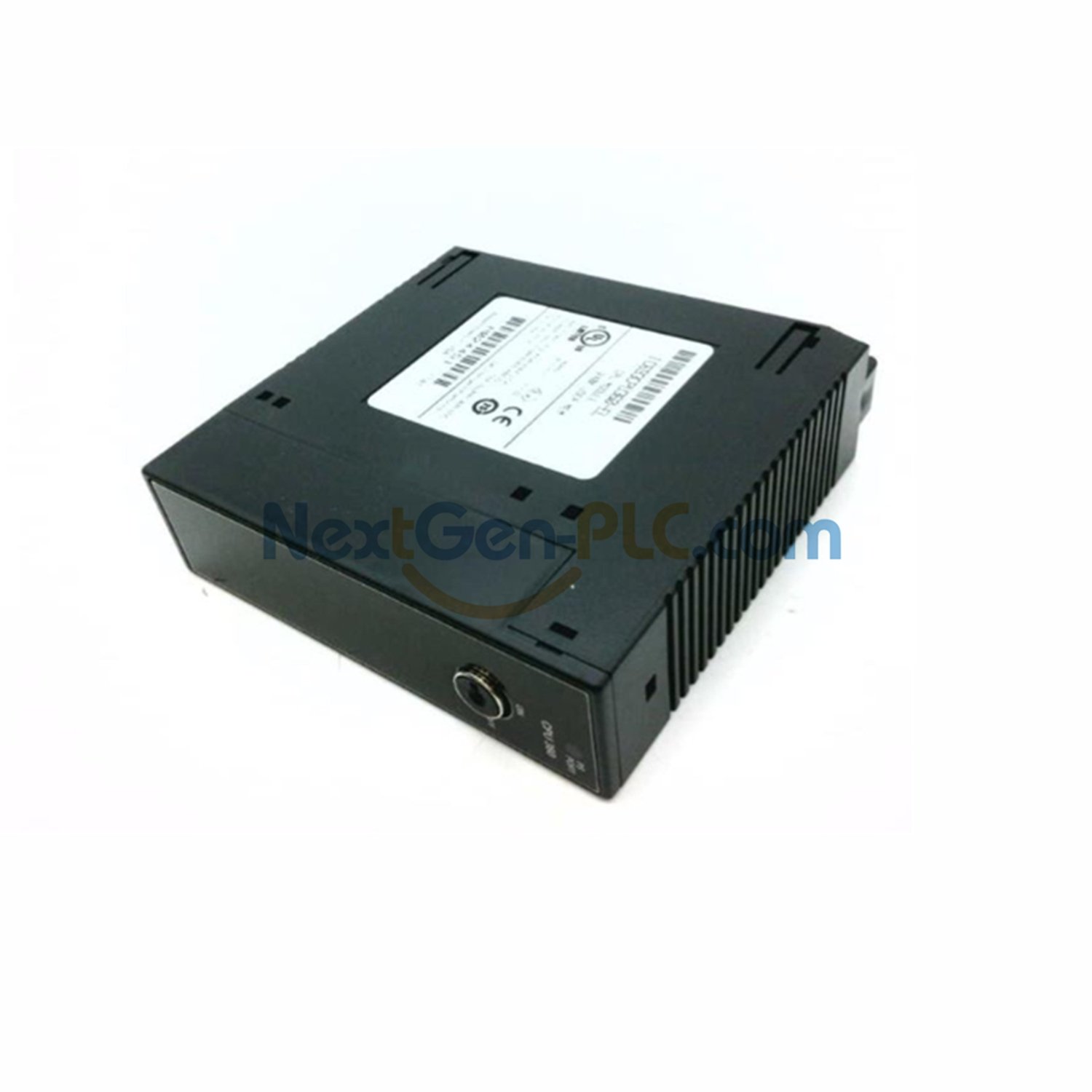

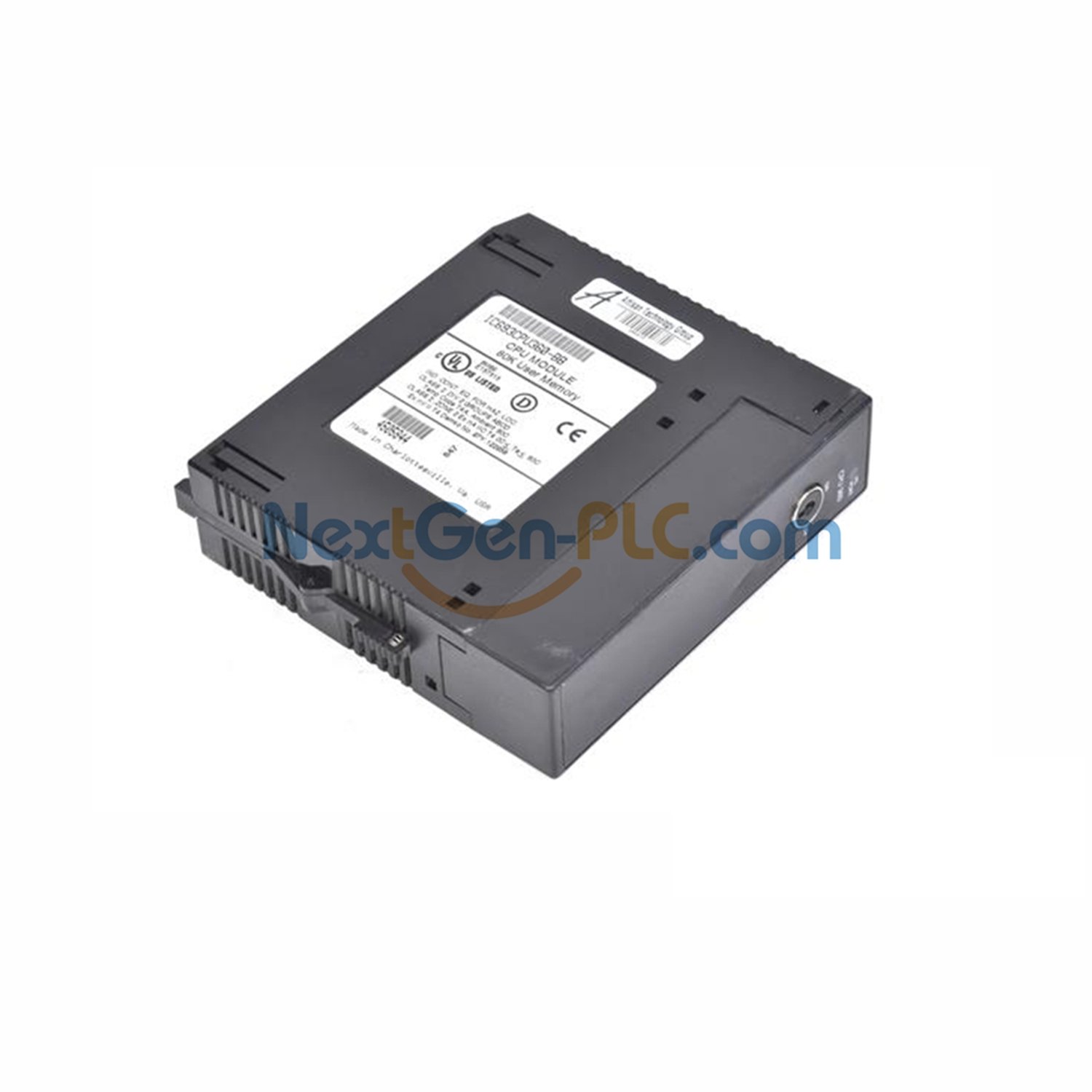

GE Fanuc IC693CPU360 Series 90-30 CPU Module — PLC Processor
Product Overview
The GE Fanuc IC693CPU360 is a CPU for Series 90-30 systems.
It has an 80386EX chip that runs at 25 MHz.
This module uses only one slot in the rack.
It connects through the RS-485 port on the power supply.
Main Specifications
| Parameter | Value |
|---|---|
| Processor | 80386EX, 25 MHz |
| User Memory | 240K Bytes |
| Scan Rate | 0.22 ms per 1K logic |
| Current Draw | 670 mA at +5 VDC |
| I/O Capacity | 2048 inputs, 2048 outputs |
| Register Memory | Up to 32,640 words |
| Timers and Counters | More than 2000 |
Additional Details
Brand: GE Fanuc
Series: Series 90-30
Model: IC693CPU360
Memory Type: RAM and Flash
Operating Temperature: 0 to 60 °C (32 to 140 °F)
Storage Temperature: -40 to 85 °C (-40 to 185 °F)
Communication: RS-485 via power supply
Programming Tools: LogicMaster90, VersaPro, Control, CIMPLICITY ME, HHP
