GE Fanuc IC693CPU311

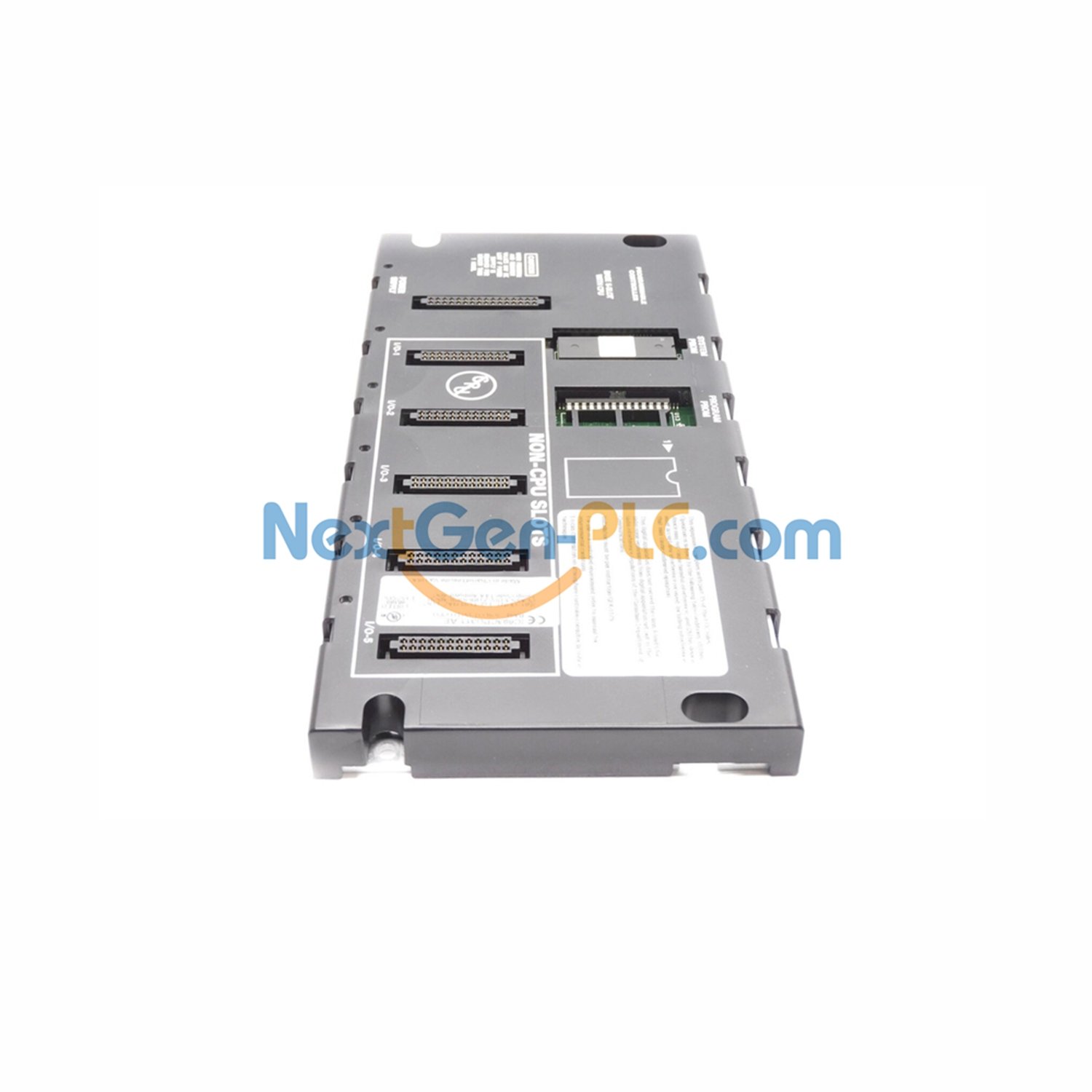

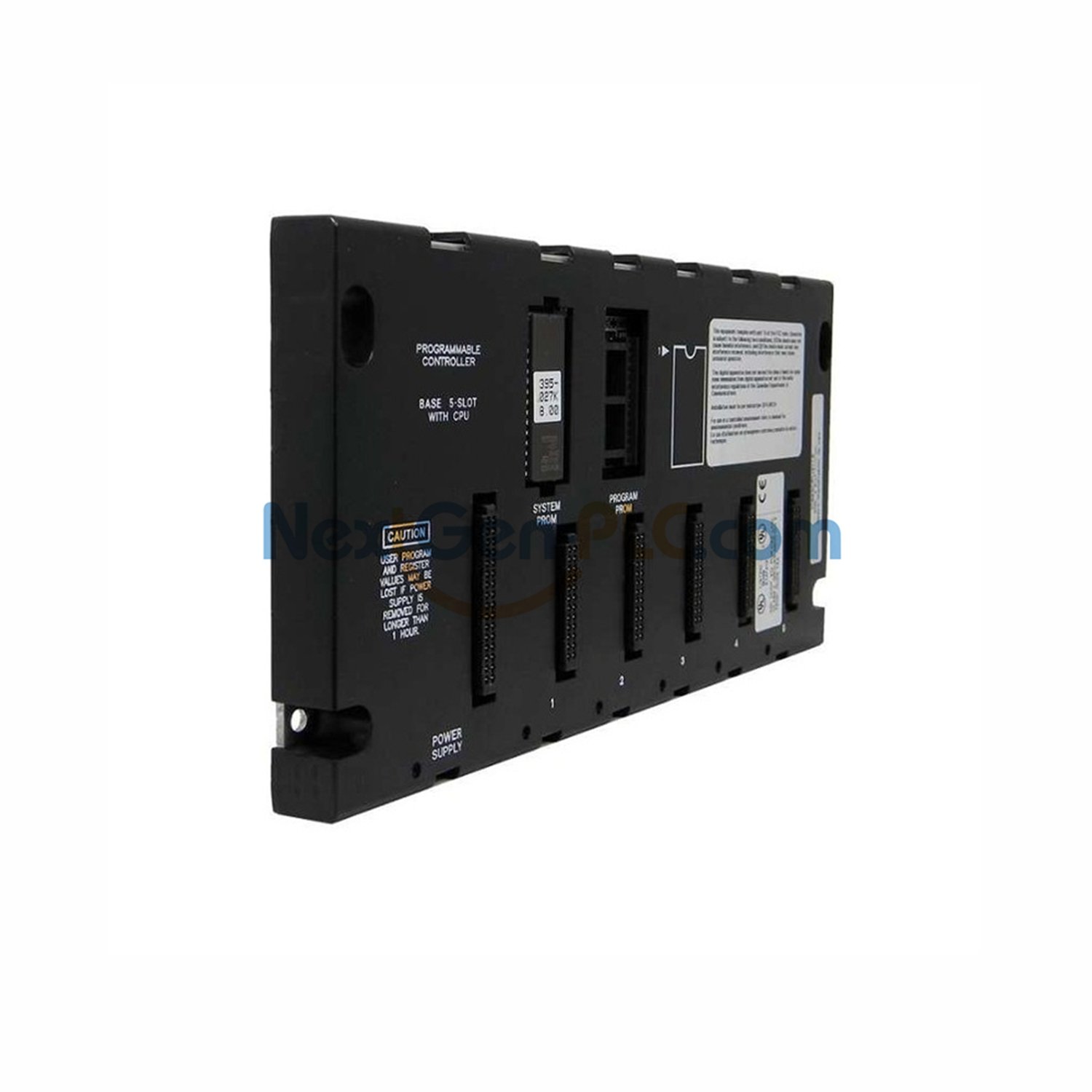

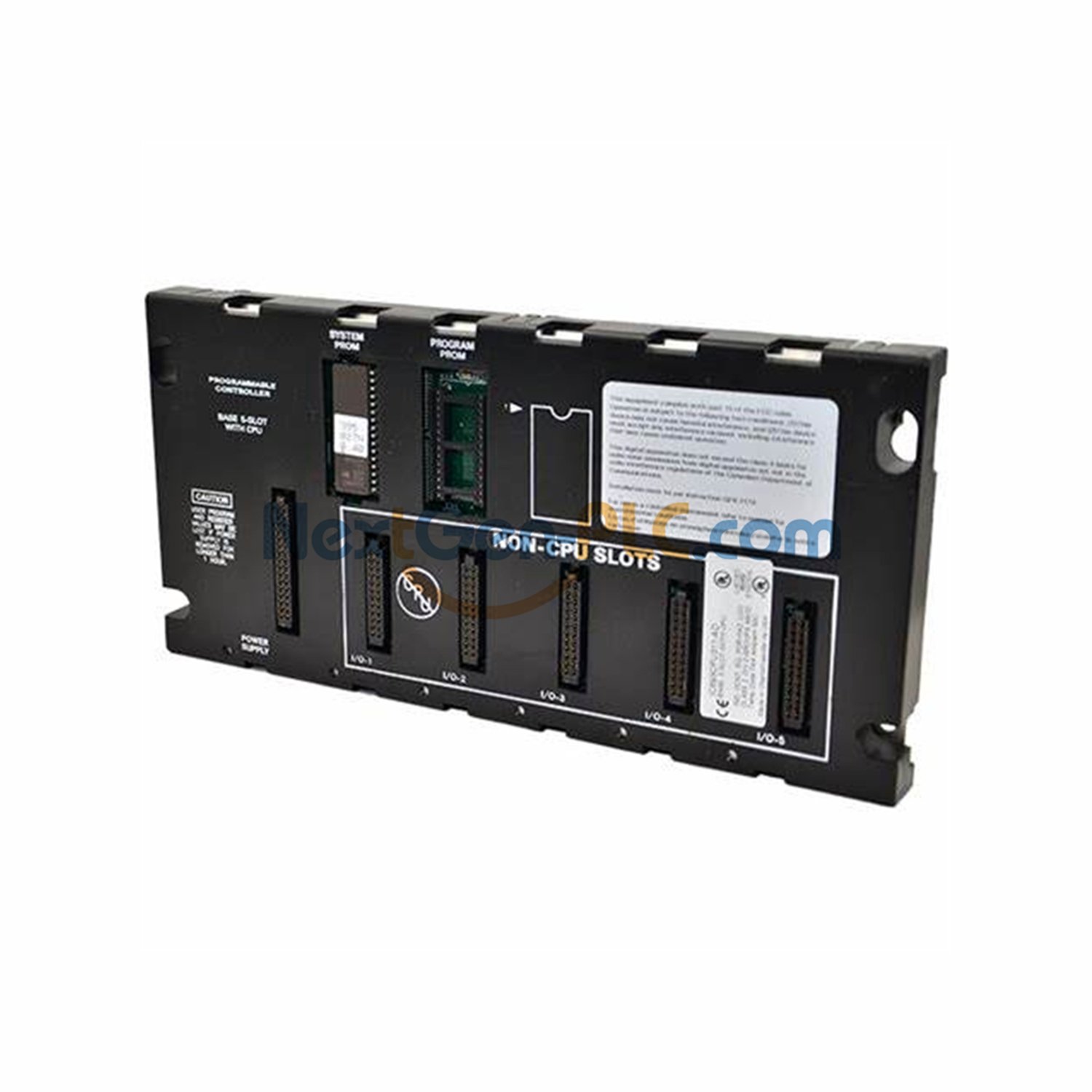

The IC693CPU311 from GE Fanuc Series 90-30 is a compact 5-slot baseplate featuring an embedded 80188 CPU. It delivers reliable performance for PLC applications with a 10 MHz processor speed and a boolean execution time of 18 ms per 1K logic. This baseplate comes with 6 KB of user memory and supports both discrete and analog I/O for versatile control tasks.
Highlights
- 5 I/O slots plus 1 power supply slot
- Handles up to 160 discrete inputs and 160 discrete outputs
- Supports 64 analog input words and 32 analog output words
- Built-in serial port supports SNP and SNP-X slave protocols
- 170 timers and counters with shift register support
- Optional memory expansion via EPROM or EEPROM
- Operating temperature range: 0–60°C (32–140°F)
- Current load: 410 mA at +5VDC
Technical Specifications
| Manufacturer | GE Fanuc / Emerson Automation |
| Series | Series 90-30 |
| CPU Type | 80188 |
| Clock Speed | 10 MHz |
| User Program Memory | 6 KB |
| Discrete I/O | 160 inputs / 160 outputs |
| Analog I/O | 64 AI words / 32 AO words |
| Serial Ports | 1 (via power supply module) |
| Communication Protocols | SNP, SNP-X, optional Ethernet, FIP, Profibus, GBC, GCM, GCM+ |
| Timers / Counters | 170 units, shift register support |
| Current Load | 410 mA |
| Operating Temperature | 32–140 °F / 0–60 °C |
Frequently Asked Questions
Q: Can the IC693CPU311 work with all Series 90-30 modules?
A: No, it is not compatible with PCM or CCM modules from the Series 90-30 line.
Q: Does it have a battery-backed clock?
A: No, this baseplate does not include a battery-backed clock or override functions.
Q: What communication options are available?
A: It supports a built-in serial port for SNP and SNP-X, plus optional Ethernet, FIP, Profibus, GBC, GCM, and GCM+ modules.
Q: What is the stock and return policy?
A: The IC693CPU311 is brand new and in stock. We ship within 5 days via DHL or standard logistics, with a 30-day return policy.
