GE Fanuc IC693CHS391 Expansion Plate

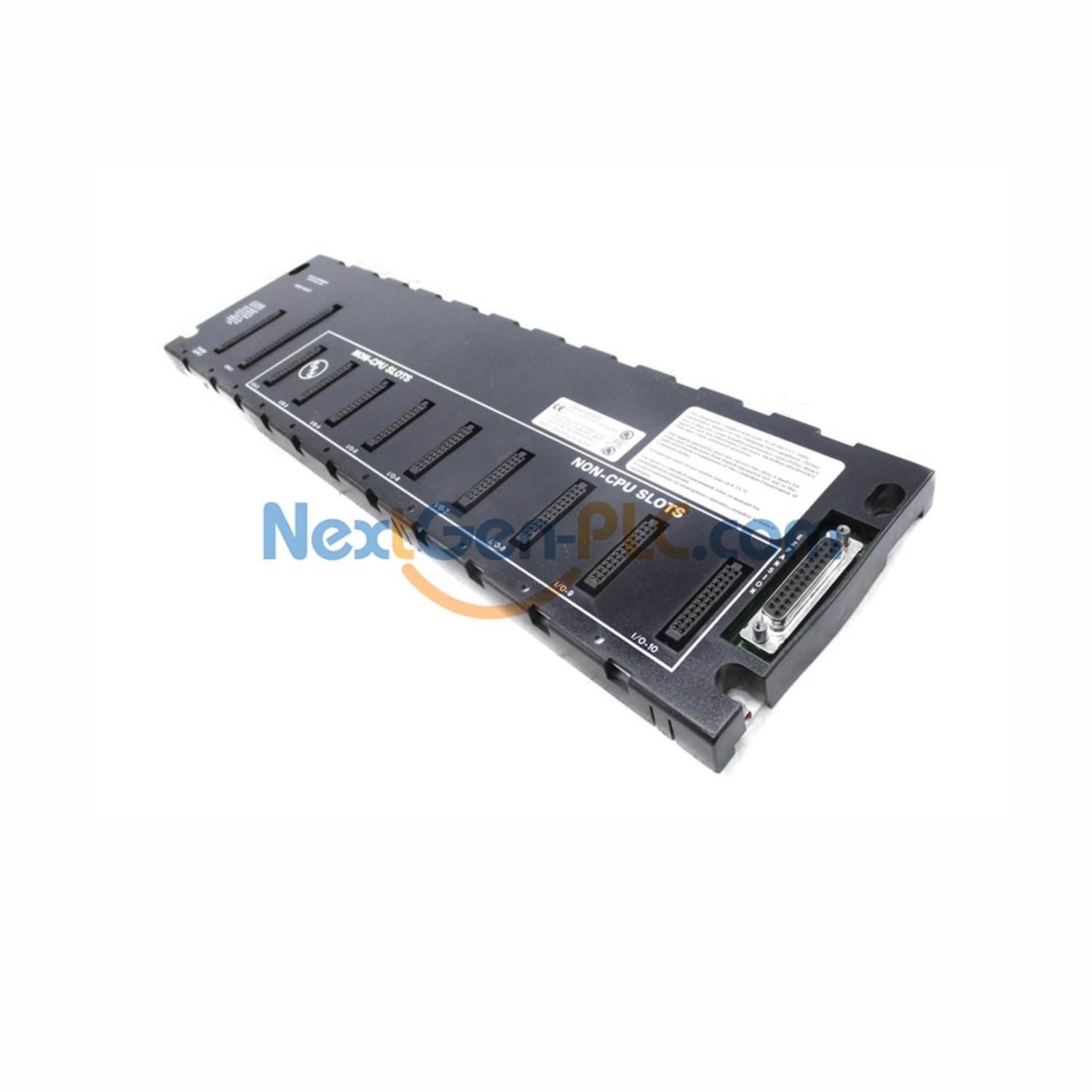

GE Fanuc IC693CHS391 Modular CPU Baseplate – Series 90-30

The IC693CHS391 is a modular CPU baseplate by GE Fanuc for the Series 90-30 PLC system. It has 10 slots to host one CPU, nine I/O modules, and one power supply. A built-in backplane powers all modules efficiently.

Key Specifications

• Brand: GE Fanuc
• Series: Series 90-30
• Part Number: IC693CHS391
• Voltage: 5V DC
• Current: 420 mA
• Total Slots: 10 (1 CPU, 9 I/O, 1 Power Supply)
• Connector: 25-Pin Female
• Expansion Support: Up to 7 baseplates depending on CPU
• Mounting: Vertical or Horizontal

Slot Layout

Features

• Supports one CPU and nine I/O modules.
• Local backplane powers all modules reliably.
• Expansion port connects remote or extra baseplates.
• CPU node address is set to Rack 0; programmable in software.
• Panel mounting works vertically or horizontally.
• Easy installation and module replacement.

Installation Tips

Place the CPU in Slot 1. Slots 2–10 are for I/O modules. Power supply must go to the leftmost slot. Use expansion cables for remote modules under 700 feet. Keep the baseplate dry and clean. Avoid dust and harmful chemicals.

FAQ

Q: Does it support all Series 90-30 CPUs?
A: Yes, but the number of expansion baseplates depends on the CPU model.

Q: Can it be mounted horizontally?
A: Yes, horizontal and vertical mounting are supported.

Q: How far can remote modules be connected?
A: Expansion cables can reach up to 700 feet.

Q: Is IC693CHS391 in stock?
A: Yes, we have IC693CHS391 ready to ship in 5 days via DHL or similar. Returns accepted within 30 days.
