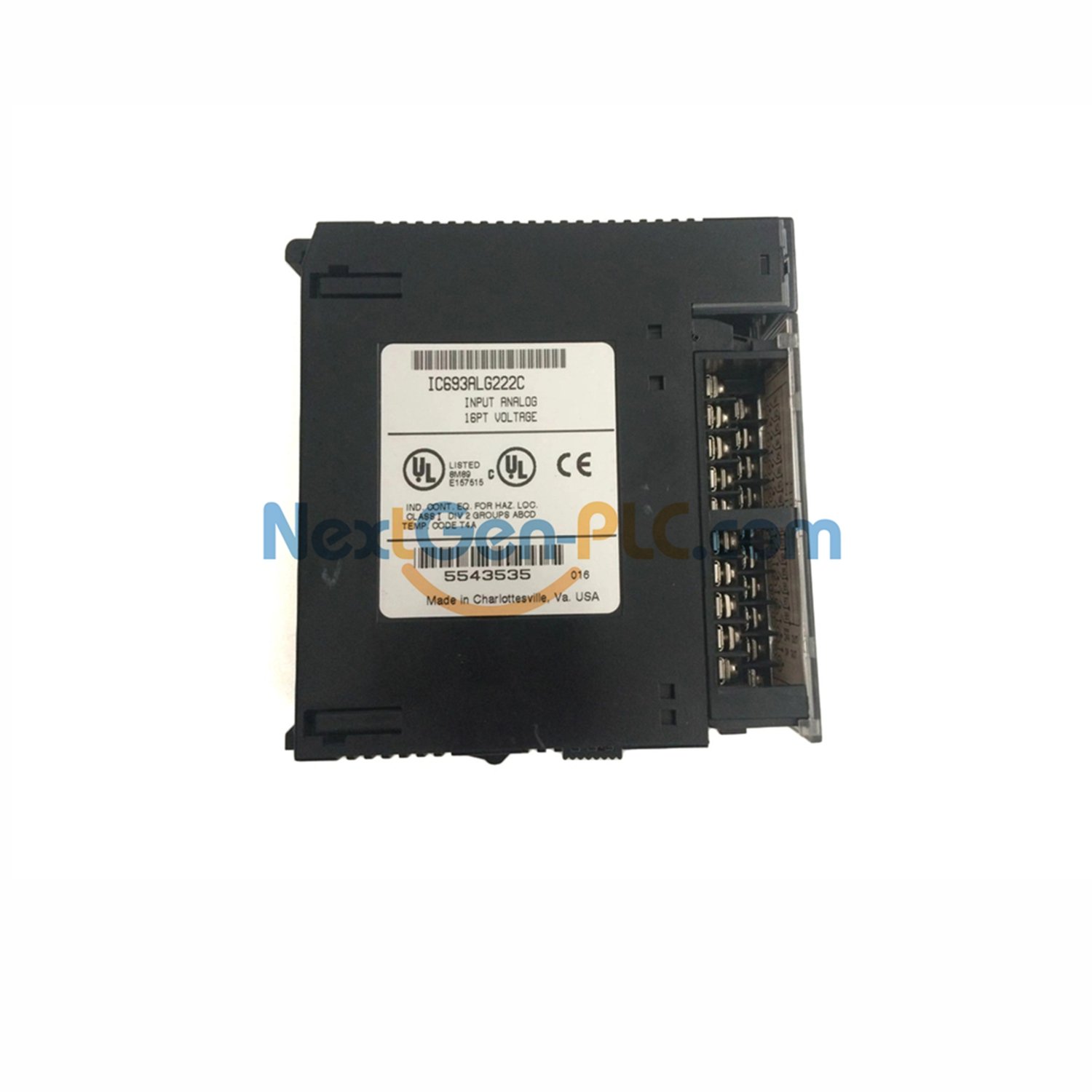

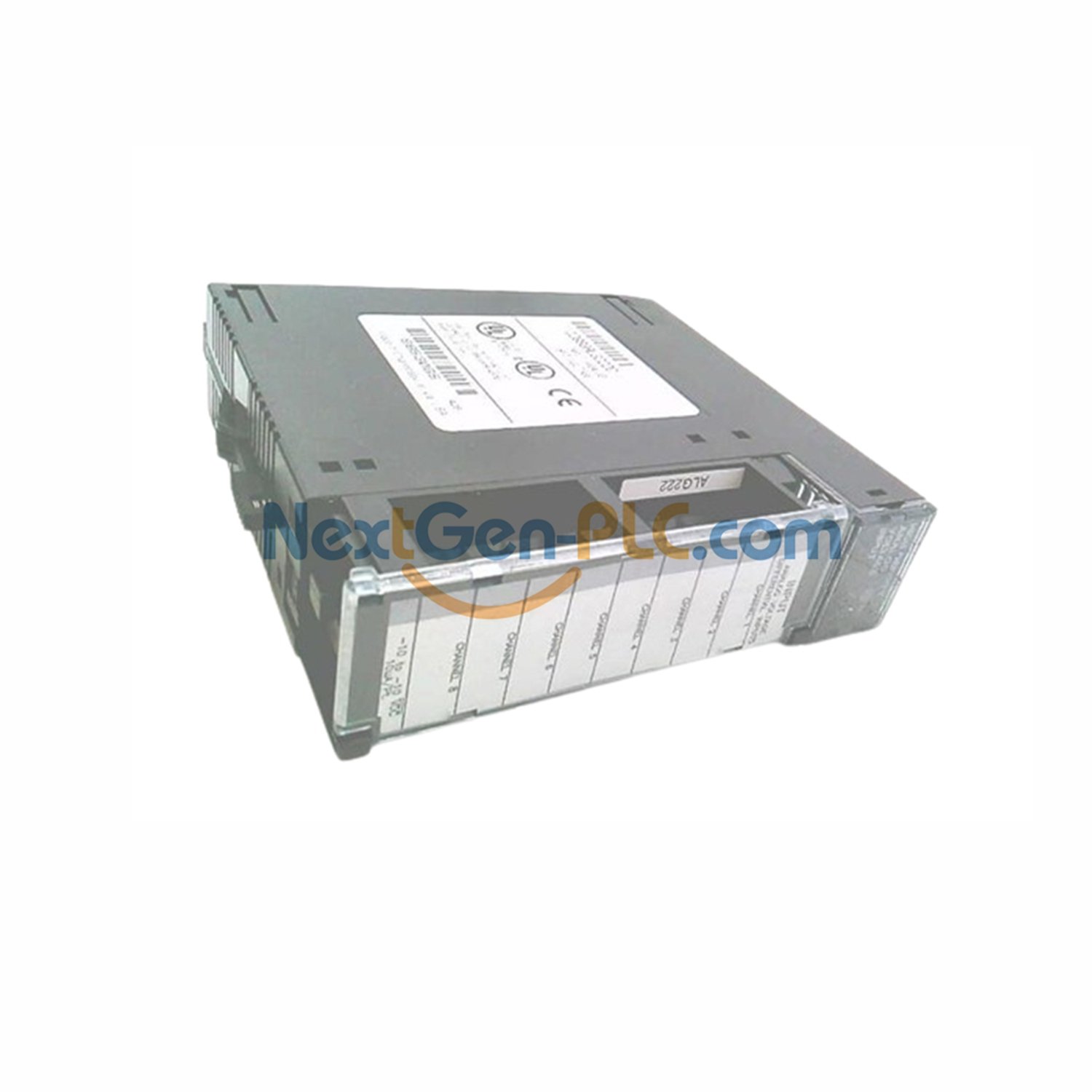

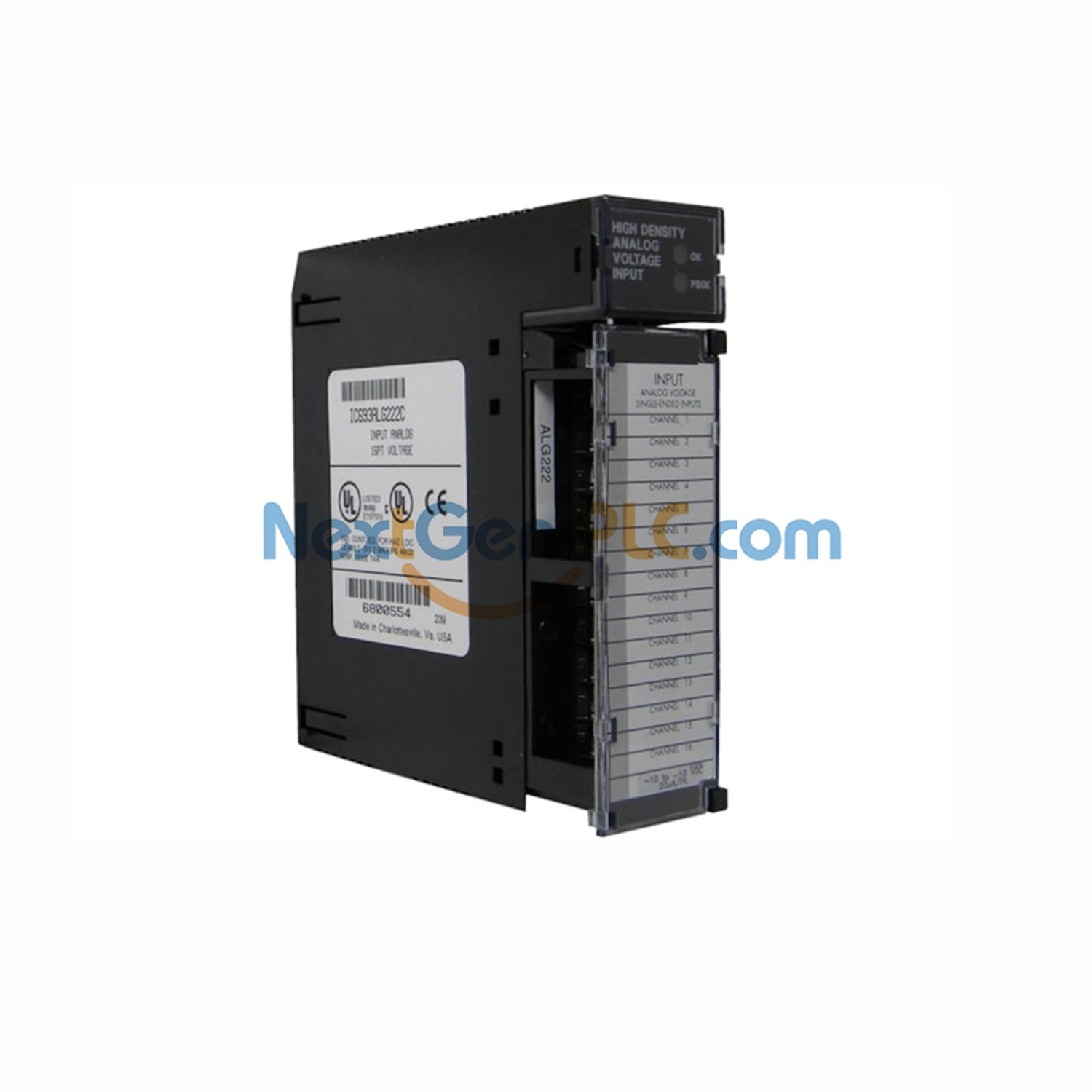

GE Fanuc IC693ALG222 Series 90-30 16-Channel Analog Voltage Input Module
Technical Specifications
| Specification | Value |
|---|---|
| Brand | GE Fanuc |
| Series | Series 90-30 |
| Part Number | IC693ALG222 |
| Channels | 16 |
| Input Range | 0-10 V unipolar, -10 to +10 V bipolar |
| Resolution | 2.5 mV (0-10 V), 5 mV (-10 to +10 V) |
| Linearity | <1 LSB |
| Update Rate | 13 ms all channels |
| Isolation | 1500 V RMS |
| Power | 112 mA at 5 V, 41 mA at 24 V isolated |
| LEDs | Module OK, Power Supply OK |
Features & Benefits
High-resolution inputs give accurate readings.
Supports unipolar and bipolar signals.
Isolation protects PLC logic from noise.
Fits any slot in 5-slot or 12-slot baseplates.
