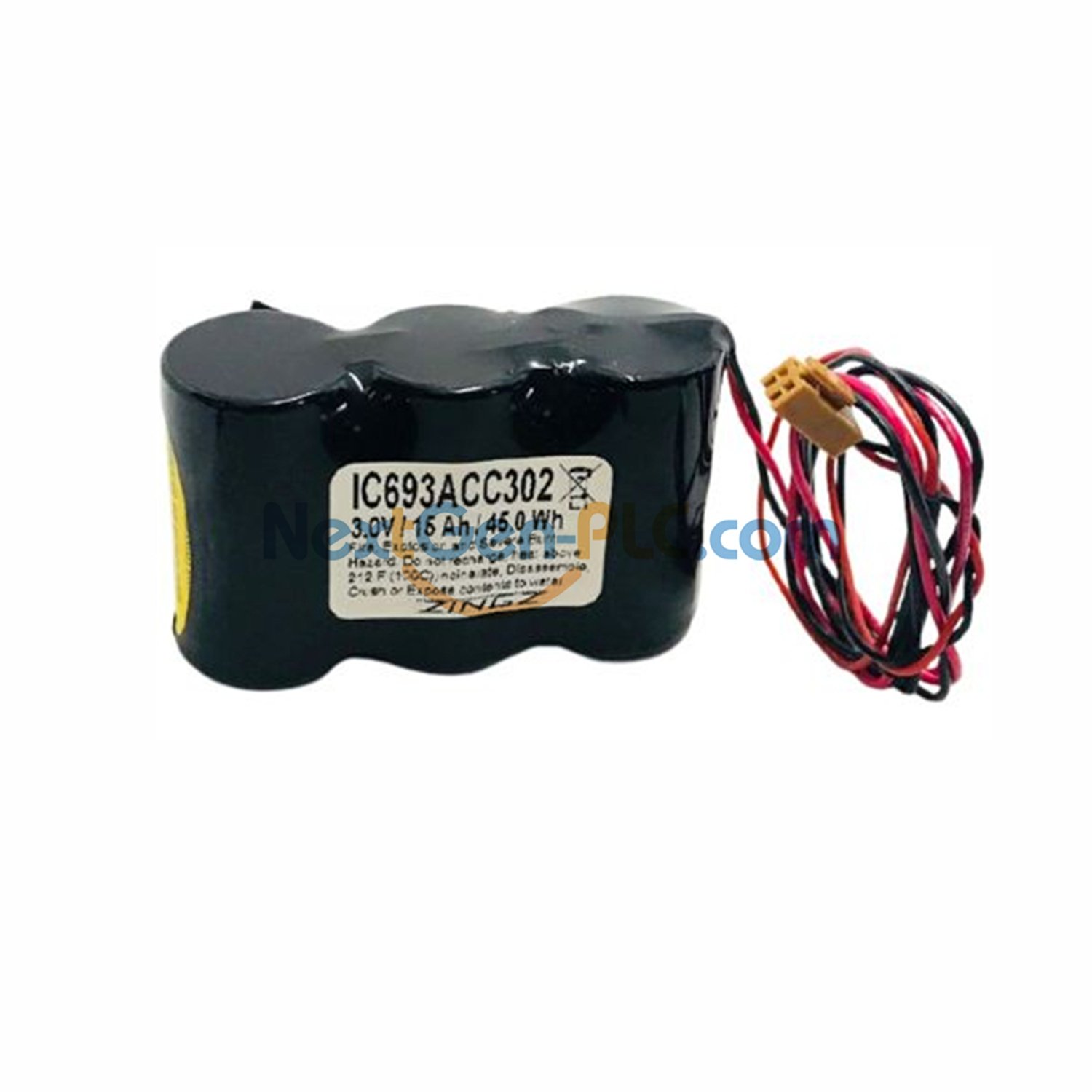

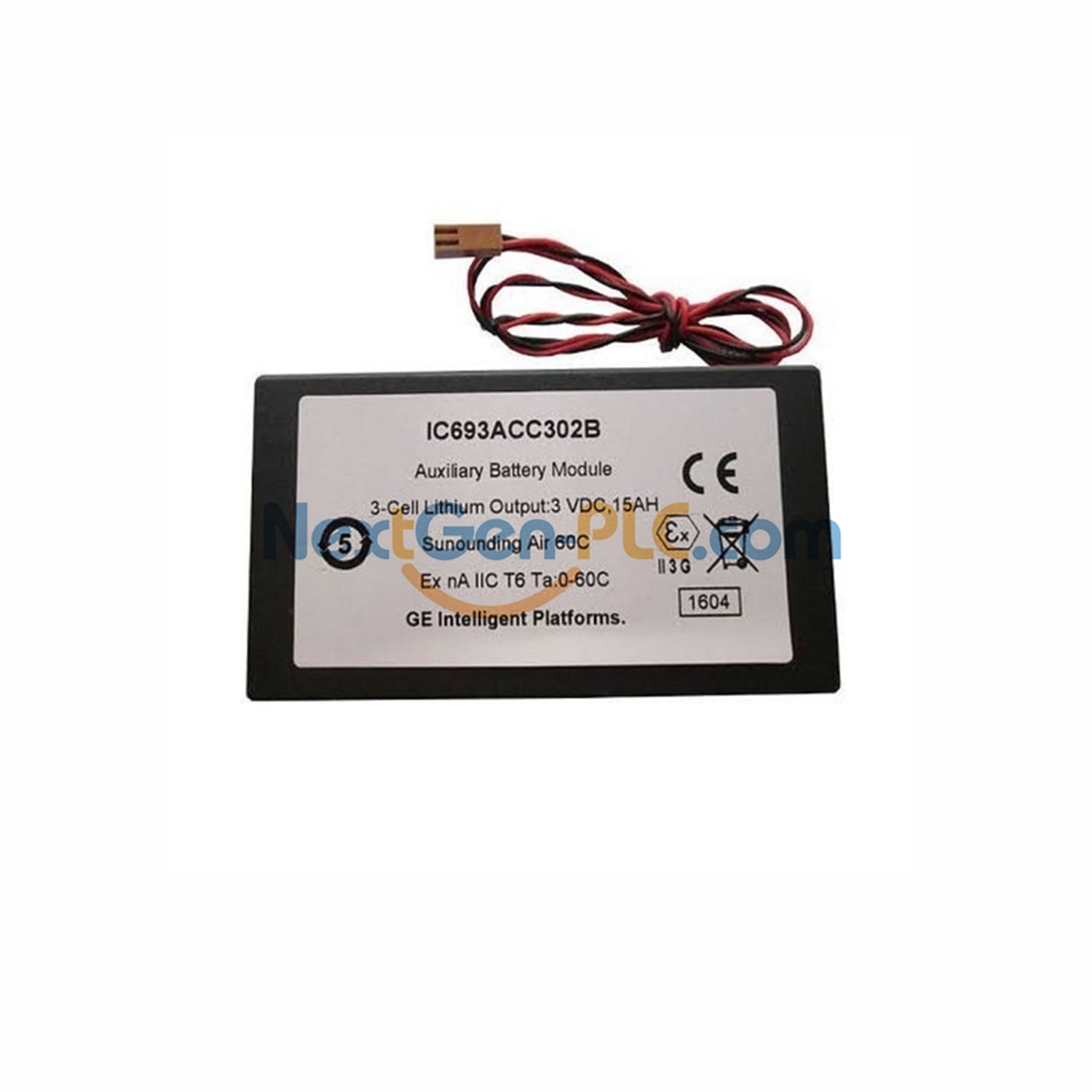

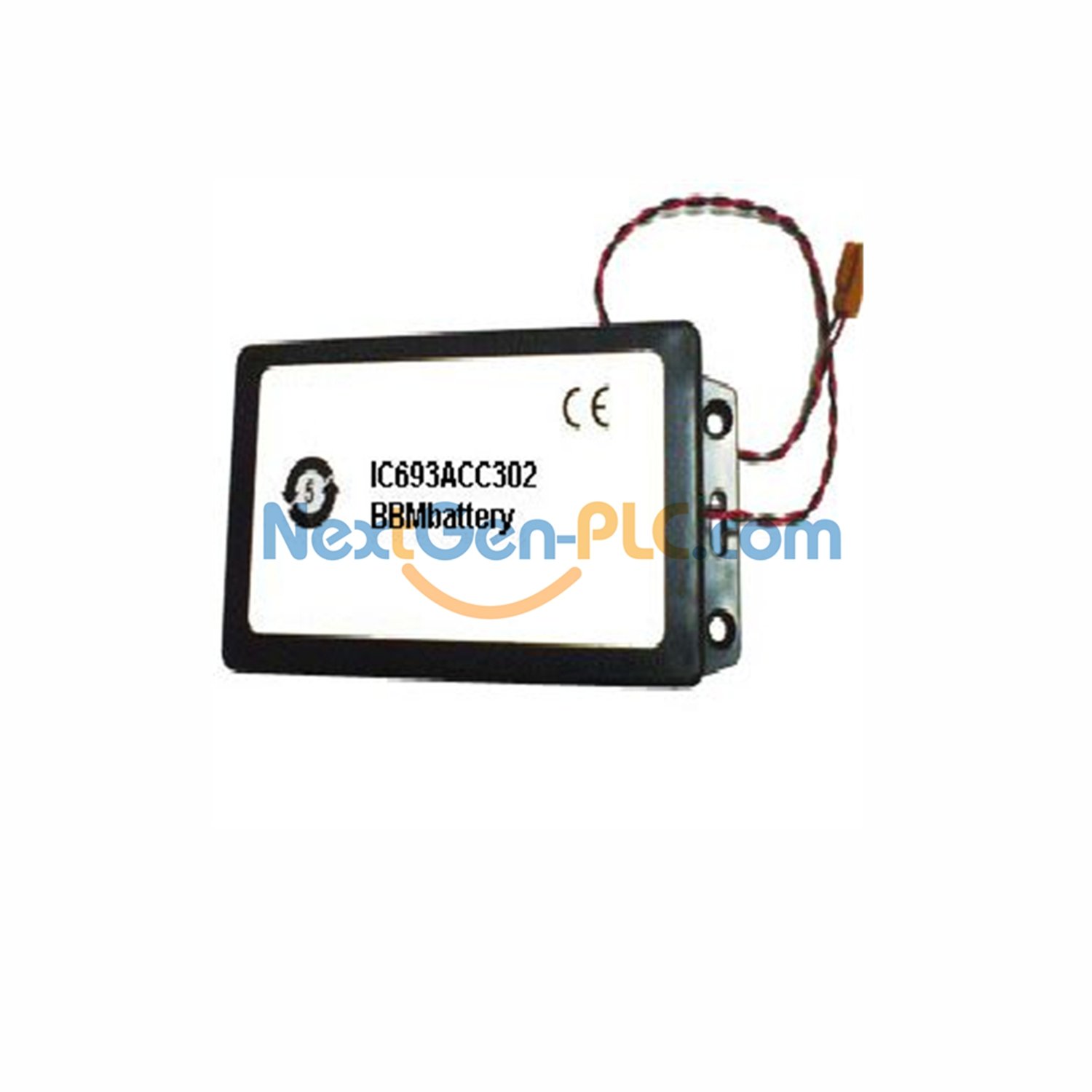

GE Fanuc IC693ACC302 Smart Battery Module

GE Fanuc IC695ACC302 Auxiliary Smart Battery Module for PACSystem RX3i

Technical Specifications

• Manufacturer: GE Fanuc
• Series: PACSystem RX3i
• Part Number: IC695ACC302
• Battery Capacity: 15 Amp-hours
• Lithium Content: 5.1 grams (3 cells @ 1.7 grams each)
• CE Certified: Yes
• Dimensions: 5.713″ × 2.559″ × 1.571″ (145.1 × 65 × 39.9 mm)
• Weight: 224 grams
• Casing: Flame-retardant ABS plastic
• Connector Type: Female 4-pin JAE
• Connection: 0.6 meter twisted red/black 22 AWG leads, 80°C rated
• Adapter Cable: 2″ twisted 22 AWG, 4-pin male to 2-pin female
• Operating Temperature: 0 to 60 °C
• Nominal Shelf Life: 7 years at 20°C
• Total Battery Life: 23–200 days depending on CPU model

FAQ

Q: Which CPUs are compatible with IC695ACC302?
A: PACSystem RX3i and RX7i CPUs, including IC695CPU310, IC695CMU310, IC695CPU320, CRU320, IC698CPE010, IC698CPE020, and IC698CRE020.

Q: What is the battery voltage and capacity?
A: The battery provides 3VDC and 15Ah capacity for extended RAM backup.

Q: How long does the battery last?
A: Backup lasts 23–200 days depending on CPU type, with 7 years nominal shelf life at 20°C storage.

Q: Are shipping and returns available?
A: All units are full new and original. Stock is available. We ship within 5 days via DHL and support returns within 30 days.
