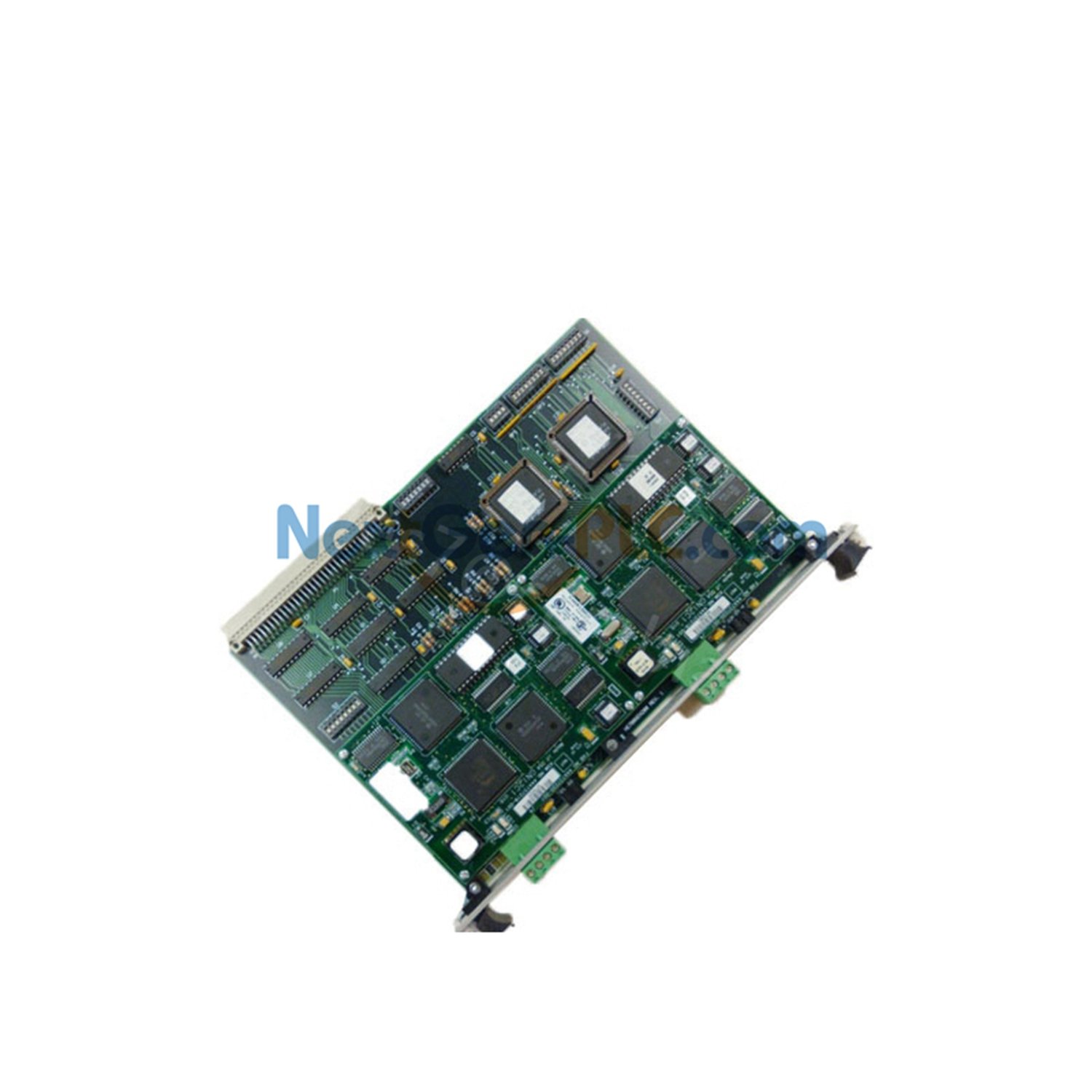

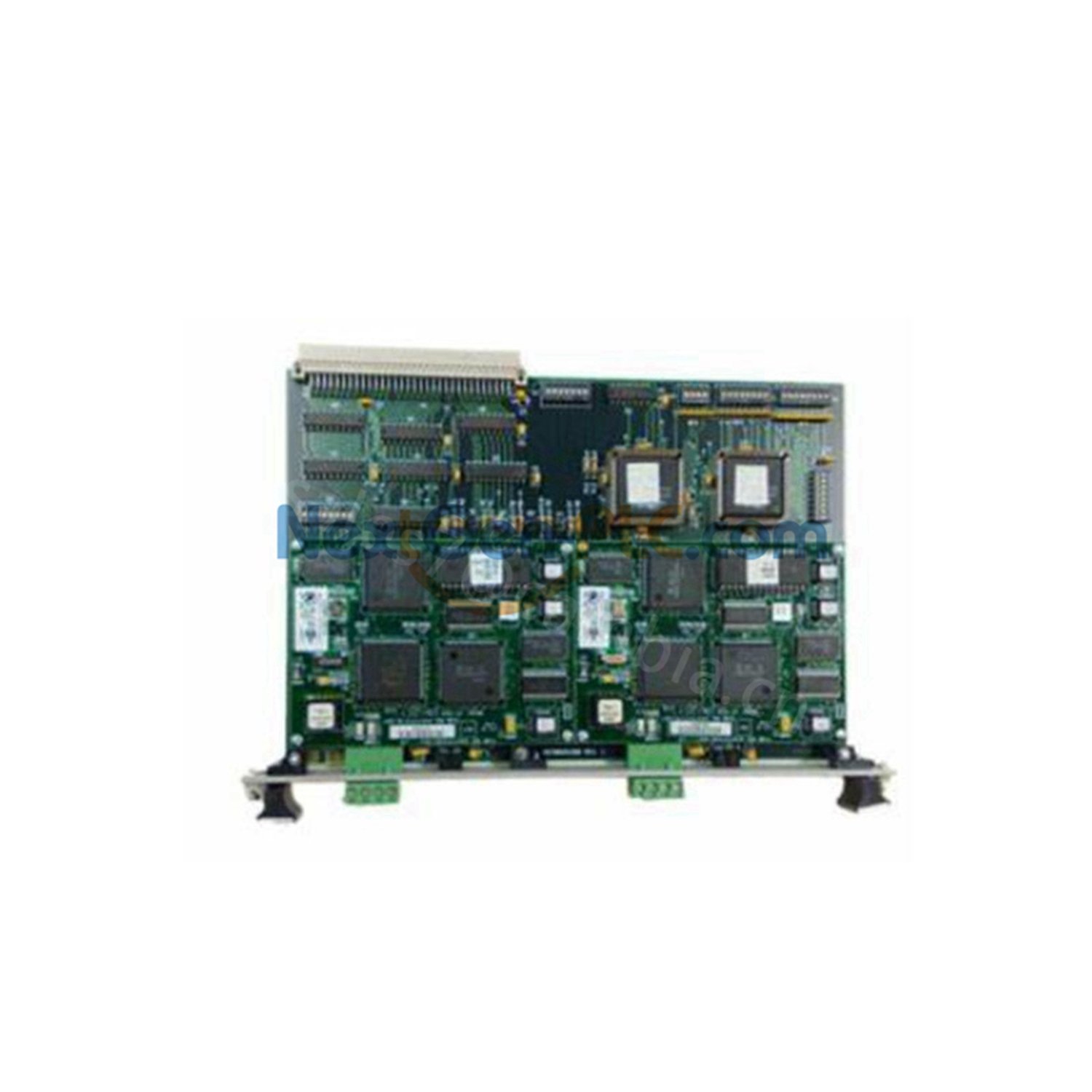

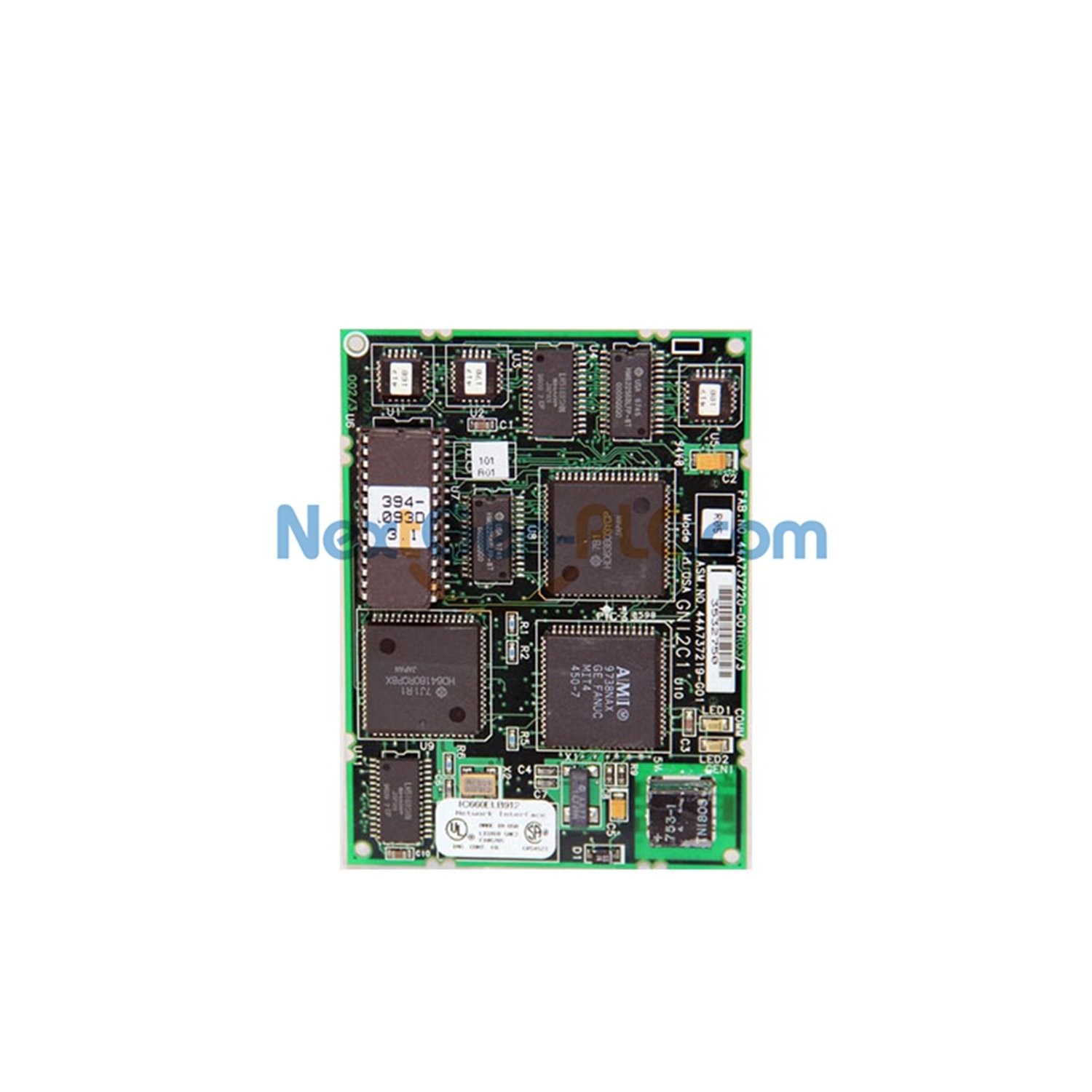

GE Fanuc IC660ELB904 Network Adapter Interface Board

GE IC660ELB904 Genius I/O Network Adapter Interface Board

Key Technical Specifications

• Brand & Model: This is an original GE product, model IC660ELB904, from the Genius I-O series.
• Power Input: It accepts a wide input range of 93 to 132 Volts AC or 105 to 132 Volts DC.
• Electrical Ratings: The board operates at 47-63 Hz frequency and requires 8 Watts of control power.
• Isolation & Protection: It provides a high 1500 Volts block-to-block isolation for system safety.
• Environmental Range: Designed for industrial use, it operates from 0 to 60°C and stores from -40 to 100°C.
• Current Output: Outputs handle 2 Amps steady-state for AC, and 2A resistive / 1A inductive for DC.

Design and Functional Features

• I/O Configuration: The IC660ELB904 organizes I/O into 4 isolated groups, each at 115V AC/125V DC nominal.
• Diagnostic LEDs: Every I/O circuit includes an LED for clear status indication of input voltage or output state.
• Thermal Management: Heat dissipation is rated for 16.8W max with 8 inputs and 45.6W max with 8 outputs at 2A.
• Physical Properties: The interface board has a solid construction with a weight of approximately 1.36 kilograms.
• System Compatibility: It works seamlessly with other Genius devices like handheld monitors and bus controllers.

Frequently Asked Questions (FAQ)

• Q: Is this network adapter in stock?
  A: Yes, we have the IC660ELB904 in ready stock for immediate shipment.
• Q: What power supplies can I use with it?
  A: It supports both AC (93-132V) and DC (105-132V) power inputs for flexible installation.
• Q: How many I/O points does it have?
  A: The board manages I/O in 4 isolated groups, typically supporting up to 8 circuits.
• Q: What is the lead time for shipping?
  A: We process and ship all orders within 5 business days after payment confirmation.
• Q: What is the operating temperature limit?
  A: The IC660ELB904 is rated for reliable operation from 0 to 60 degrees Celsius.
• Q: Do you offer a return policy?
  A: We provide a 30-day return policy for your confidence and satisfaction.
