GE Fanuc IC660EBD101 I/O Module

GE Fanuc Genius I/O Electronic Assembly

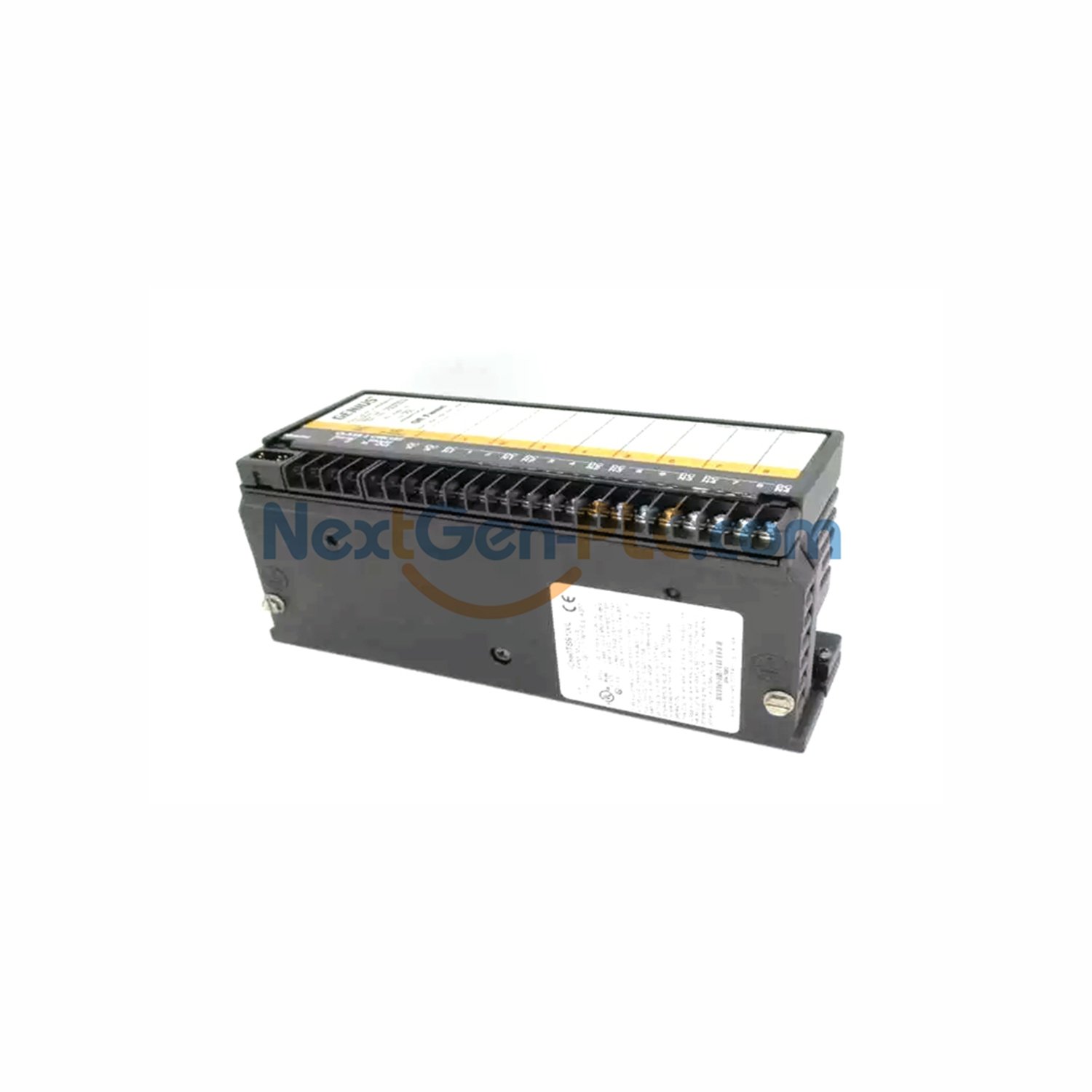

The GE Fanuc IC660EBD101 is a replacement electronic assembly for the Genius I/O block series. It forms the core component of the IC660BBD101 115V AC combination input/output block.

Core Specifications & Product Details

• Brand: GE Fanuc
• Series: Genius I/O Block
• Model: IC660EBD101
• Product Type: Replacement Electronic Assembly
• Compatible Block: IC660BBD101 Eight-Circuit 115V AC I/O Block
• Required Base: Must be installed on terminal base IC660TBD101.

Electrical Ratings & Power Specifications

• The assembly operates on 93 to 132 Volts AC, 47-63 Hz.
• Nominal system voltage is 115 V AC.
• Standby power consumption is 8.5 Watts with all I/O off.
• Each output channel can deliver up to 2 Amperes of current.
• Input current requirement is 6 mA per point.
• Maximum heat dissipation is 43.5 Watts with all 8 outputs active at 2A.
• It features a high 1500 Volts block-to-block isolation rating.

Input/Output Configuration & Diagnostics

• This assembly provides 8 fully configurable circuits.
• Each channel can be individually set as an input or an output.
• Comprehensive diagnostics include short-circuit, open-wire, and overload detection.
• It also performs overtemperature, no-load, and failed-switch diagnostics.
• The assembly contains protective components like an MOV and a 0.1 µF capacitor.
• It supports wiring for both non-tristate and tristate inputs.

Physical & Environmental Specifications

• Typical block dimensions are 8.83 x 3.50 x 3.94 inches.
• Approximate weight is 4 pounds (1.8 kg).
• Operating temperature range is 0°C to 60°C (32°F to 140°F).
• Storage temperature range is -40°C to 100°C (-40°F to 212°F).
• It operates in 5% to 95% non-condensing humidity.
• Vibration resistance is 5-10 Hz at 2-inch displacement.

Status Indicators & Packaging

• Each of the 8 circuits has a dedicated LED status indicator.
• LEDs show input voltage presence or CPU-commanded output state.
• Additional LEDs indicate “I/O Enabled” and “Unit OK” status.
• We supply new and original IC660EBD101 replacement assemblies.
• Orders are processed and shipped within 5 business days.
• We ship via reliable carriers including DHL, FedEx, and UPS.

Frequently Asked Questions (FAQ)

• Q: Is this IC660EBD101 a new, genuine part?
  A: Yes, we supply only 100% new and genuine GE Fanuc replacement assemblies.
• Q: Is this a complete I/O block?
  A: No. This is the electronic assembly (board) only. It must be installed onto a IC660TBD101 terminal base to form a complete block.
• Q: What does it replace?
  A: It is the direct replacement assembly for the Genius I/O Block model IC660BBD101.
• Q: Are the I/O points configurable?
  A: Yes, all 8 circuits are individually configurable as either a 115V AC input or a 115V AC output.
• Q: What diagnostic features does it have?
  A: It features advanced diagnostics for short circuits, open wires, overloads, and overtemperature conditions.
• Q: What is your return policy?
  A: We offer a 30-day return policy for items in new, unused condition with original packaging.
