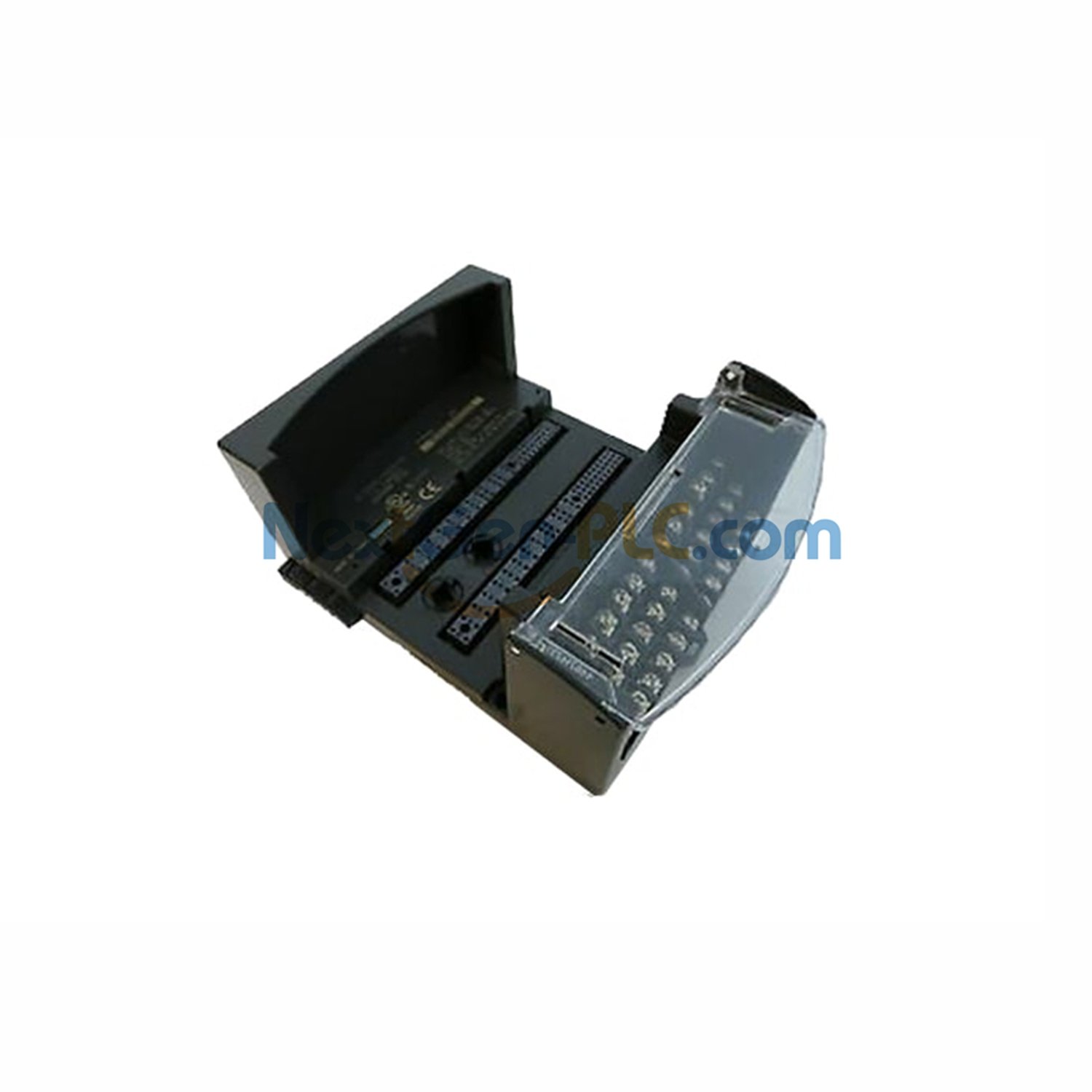

GE Fanuc IC200CHS101 I/O Terminal Module

GE Fanuc IC200CHS101 Disconnect Terminal

The IC200CHS101 lets you turn off devices one by one. It sits between field wires and I/O carriers. Switch off single devices easily. Good for maintenance work.

Key Features

This module adds control to your system. Isolate devices without shutting down. Makes maintenance faster and safer. Easy to set up and use.

• Type: Disconnect I/O Terminal
• Brand: GE Fanuc
• Series: Versamax
• Size: 115 x 65 x 126 mm
• Solid Wire: 0.2 to 4.0 mm²
• Stranded Wire: 0.2 to 2.5 mm²
• Screw Torque: 0.5 to 0.6 Nm
• Space Needed: 2″ top/bottom, 1″ sides

Wiring Guide

Use solid wire: 0.2-4.0 mm². Use stranded wire: 0.2-2.5 mm². Two wires: 0.2-1.5 mm² each. Add ferrules to stranded wires.

Set screws to 0.5-0.6 Nm. Do not use plastic sleeves. Keeps connections tight. Prevents loose wires.

Works With These Cables

Choose from three cables:

IC200CBL105 – Short cable

IC200CBL110 – Medium cable

IC200CBL120 – Long cable

J1 port for I/O carriers. J2 port for extra base. Builds complete system.

How to Install

Mount on DIN rail. Leave 2 inches above. Leave 2 inches below. Keep 1 inch on sides.

Controls A1 to A18 terminals. Knife-switch for each device. Fix one device while others run. Saves time during repairs.

Common Questions

Which cables fit?

IC200CBL105, IC200CBL110, and IC200CBL120 cables.

Can I turn off one device?

Yes, switch off single devices without affecting others.

What wires work?

Solid: 0.2-4.0 mm², Stranded: 0.2-2.5 mm², Two wires: 0.2-1.5 mm².

How tight for screws?

Use 0.5 to 0.6 Nm on all terminal screws.

Need special ports?

J1 for carriers, J2 for extra base unit.

Is this new?

Yes, we sell only new GE Fanuc products.
