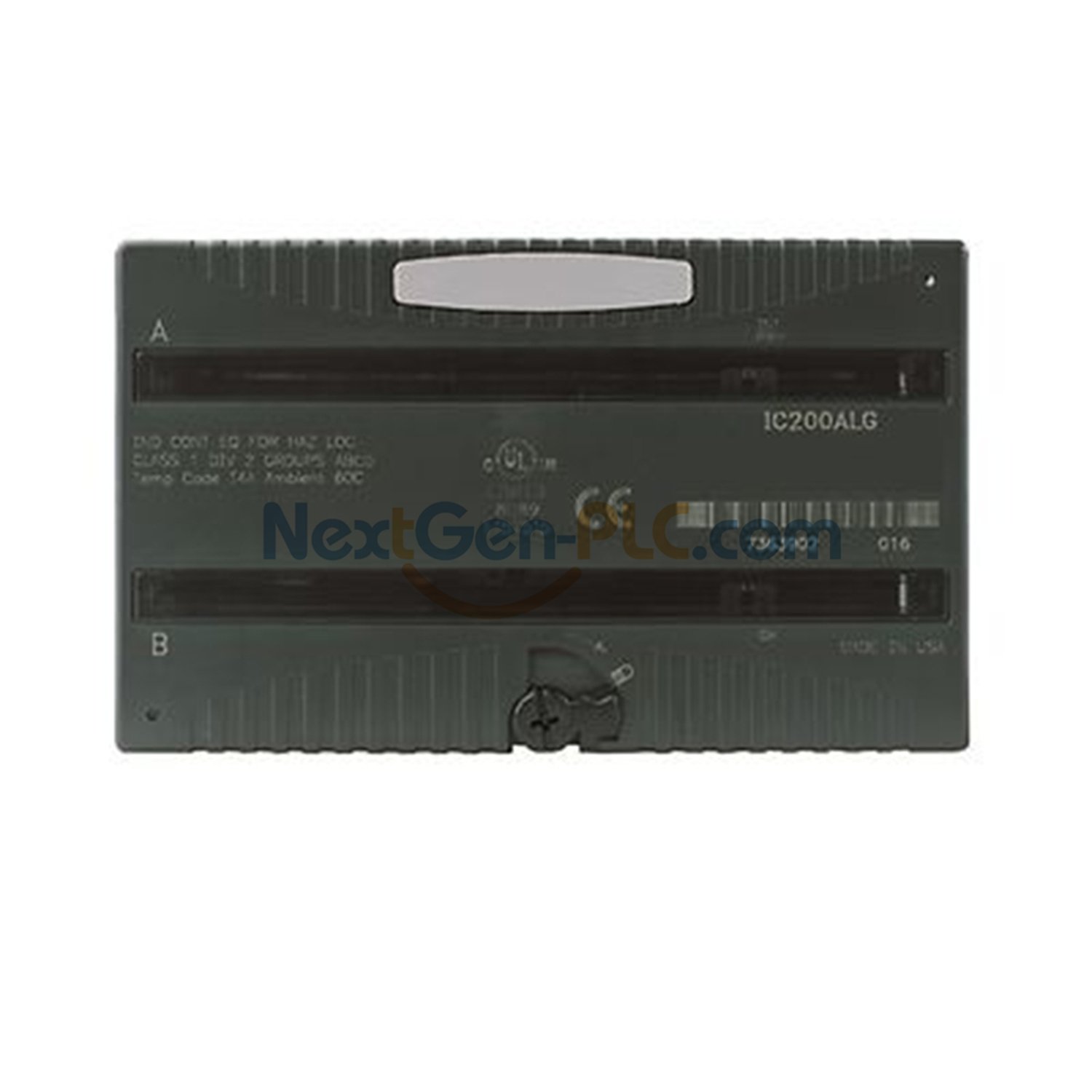

GE Fanuc IC200ALG322 Output Module

GE Fanuc IC200ALG322 Output Module

The IC200ALG322 controls voltage signals. It has 4 output channels. Sends ±10 VDC signals. For VersaMax systems.

Product Facts

• Brand: GE Fanuc
• Model: IC200ALG322
• Series: VersaMax
• Channels: 4
• Output: ±10 VDC
• Resolution: 12-bit
• Power Use: 160 mA max
• Lights: 2 LEDs

Technical Specs

• Output: Voltage
• Range: ±10 VDC
• Resolution: 12 bits
• Power: 160 mA max
• Isolation: 250VAC
• Load: 5000 Ohms min
• Noise Rejection: 70 dB
• Max Voltage: 10.24V DC

Key Features

• 4 output channels
• ±10 VDC signals
• 12-bit resolution
• Low power use
• Two status lights
• Good noise rejection
• Finds power issues
• Easy to install

Installation

• Mount on VersaMax rack
• Add external power
• Connect 4 outputs
• Check status lights
• Use setup software
• Test all channels

Performance

• Works in tough areas
• Handles heat well
• Reduces noise
• Good signal quality
• Stable operation
• Reliable outputs

Uses

• Motor controls
• Valve control
• Test gear
• Process control
• Signal making
• Factory automation

Package

• One module
• Safe box
• Paper work
• Fast shipping

Questions

• Output? ±10 VDC
• Channels? 4
• Power? 160 mA
• Resolution? 12-bit
• Noise? 70 dB
• Lights? 2
• Isolation? 250VAC
