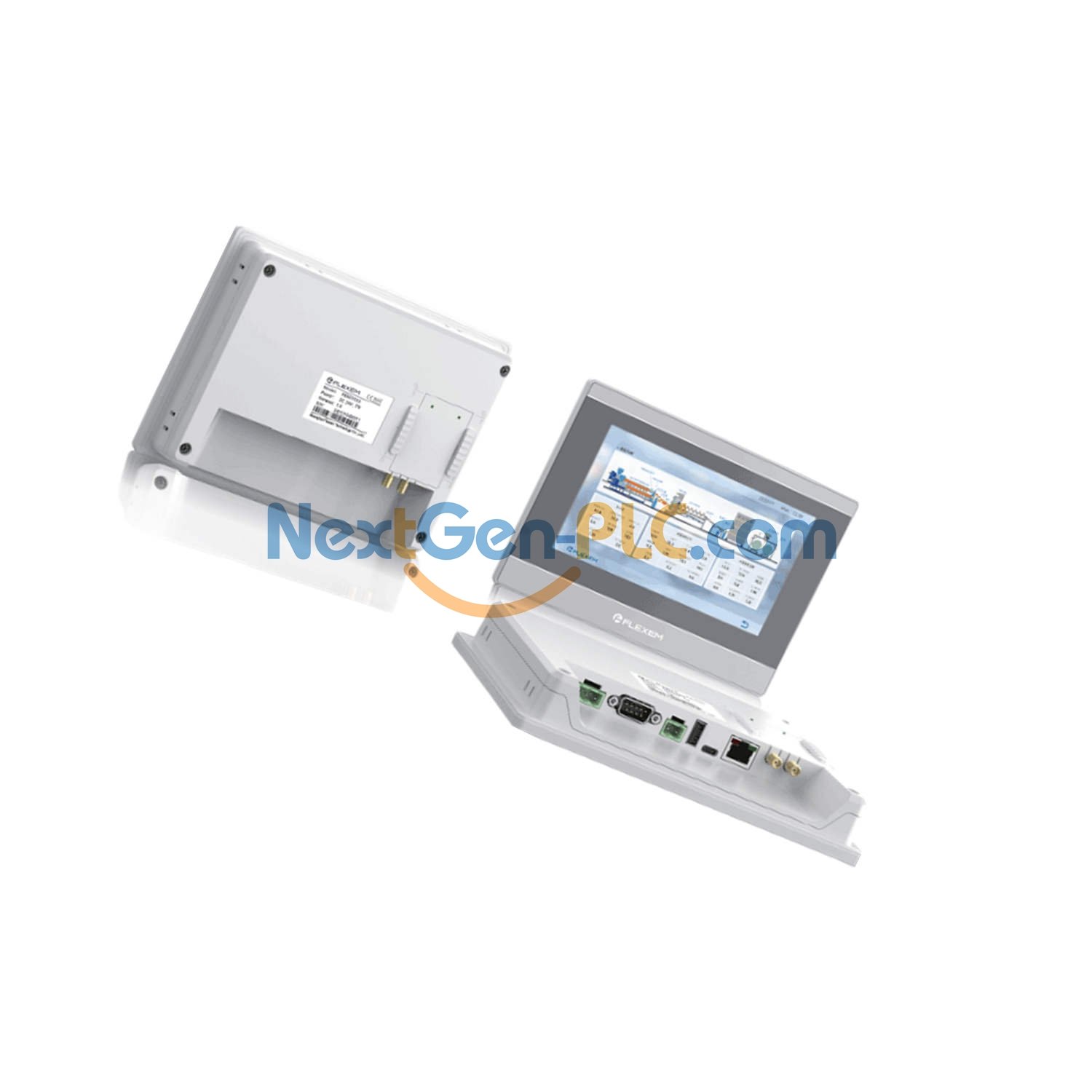

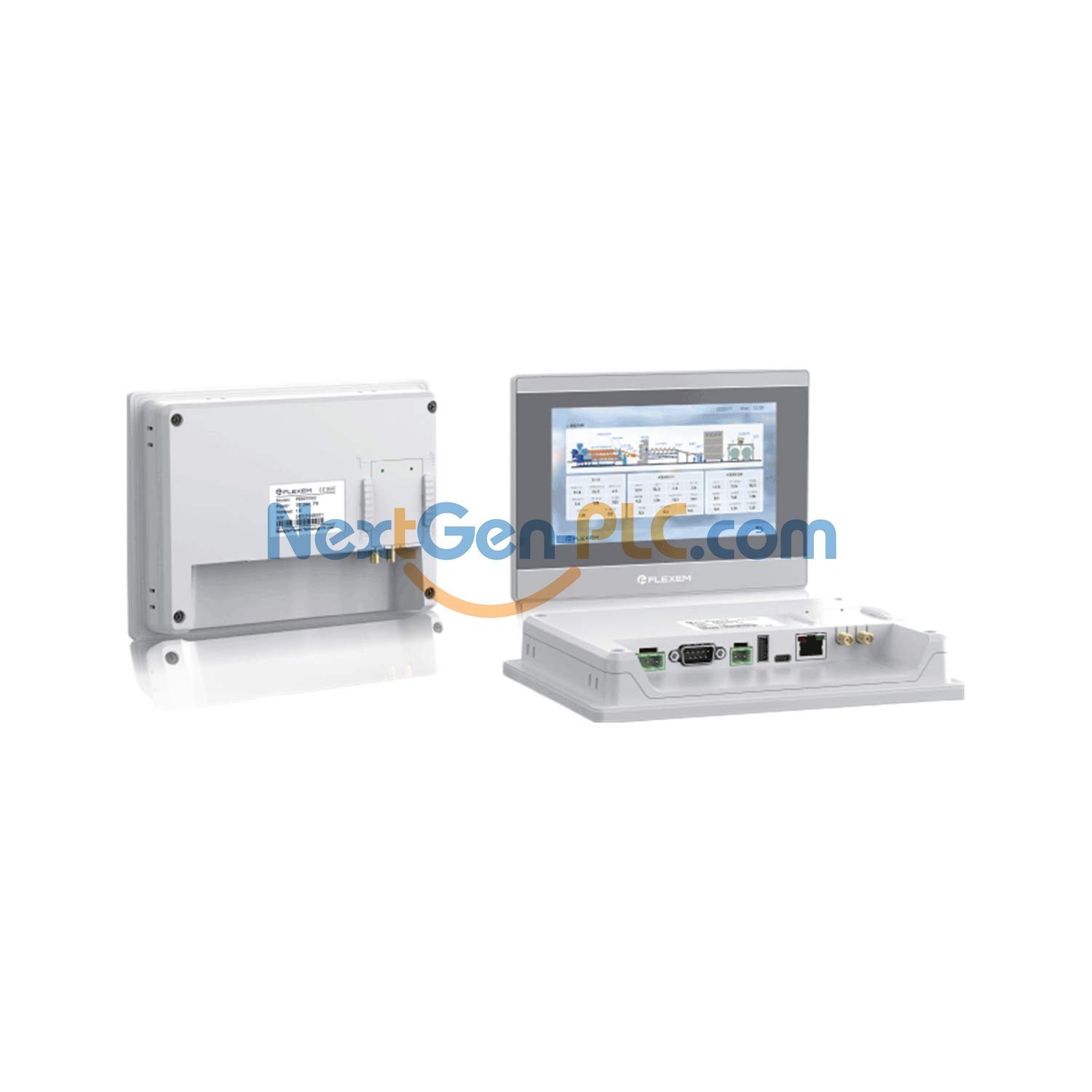

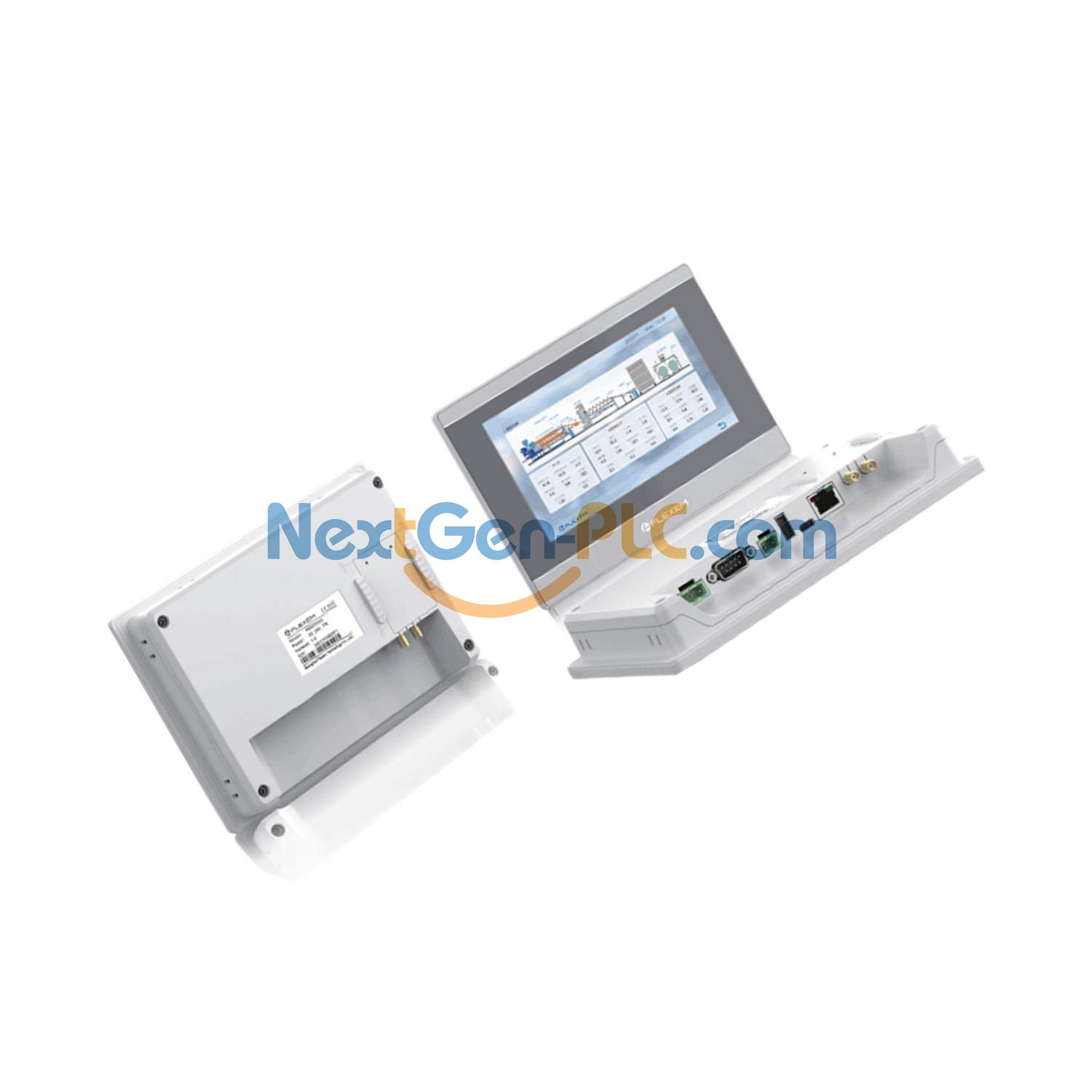

Flexem FE6370C IoT HMI | 6300 Series

Flexem FE6370C: Enhanced 6300 Series IoT HMI

Display Specifications & Touch Interface

• The FE6370C features a standard 7-inch TFT LCD with a 16:9 aspect ratio.
• It has a resolution of 800 × 480 pixels with viewing angles of 50°/70°/70°/70°.
• The screen delivers 24-bit color and a bright 350 cd/m² output with LED backlight.
• Operation relies on a dependable 4-wire resistive touch screen.

Core Processing Hardware & Memory

• This model is powered by a 1 GHz dual-core ARM Cortex-A7 processor.
• It comes with 4 GB of eMMC storage and 256 MB of DDR3 RAM.
• A built-in Real-Time Clock (RTC) ensures accurate timekeeping for data logging.

Complete Technical Specifications

• Brand & Model: Flexem FE6370C (6300 Series)
• Connectivity & I/O Ports:
  • USB: 1 x Type-C 2.0 port, 1 x USB Type-A port
  • Program Download: Via USB Slave Port or USB Flash Drive
  • Serial Ports:
    • COM1: RS232 / RS485 / RS422
    • COM2: RS485
    • COM3: RS232
• Power System:
  • Rated Power: < 10W
  • Input Voltage: DC 24V (Wide Working Range: 9V ~ 28V)
  • Power Interruption Tolerance: < 5 mS
  • Protection: Lightning surge protection
• Environmental & Durability:
  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -20°C to 60°C
  • Humidity: 10-90% RH (Non-condensing)
  • Protection Rating: Front IP65, Rear IP20
  • Vibration Endurance: 10-25 Hz, 2G for 30 min (X, Y, Z axes)
  • Cooling Mode: Natural Convection
  • Enclosure Material: Engineering Plastic
• Physical Dimensions:
  • Panel Cutout Size: 190 × 136 mm (+1.5/-0.0 mm tolerance)
  • Unit Dimensions: 204 × 145 × 36.6 mm (±0.3 mm)
  • Weight: Approximately 476g
• Certifications: CE, RoHS

Frequently Asked Questions (FAQ)

• Q: How does the FE6370C differ from the standard 6000 series?
  A: The FE6370C offers a key upgrade with a faster 1 GHz dual-core CPU and larger 4 GB eMMC storage for better performance.
• Q: What is the screen resolution?
  A: It features an 800 x 480 pixel resolution on its 7-inch display, suitable for standard HMI applications.
• Q: What type of USB ports are available?
  A: It includes both a modern Type-C 2.0 port and a standard USB Type-A port for connectivity flexibility.
• Q: What is the operating temperature range?
  A: This HMI is designed to operate from 0°C to 50°C.
• Q: What is the power input range?
  A: It accepts a wide DC 9V to 28V input, with a nominal 24V rating, for use with various power supplies.
