Flexem FE6070H Industrial HMI | 7″ 6000 Series Touch Panel

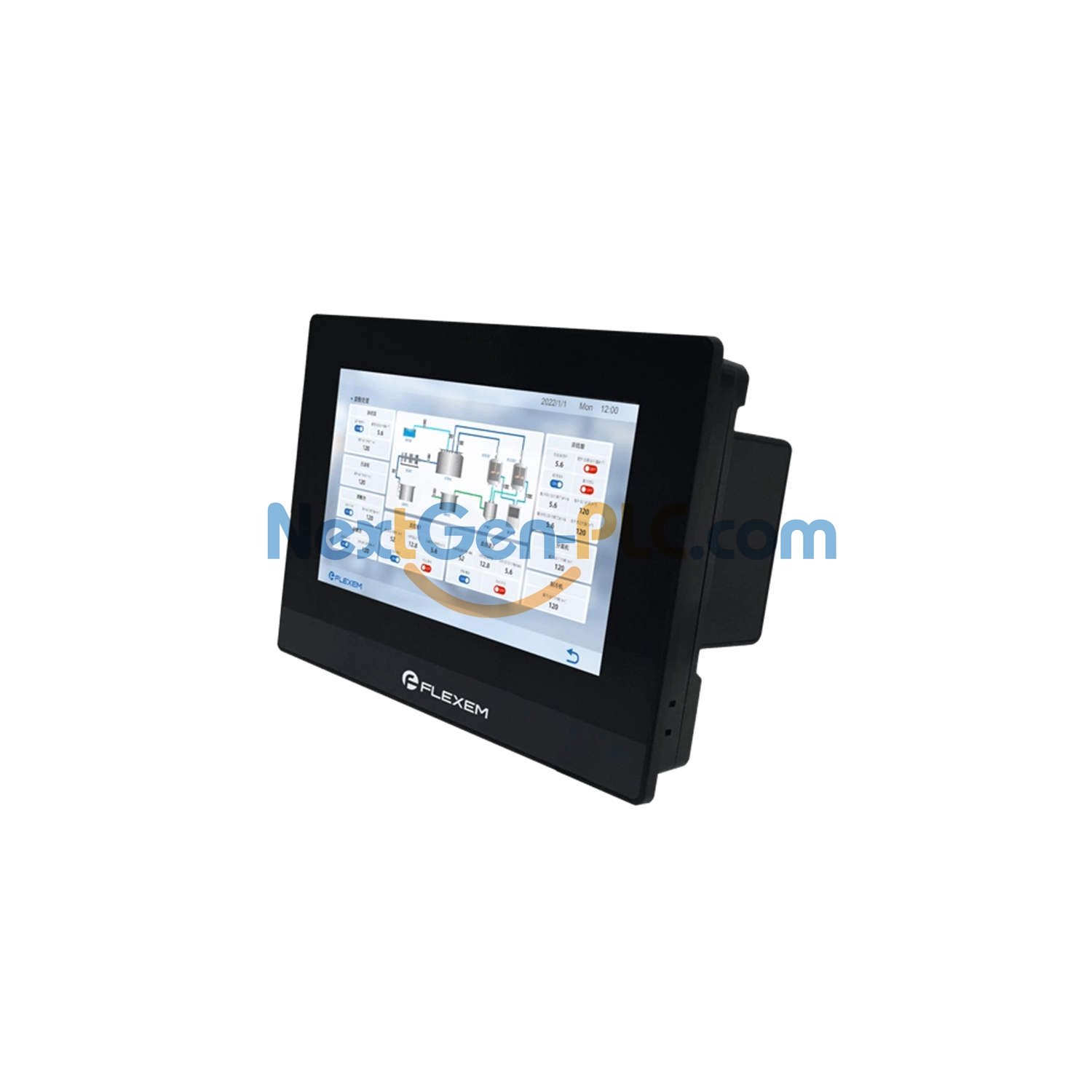

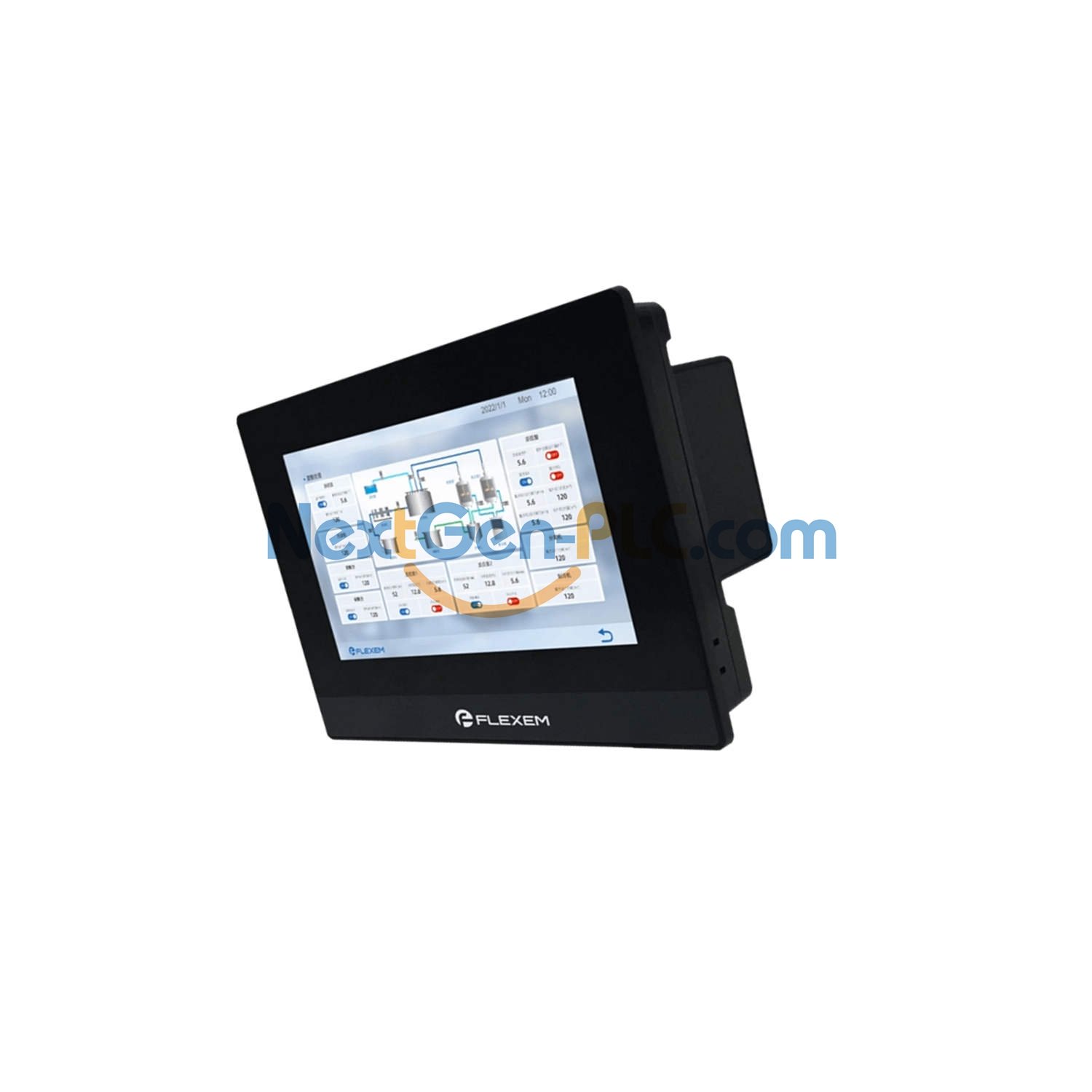

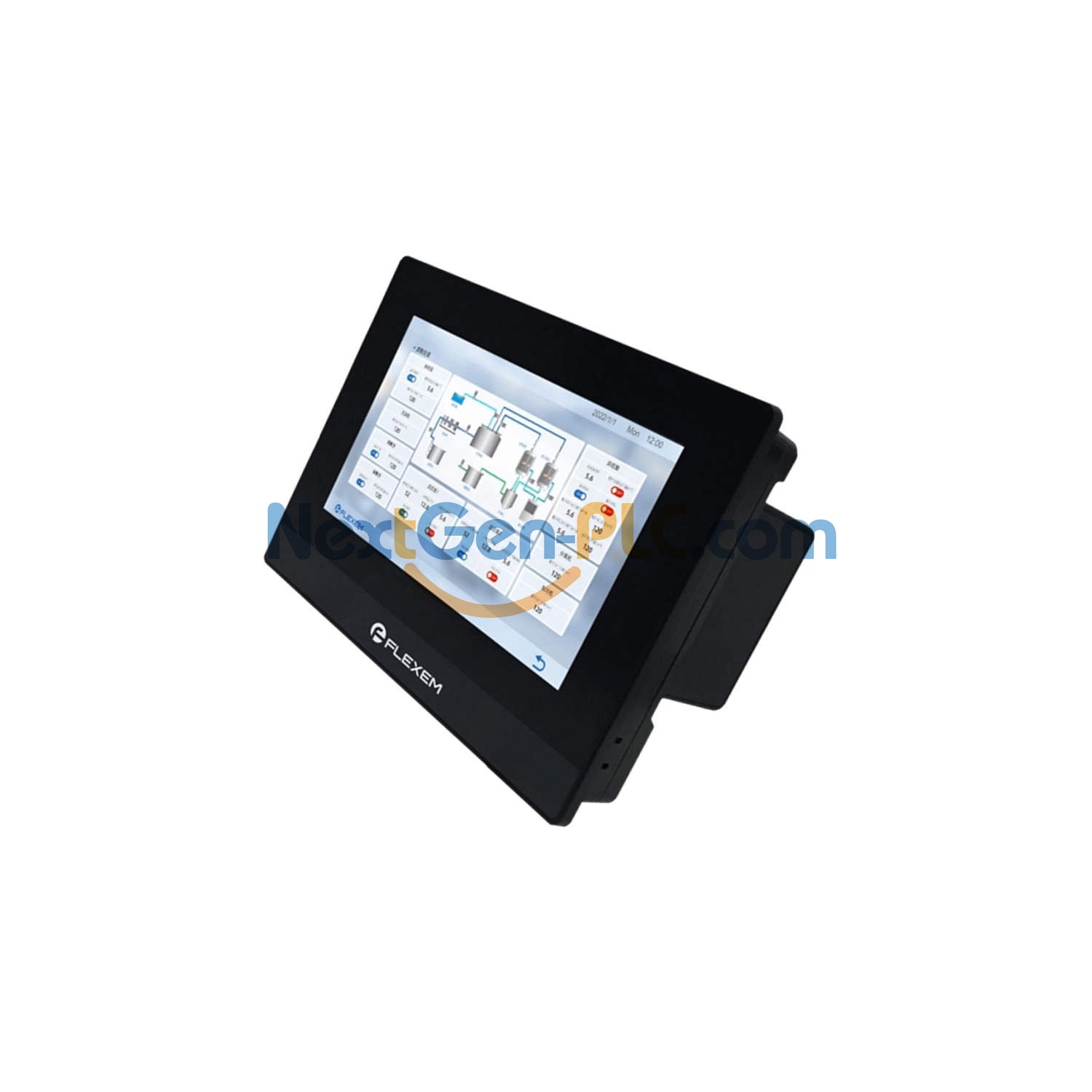

Flexem FE6070H: The Cost-Effective 6000 Series Industrial IoT HMI

Clear Display & Durable Touch Interface

• The FE6070H integrates a sharp 7-inch TFT LCD with a 16:9 aspect ratio.
• Its resolution is 1024 × 600 pixels with wide 85°/85°/85°/85° viewing angles.
• The screen delivers rich 24-bit color and a high 350 cd/m² brightness.
• Input is managed by a robust 4-wire industrial resistive touchscreen.

Processing Power & Memory Options

• Version 2 (V2): Features a 600 MHz ARM Cortex-A8 CPU with 128 MB Flash and 128 MB DDR3 memory.
• Version 3 (V3): Upgraded to a 1.2 GHz ARM Cortex-A7 CPU with 4 GB eMMC and 256 MB DDR3 memory.

Comprehensive Technical Specifications

• Brand & Model: Flexem FE6070H (6000 Series)
• Connectivity:
  • Ethernet: 1x or 2x 10/100 Mbps ports (model dependent)
  • USB: 1x USB Slave 2.0 + 1x USB Host 2.0
  • Program Download: Via USB Slave, USB Flash Drive, or Ethernet
  • Serial Ports:
    • COM1: RS232 / RS485 / RS422
    • COM2: RS485
    • COM3: RS232
• Power & Electrical:
  • Rated Power: < 10 W
  • Input Voltage: DC 24V (Wide Range: 9V ~ 28V)
  • Power Interruption Tolerance: < 5 mS
  • Protection: Lightning surge protection
• Environmental & Durability:
  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -20°C to 60°C
  • Humidity: 10-90% RH (Non-condensing)
  • Protection Rating: Front IP65 (with NEMA panel), Rear IP20
  • Vibration Endurance: 10-25 Hz, 2G for 30 min (X, Y, Z axes)
  • Material: Engineering Plastic Enclosure
• Physical Dimensions:
  • Panel Cutout: 192 × 138 mm
  • Unit Dimensions: 204 × 145 × 33.8 mm
  • Weight: Approximately 560g
• Certifications: CE, RoHS
• IoT Capability: Optional Flink IoT module for cloud connectivity.

Frequently Asked Questions (FAQ)

• Q: Which version, V2 or V3, should I choose?
  A: Choose V3 for more demanding applications. It has a faster 1.2 GHz CPU and larger 4GB eMMC storage compared to V2.
• Q: How bright is the display?
  A: The screen has a high 350 cd/m² brightness, making it readable under various lighting conditions.
• Q: What is the key feature of the Flink IoT module?
  A: The optional module instantly transforms the HMI into an IoT gateway, enabling secure data exchange with cloud platforms.
• Q: What is the operating temperature?
  A: It is rated for 0°C to 50°C, covering typical industrial environments.
• Q: How do I download application programs to the device?
  A> You can download programs conveniently via USB cable, a USB flash drive, or the Ethernet network.
• Q: What is your shipping and return policy?
  A: We process shipments within 5 days and offer a straightforward 30-day return policy for your confidence.
