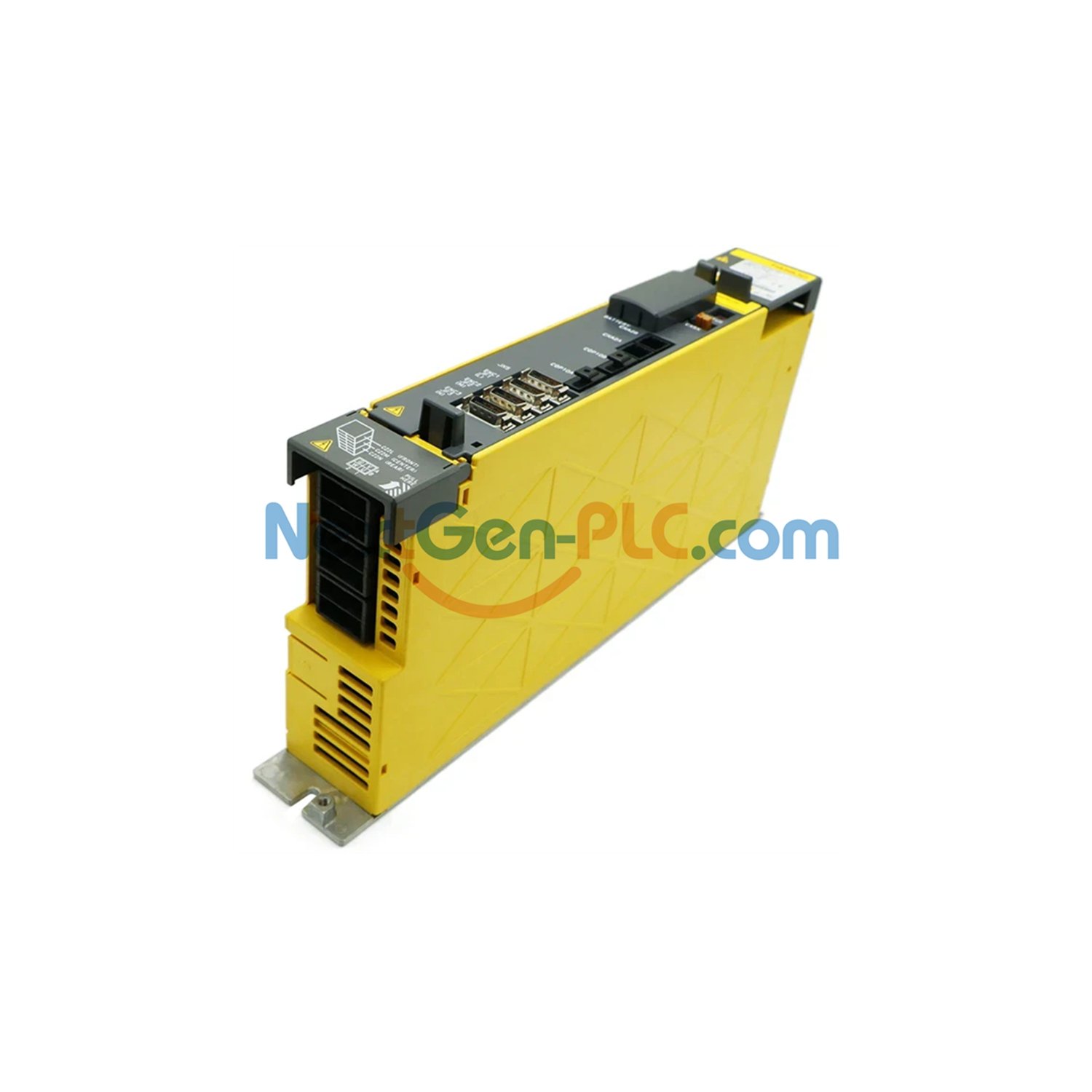

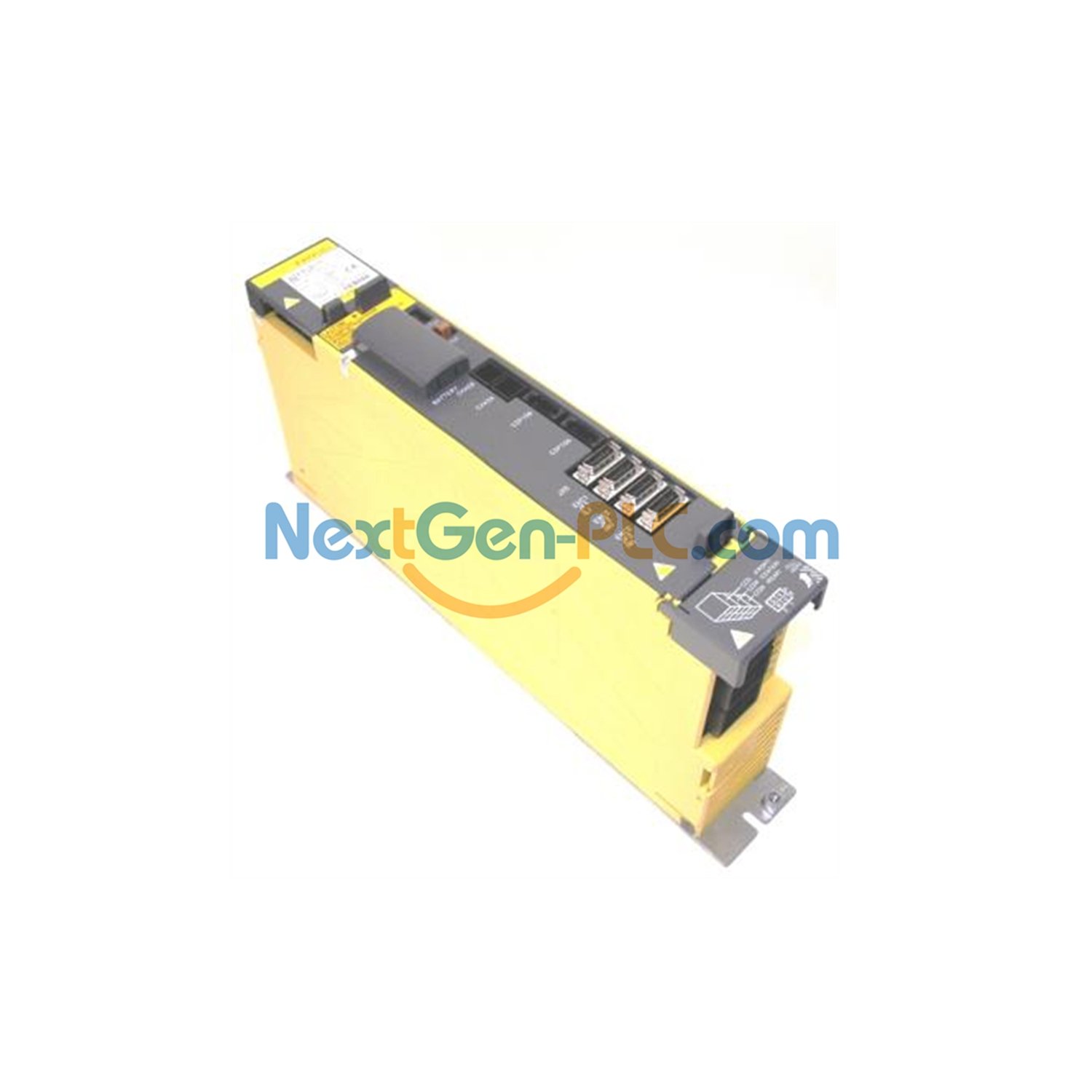

FANUC A06B-6124-H104 400V Servo Amplifier 9.1A

FANUC A06B-6124-H104 400V Servo Amplifier for Single-Axis CNC Control

Key Technical Specifications

• Brand & Model: Made by FANUC. The model is A06B-6124-H104. It is part of the A06B series.
• Power Input (Main): It uses three-phase 400‑480 VAC. Frequency is 50/60 Hz ±1 Hz.
• Power Input (Control): It needs single-phase 200‑240 VAC. Voltage tolerance is -15% to +10%.
• Output Current: Rated output is 9.1 A (rms). Peak current limit is 40 A.
• Axis Support: This is a 1-axis amplifier module.
• Power Failure: It guarantees 3 ms instantaneous power failure protection.
• Temperature Range: It works from 0°C to 55°C. Storage range is -20°C to 60°C.
• Humidity: It handles up to 90% RH. There must be no condensation.
• Vibration: Operational vibration stays below 0.5G.
• Weight: It weighs 5.44 kg (12.00 lbs).

Frequently Asked Questions (FAQ)

• Q: Is this a new original FANUC part?
  A: Yes, it is 100% new and original. The A06B-6124-H104 comes in factory packaging.
• Q: What power supplies does this module need?
  A: It needs three-phase 400‑480 VAC main power. It also needs single-phase 200‑240 VAC for control.
• Q: What is the output current?
  A: Rated output is 9.1 A (rms). Peak current can reach 40 A.
• Q: How many axes does it control?
  A: This is a 1-axis amplifier module. It controls one servo motor.
• Q: What is the return policy?
  A: We accept returns within 30 days. The item must be unused and in original box.
• Q: Where can I find a detailed manual?
  A: Use the download link below. It has full specs and wiring diagrams.
