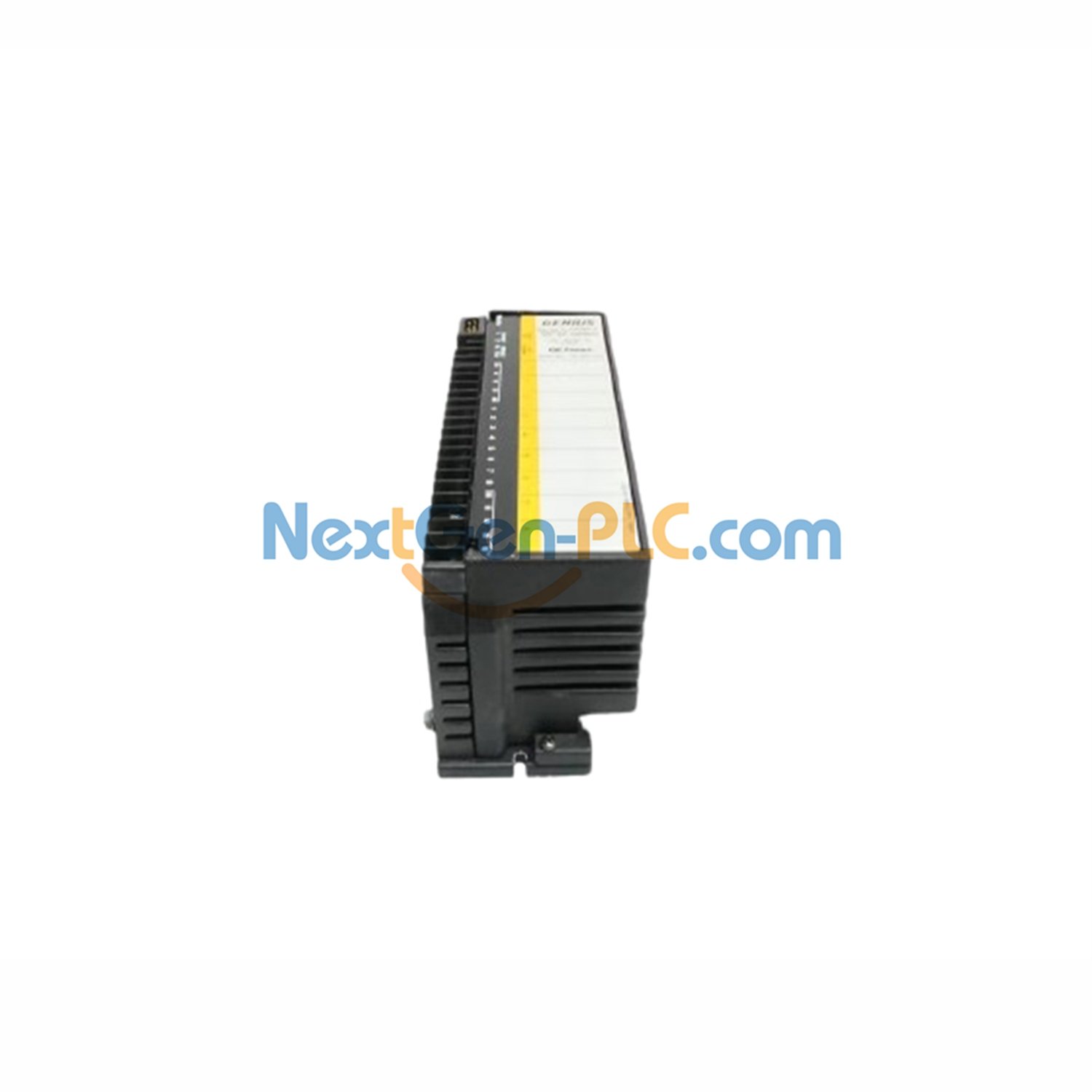

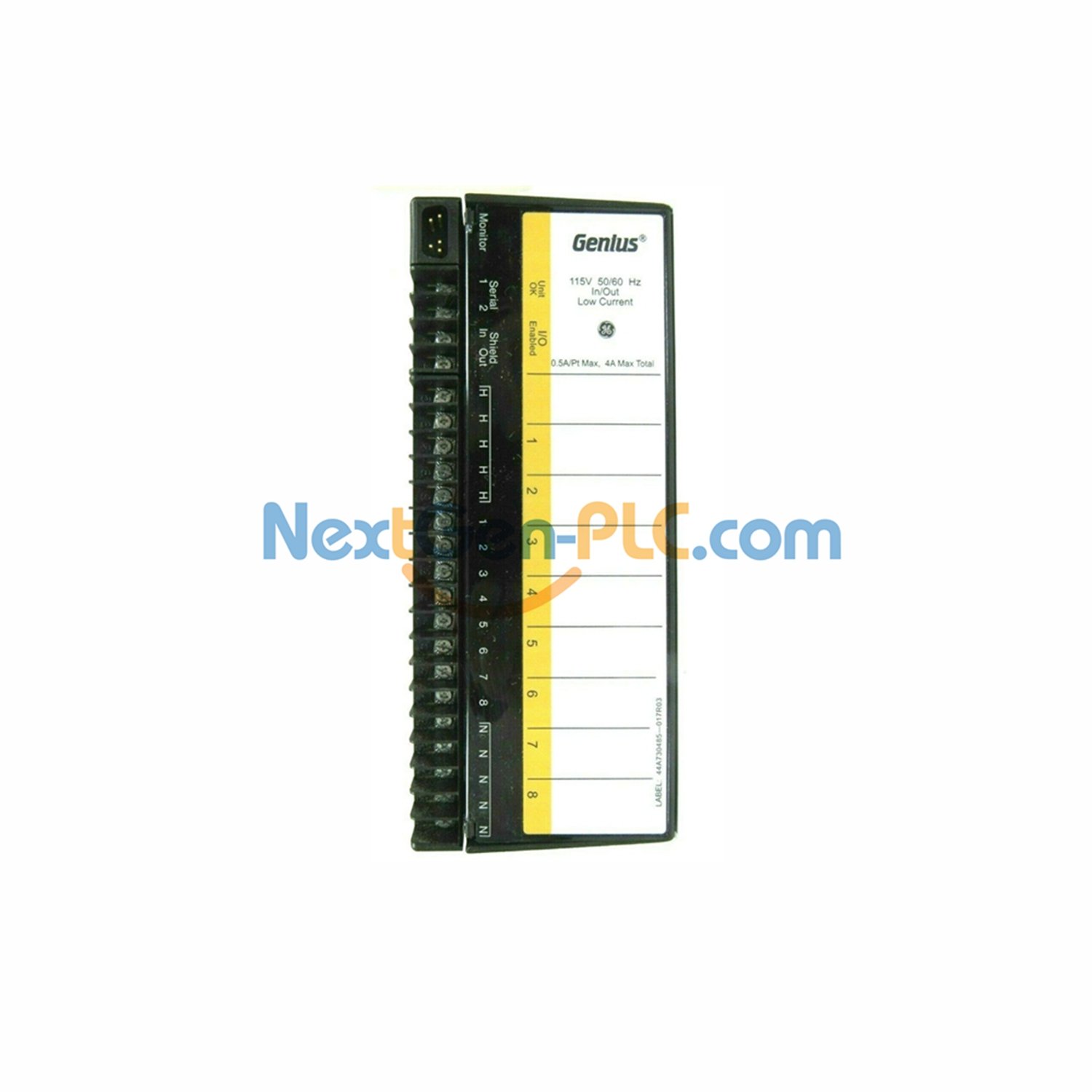

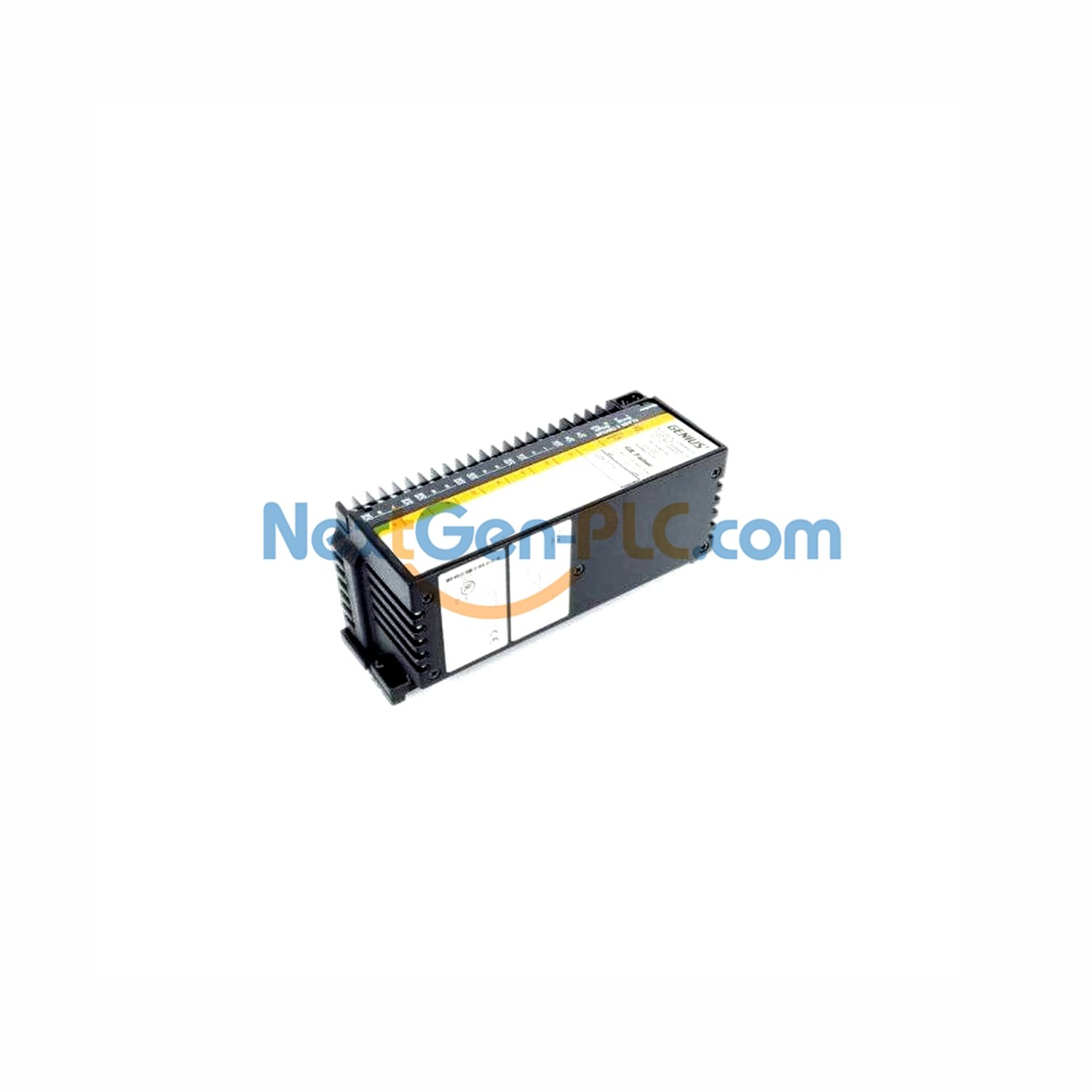

Electronics Assembly GE Fanuc IC660EBD100

GE Fanuc Genius I/O Electronic Assembly

Core Specifications & Product Details

• Brand:GE Fanuc
• Series: Genius I/O
• Model: IC660EBD100
• Product Type: Electronic Assembly (for BBD100 Base Block)
• Circuit Count: 8 configurable input/output circuits
• Nominal Voltage: 115 Volts AC

Electrical Ratings & Power Specifications

• The operating voltage range is 93 to 132 Volts AC.
• It requires a supply frequency of 47 to 63 Hz.
• Standby power consumption (I/O off) is 8.5 Watts.
• Heat dissipation is 16 Watts with 8 inputs active.
• Maximum heat dissipation is 43.5 Watts with 8 outputs at 2A.
• The power supply has a short dropout tolerance of 1 cycle (16.7ms @60Hz).
• Block-to-block isolation is rated for 1500 Volts.

Input & Output Circuit Functionality

• This 8-circuit assembly is fully configurable per point.
• Each circuit can be set as a discrete input or a discrete output.
• The entire block can be configured as input-only, output-only, or mixed I/O.
• When configured as an input, the minimum ON-state voltage is 60 V RMS.
• Input circuit leakage current is a low 1.5 milliamps maximum.
• The block transmits and receives 1 byte of data per bus scan.

Physical Specifications & Operating Environment

• The module weight is approximately 1.8 kg (4 pounds).
• Its dimensions are 8.83 x 3.50 x 3.94 inches.
• The operating temperature range is 0 to 60°C (32 to 140°F).
• The storage temperature range is -40 to 100°C (-40 to 212°F)

Frequently Asked Questions (FAQ)

• Q: Is the IC660EBD100 a new, genuine GE/GE Fanuc part?
  A: Yes, we supply only 100% new and genuine GE Fanuc products.
• Q: Is this a full block or just the electronic assembly?
  A: This is the IC660EBD100 Electronic Assembly. It requires a BBD100 series base block (EBD only) for mounting.
• Q: Can each point be configured separately?
  A: Yes, the 8 circuits are individually configurable as either an input or an output.
• Q: What does the LED on each circuit indicate?
  A: It shows input status (voltage present) or output status (CPU command) depending on the point’s configuration.
• Q: What is the isolation rating for safety?
  A: This assembly provides 1500 Volts of block-to-block isolation.
