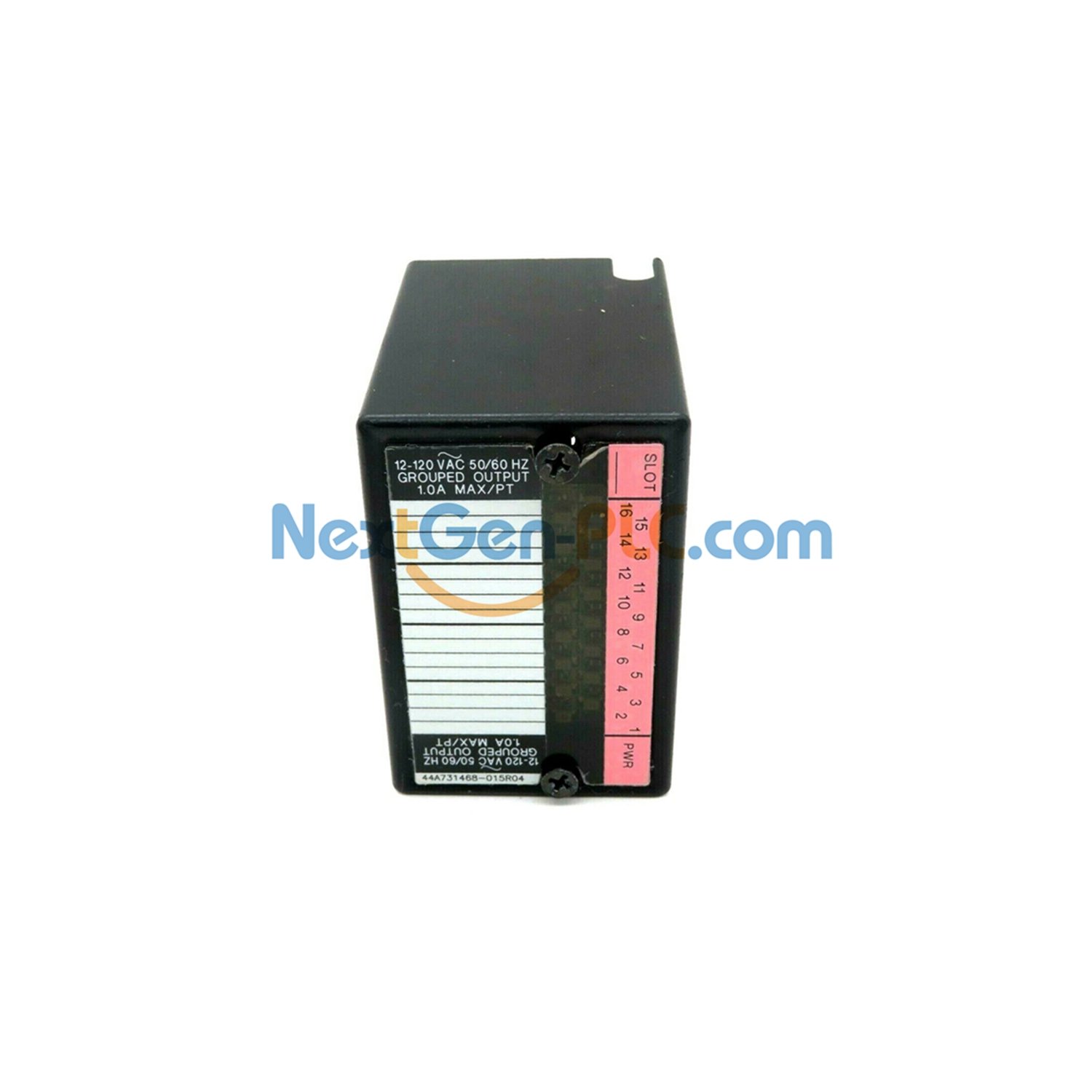

GE Fanuc IC670MDL330 AC Output Module
The IC670MDL330 is a 16-point AC output module. It works with 12-120V AC systems. This module can handle 1 amp per output. It is part of the GE Field Control family.
Key Features
Sixteen AC output points. Handles 1 amp per point. Works with 12-120V AC. Built-in fuse protection. LED status lights for each output.
Technical Specifications
| Specification | Value |
| Output Points | 16 |
| Voltage Range | 12-120V AC |
| Current per Point | 1 Amp |
| Total Module Current | 4 Amps max |
| Power from BIU | 275 mA |
Protection Features
Built-in 5A slow-blow fuse. RC snubber circuits on outputs. Fuse status LED indicator. Replaceable fuse design. Safe for industrial use.
Electrical Performance
Works from 10-132V AC range. Response time is ½ cycle. Maximum voltage drop 2V. Low leakage current under 2mA. Handles 47-63 Hz power.
Common Questions
How many outputs does it have?
The IC670MDL330 has sixteen output points.
What load can each output handle?
Each output can handle 1 amp at 120V AC.
What protection does it have?
It has a fuse and snubber circuits for safety.
What is the module’s total current?
The entire module can handle 4 amps maximum.
