Discrete Input Module GE Fanuc | IC670MDL643

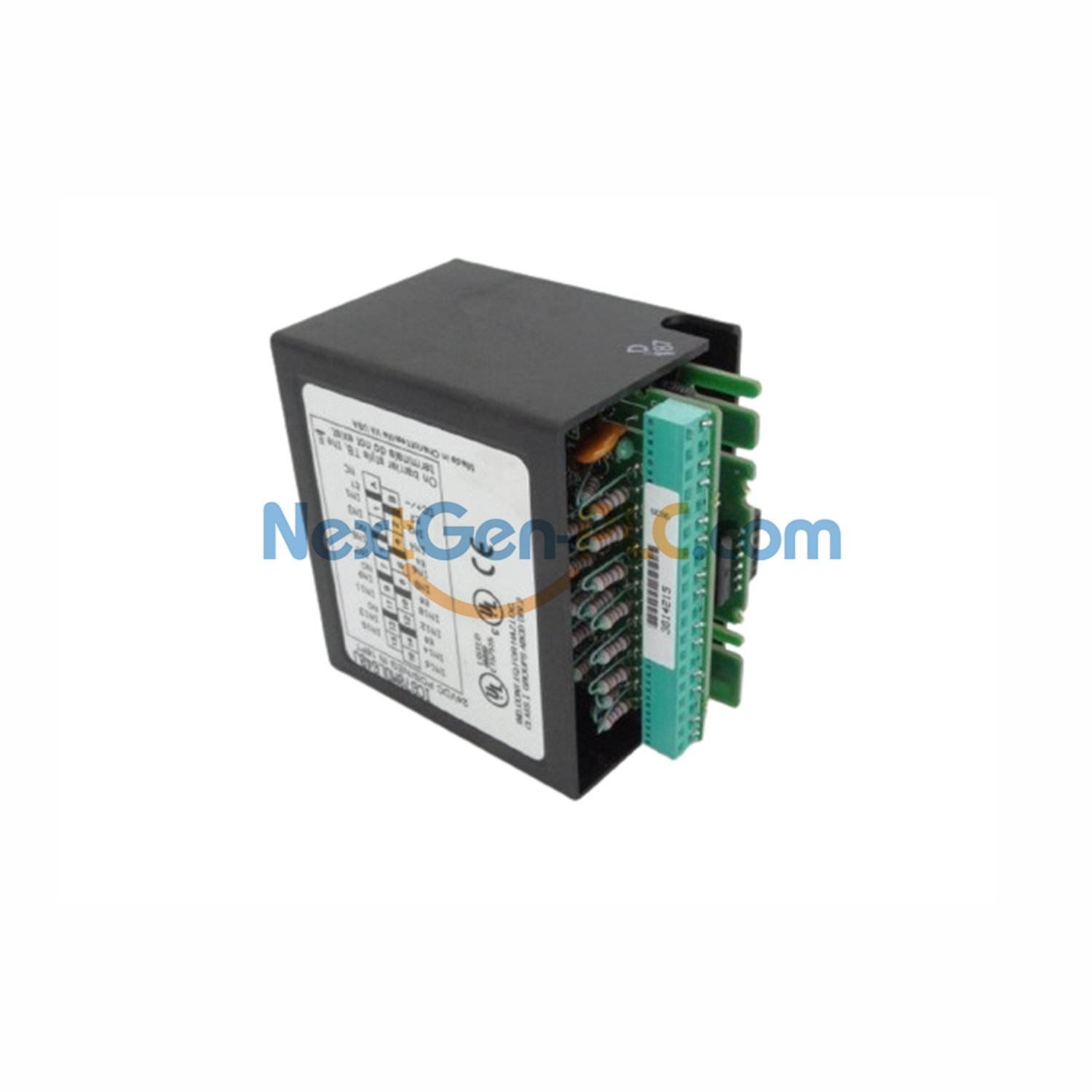

GE Fanuc IC670MDL643 DC Input Module

The IC670MDL643 is a low-voltage DC input module for precise control tasks. It handles both 5V and 12V DC systems and supports positive and negative logic. This 16-point module from GE Fanuc is designed for Field Control applications requiring accurate signal reading.

Key Features

• 16 discrete input points in 2 groups
• Dual voltage support (5V/12V DC)
• Both positive and negative logic operation
• Individual LED indicators for each point
• Group-to-group isolation for safety
• Compact design weighing only 2 pounds

Technical Specifications

• Part Number: IC670MDL643
• Input Points: 16 points, 2 groups
• Rated Voltage: 5/12V DC
• Voltage Range: 0-15V DC
• Input Current: 5 mA at 5V, 16 mA at 15V
• Input Impedance: 1K Ohms typical
• Power Draw: 80 mA from bus
• On Voltage (Positive): +3.6V to +15V
• On Voltage (Negative): -3.6V to -15V
• Isolation: 150V AC between groups

Electrical Characteristics

The module operates with low voltage signals. Positive logic requires +3.6V to +15V to activate. Negative logic needs -3.6V to -15V. The off-state range is 0 to ±1.6V for both logic types. The 1K Ohm impedance ensures stable operation.

Design & Operation

This module features clear LED indicators for every input point. The transparent top cover allows easy status monitoring. It uses capacitors, diodes, and resistors for signal filtering. The terminal block accepts #14 to #22 AWG wires for flexible installation.

Questions & Answers

How many input groups does this module have?

The IC670MDL643 has 2 isolated groups with 8 points each.

What voltages does it support?

It works with 5V and 12V DC systems from 0-15V DC range.

What is the input current requirement?

It draws 5 mA at 5V and 16 mA at 15V per point.

Does it have status indicators?

Yes, each point has its own LED plus a power indicator.

What wire sizes can I use?

The terminal block accepts AWG #14 to #22 wires.

Are these modules new and authentic?

We supply only new, genuine GE Fanuc modules with full documentation.

How quickly do you ship orders?

We process and ship within 5 business days via major carriers.
