CPU Module GE Fanuc IC698CPE020

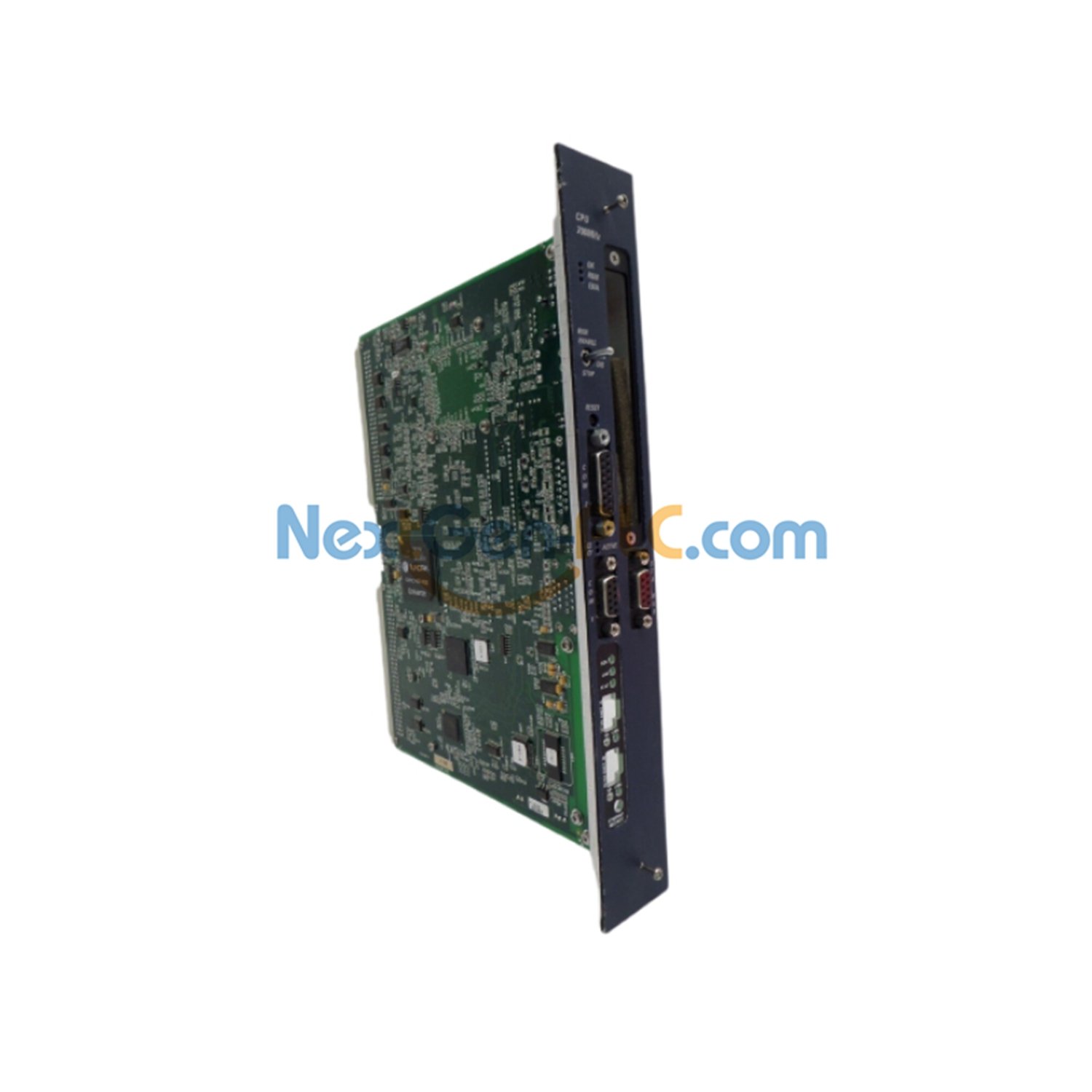

GE Fanuc IC698CPE020 PACSystem RX7i Rack CPU

The GE Fanuc IC698CPE020 is a rack-mounted CPU for the PACSystem RX7i. It runs user programs and controls I/O devices. It has a 700 MHz Pentium III processor with 10 MB RAM and 10 MB flash memory.

Key Features

• 700 MHz Pentium III processor
• 10 MB user RAM and 10 MB flash memory
• Supports 512 program blocks, max 128 KB each
• I/O memory: 32 Kbits discrete, 32 KWords analog
• Two Ethernet ports (10/100 Mbps)
• Three serial ports: RS232, RS485, and manager port
• Supports Modbus RTU, SNP, Serial I/O
• Floating point and Boolean operations
• Programming: Ladder, C, Structured Text, Function Block Diagram
• Up to 16 web server or FTP connections
• Operating voltage: 5–12 VDC, current: 4.3 A
• VME64 backplane for fast data transfer
• Rack slot: 1

Technical Specifications

• Brand: GE Fanuc
• Series: PACSystem RX7i
• Part Number: IC698CPE020
• CPU Memory: 10 MB RAM
• Flash Memory: 10 MB
• Program Blocks: 512, max 128 KB
• Ethernet Speed: 10/100 Mbps
• Protocols: EGD, SRTP, Modbus TCP/RTU, SNP, Serial I/O
• Programming Languages: Ladder, C, Structured Text, Function Block Diagram
• Ports: 2 Ethernet, 2 RS232/RJ45, 1 Station Manager
• Discrete I/O: 32 Kbits, Analog I/O: 32 KWords
• Voltage: 5–12 VDC
• Current: 4.3 A
